Magnitude |
3.3 |
| Date & Time (UTC) | 2017-12-13 07:09:08.0 |
| Date & Time (Local) | 1396/9/22 10:39:08.0 |

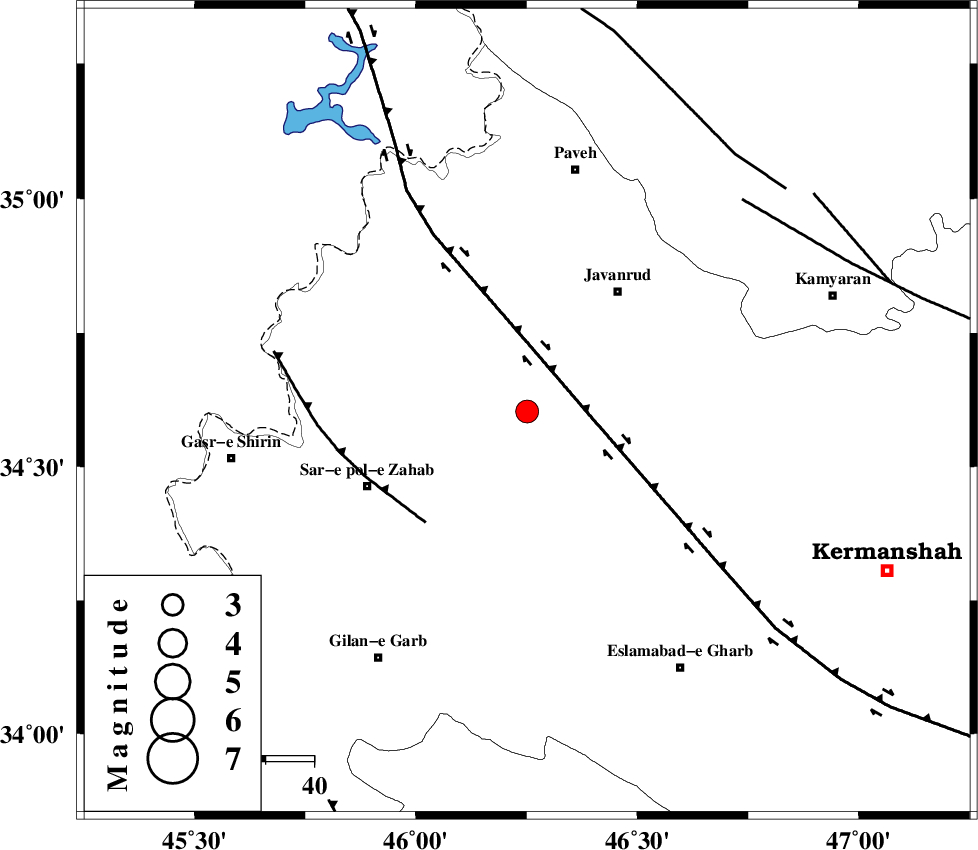

| Location | Lat:34.603 Lon: 46.251 |
| Region | Kermanshah Province, 31 km South-West of Javanrud |
Nearest Cities |
|
| 11 km of Mirabad, Kermanshah Province | |
| 13 km North of Zavleh olia, Kermanshah Province | |
| 16 km South of Qolqoleh, Kermanshah Province | |
| 22 km West of Dolatabad, Kermanshah Province | |
| 25 km South West of Sarukhan, Kermanshah Province | |
| Depth | 7 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 15 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 31 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 62 km | |
| Number of Phases | 12 |
| RMS | 0.5 |
| Number of Stations | 10 |
| Error in Latitude | 4.7 km |
| Error in Longitude | 8.6 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 124268 | IIEES | ASAO | N | 50.6 | 0.73 | 2017-12-13 07:11:04 | 2017-12-13 07:35:00 | n |
| 124269 | IIEES | GIDE | N | 27.5 | 0.8 | 2017-12-13 07:11:29 | 2017-12-13 07:35:00 | n |
| 124270 | IIEES | GIDE | E | 36.4 | 0.8 | 2017-12-13 07:11:36 | 2017-12-13 07:35:00 | n |
| 124271 | IIEES | GHVR | E | 37.3 | 0.64 | 2017-12-13 07:11:29 | 2017-12-13 07:35:00 | n |
| 124272 | IIEES | GHVR | N | 30 | 0.64 | 2017-12-13 07:11:32 | 2017-12-13 07:35:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-12-13 07:09:26 | -0.75 | y | 109 | 182 | |
| IIEES | ILBA | N | Sg | E | 2017-12-13 07:09:40 | 0.04 | y | 109 | 182 | |
| IIEES | SNGE | Z | Pg | E | 2017-12-13 07:09:27 | -0.76 | y | 114 | 61 | |
| IIEES | SNGE | N | Sg | E | 2017-12-13 07:09:42 | -0.2 | y | 114 | 61 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-13 07:09:57 | 0.91 | y | 318 | 43 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-13 07:10:02 | 2.41 | n | 4 | 346 | 90 |
| IIEES | GIDE | Z | Pn | E | 2017-12-13 07:10:08 | -0.17 | y | 419 | 51 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-13 07:10:13 | -0.16 | y | 459 | 90 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-13 07:10:14 | 0.28 | y | 467 | 71 | |
| IIEES | GRMI | Z | Pn | E | 2017-12-13 07:10:17 | 0.5 | y | 489 | 17 | |
| IIEES | MAKU | Z | Pn | E | 2017-12-13 07:10:24 | 0.35 | y | 545 | 346 | |
| IIEES | NASN | Z | Pn | E | 2017-12-13 07:10:36 | 0.67 | y | 640 | 106 |
