Magnitude |
3.5 |
| Date & Time (UTC) | 2017-12-14 08:38:39.0 |
| Date & Time (Local) | 1396/9/23 12:08:39.0 |

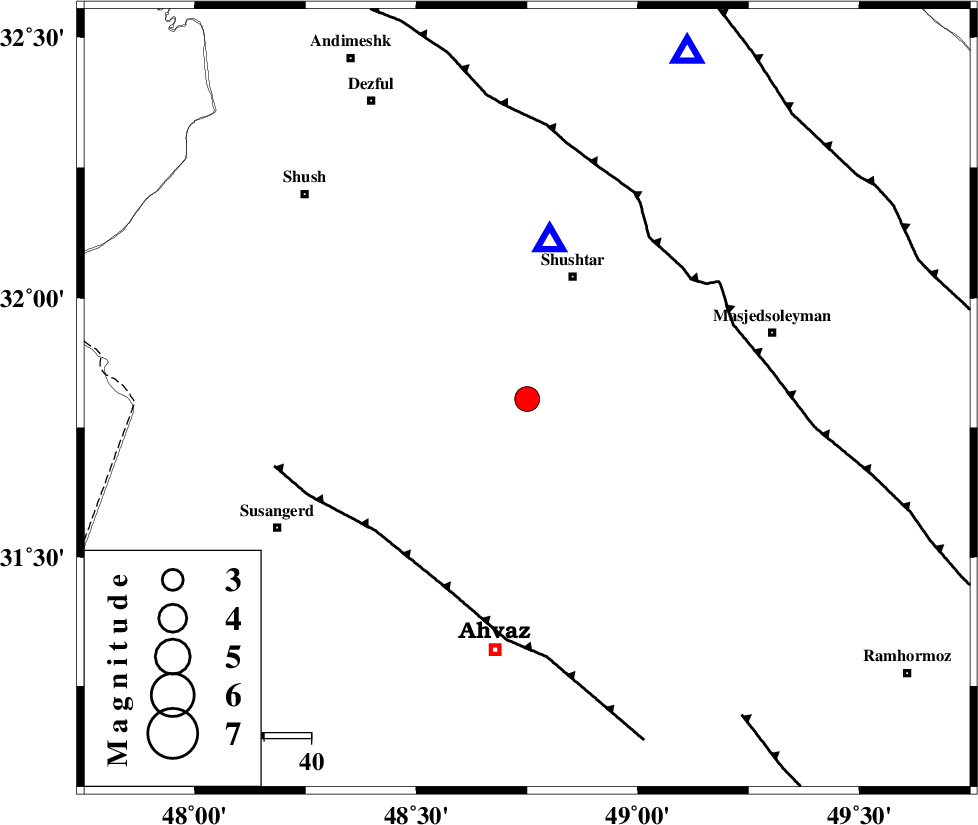

| Location | Lat:31.805 Lon: 48.75 |
| Region | Khoozestan Province, 28 km South-West of Shushtar |
Nearest Cities |
|
| 14 km West of Arabhasan, Khoozestan Province | |
| 18 km South of Mehdiabad, Khoozestan Province | |
| 24 km South of Sardarabad, Khoozestan Province | |
| 27 km North West of Mollasani, Khoozestan Province | |
| 28 km South West of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 43 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 82 km | |
| Number of Phases | 17 |
| RMS | 0.6 |
| Number of Stations | 15 |
| Error in Latitude | 5.6 km |
| Error in Longitude | 7.2 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 124518 | IIEES | KHMZ | E | 268.7 | 0.28 | 2017-12-14 08:39:55 | 2017-12-16 08:55:00 | n |
| 124519 | IIEES | ILBA | N | 85 | 0.54 | 2017-12-14 08:40:11 | 2017-12-16 08:55:00 | n |
| 124520 | IIEES | ASAO | E | 97.5 | 0.6 | 2017-12-14 08:40:18 | 2017-12-16 08:55:00 | n |
| 124521 | IIEES | ASAO | N | 110.4 | 0.5 | 2017-12-14 08:40:21 | 2017-12-16 08:55:00 | n |
| 124522 | IIEES | GHVR | E | 79.1 | 0.47 | 2017-12-14 08:40:34 | 2017-12-16 08:55:00 | n |
| 124523 | IIEES | GHVR | N | 93.4 | 0.47 | 2017-12-14 08:40:45 | 2017-12-16 08:55:00 | n |
| 124524 | IIEES | SNGE | N | 68 | 0.37 | 2017-12-14 08:40:19 | 2017-12-16 08:55:00 | n |
| 124525 | IIEES | SNGE | E | 60.7 | 0.55 | 2017-12-14 08:40:26 | 2017-12-16 08:55:00 | n |
| 124526 | IIEES | NASN | E | 51.7 | 0.67 | 2017-12-14 08:40:46 | 2017-12-16 08:55:00 | n |
| 124527 | IIEES | THKV | N | 23.3 | 0.38 | 2017-12-14 08:41:22 | 2017-12-16 08:55:00 | n |
| 124528 | IIEES | THKV | E | 26.4 | 0.5 | 2017-12-14 08:41:22 | 2017-12-16 08:55:00 | n |
| 124529 | IIEES | DAMV | E | 20 | 0.53 | 2017-12-14 08:41:29 | 2017-12-16 08:55:00 | n |
| 124530 | IIEES | GHIR | N | 41.6 | 0.43 | 2017-12-14 08:41:03 | 2017-12-16 08:55:00 | n |
| 124531 | IIEES | GHIR | E | 36.3 | 0.61 | 2017-12-14 08:41:25 | 2017-12-16 08:55:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-12-14 08:39:17 | 0.49 | y | 243 | 28 | |
| IIEES | KHMZ | E | Sg | E | 2017-12-14 08:39:46 | -0.98 | y | 243 | 28 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-14 08:39:25 | -0.35 | y | 312 | 311 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-14 08:39:27 | 0.48 | y | 327 | 21 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-14 08:39:34 | 1.1 | y | 377 | 37 | |
| IIEES | GHVR | E | S | E | 2017-12-14 08:40:13 | 0.06 | y | 377 | 37 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-14 08:39:34 | 0.1 | y | 387 | 341 | |
| IIEES | NASN | Z | Pn | E | 2017-12-14 08:39:37 | 0.78 | y | 398 | 73 | |
| IIEES | THKV | Z | Pn | E | 2017-12-14 08:39:48 | -0.23 | y | 497 | 23 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-14 08:39:49 | -0.52 | y | 505 | 25 | |
| IIEES | DAMV | Z | Pn | E | 2017-12-14 08:39:51 | -0.19 | y | 519 | 34 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-14 08:39:53 | 0.08 | y | 540 | 359 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-14 08:39:55 | 0.08 | y | 555 | 82 | |
| IIEES | GHIR | Z | Pn | E | 2017-12-14 08:39:55 | -1.15 | y | 565 | 133 | |
| IIEES | TABS | Z | Pn | E | 2017-12-14 08:40:27 | 0.42 | y | 810 | 73 | |
| IIEES | SHRO | Z | Pn | E | 2017-12-14 08:40:28 | 0.35 | y | 817 | 53 | |
| IIEES | BNDS | Z | Pn | E | 2017-12-14 08:40:33 | -1.13 | y | 869 | 122 |
