Magnitude |
2.6 |
| Date & Time (UTC) | 2017-12-16 00:30:15.1 |
| Date & Time (Local) | 1396/9/25 04:00:15.1 |

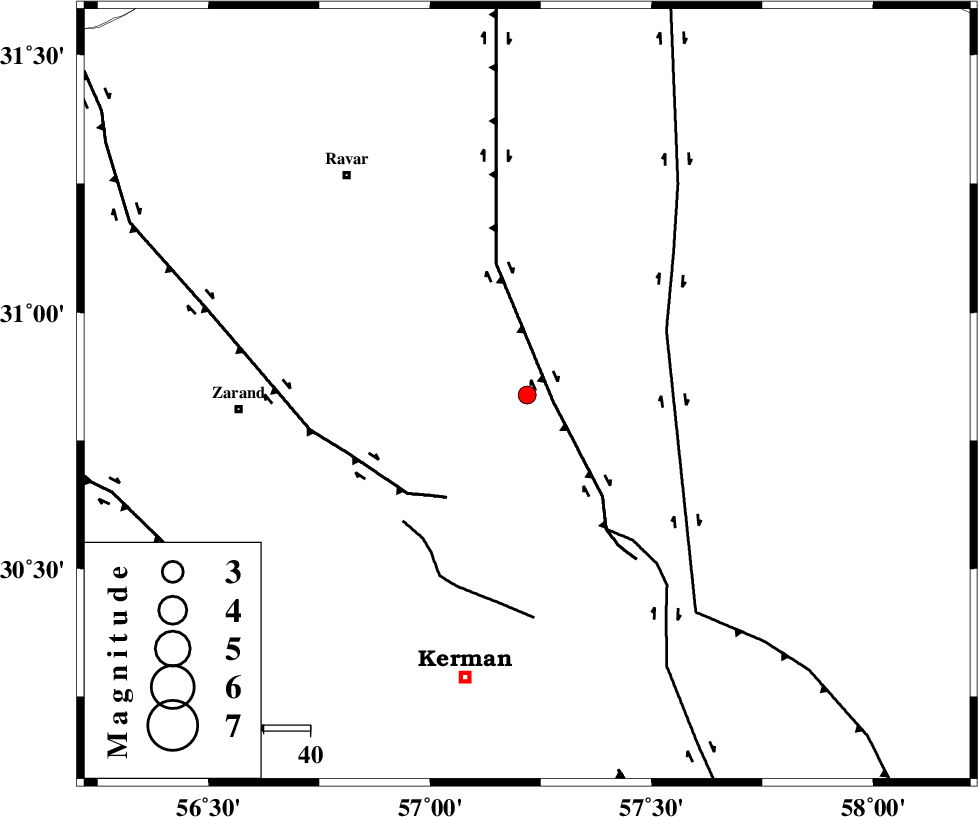

| Location | Lat:30.839 Lon: 57.219 |
| Region | Kerman Province, 62 km -East of Zarand |
Nearest Cities |
|
| 22 km North of Harjand, Kerman Province | |
| 25 km North East of Hejdak, Kerman Province | |
| 38 km North of Dehlulu, Kerman Province | |
| 40 km North East of Chatrud, Kerman Province | |
| 40 km North East of Hutak, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 6 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 28 km | |
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 33 km | |
| Number of Phases | 7 |
| RMS | 0.5 |
| Number of Stations | 5 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 4.3 km |
| Error in Depth | 10.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 124642 | IIEES | KRBR | E | 117.3 | 0.45 | 2017-12-16 00:30:48 | 2017-12-18 05:18:00 | n |
| 124643 | IIEES | BSRN | N | 41.9 | 0.39 | 2017-12-16 00:31:18 | 2017-12-18 05:18:00 | n |
| 124644 | IIEES | BSRN | E | 53.4 | 0.25 | 2017-12-16 00:31:19 | 2017-12-18 05:18:00 | n |
| 124645 | IIEES | YZKH | E | 19.4 | 0.42 | 2017-12-16 00:31:45 | 2017-12-18 05:18:00 | n |
| 124646 | IIEES | YZKH | N | 13.1 | 0.36 | 2017-12-16 00:31:51 | 2017-12-18 05:18:00 | n |
| 124647 | IIEES | TABS | N | 19.3 | 0.69 | 2017-12-16 00:31:56 | 2017-12-18 05:18:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-12-16 00:30:32 | -0.36 | y | 105 | 205 | |
| IIEES | BSRN | Z | Pn | E | 2017-12-16 00:30:50 | 0.08 | y | 220 | 55 | |
| IIEES | BSRN | E | Sg | E | 2017-12-16 00:31:17 | -0.43 | y | 220 | 55 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-16 00:31:01 | 0.95 | y | 303 | 305 | |
| IIEES | YZKH | N | Sg | E | 2017-12-16 00:31:39 | -0.58 | y | 303 | 305 | |
| IIEES | TABS | Z | Pn | E | 2017-12-16 00:31:01 | -0.03 | y | 312 | 358 | |
| IIEES | SHRT | Z | Pn | E | 2017-12-16 00:31:16 | 0.52 | y | 425 | 42 |
