Magnitude |
2.7 |
| Date & Time (UTC) | 2017-12-17 22:36:54.4 |
| Date & Time (Local) | 1396/9/27 02:06:54.4 |

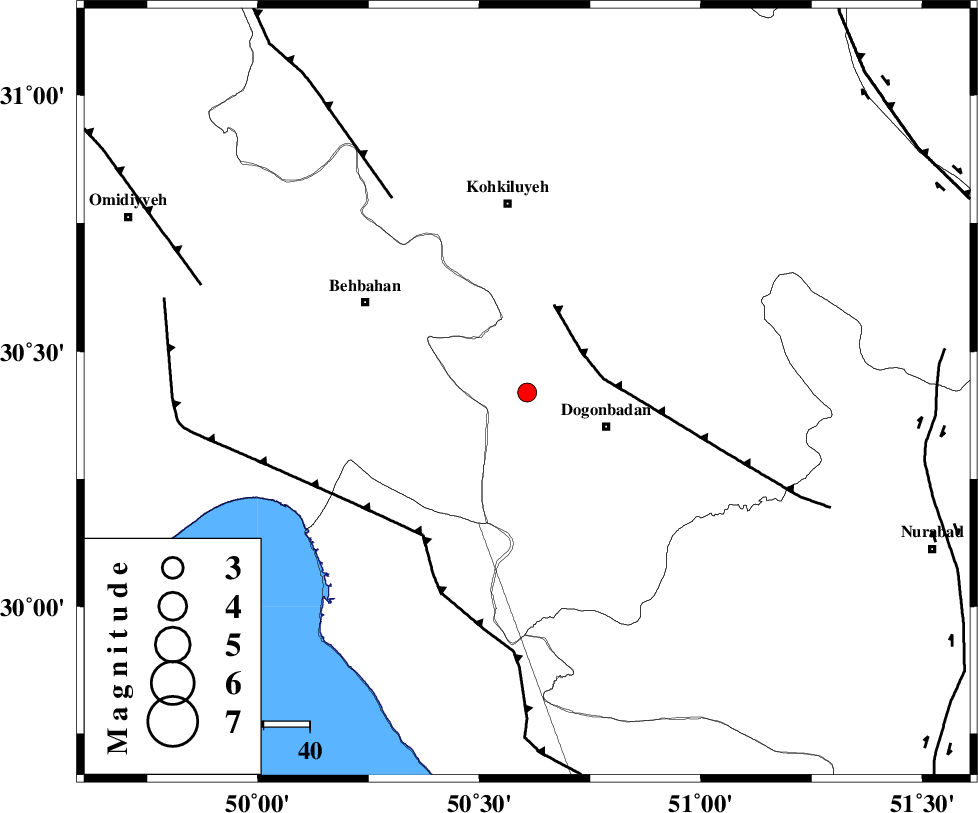

| Location | Lat:30.419 Lon: 50.608 |
| Region | Kohkiluieh va boyerahmad Province, 19 km -West of Dogonbadan |
Nearest Cities |
|
| 19 km North West of Dogonbadan, Kohkiluieh va boyerahmad Province | |
| 38 km South East of Mansuriyeh, Khoozestan Province | |
| 39 km North East of Sardasht, Khoozestan Province | |
| 40 km South East of Behbahan, Khoozestan Province | |
| 41 km South of Dehdasht, Kohkiluieh va boyerahmad Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MISHAN_F (Length: 76 km) , Distance to epicenter: 15 km | |
| ZFF3 (Length: 125 km) , Distance to epicenter: 38 km | |
| RAG_E_SEFID_F (Length: 84 km) , Distance to epicenter: 38 km | |
| Number of Phases | 10 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 124711 | IIEES | AHRM | N | 74.2 | 0.44 | 2017-12-17 22:37:55 | 2017-12-18 09:24:00 | n |
| 124712 | IIEES | AHRM | E | 57.5 | 0.33 | 2017-12-17 22:37:55 | 2017-12-18 09:24:00 | n |
| 124713 | IIEES | GHIR | E | 20.4 | 0.49 | 2017-12-17 22:38:36 | 2017-12-18 09:24:00 | n |
| 124714 | IIEES | GHIR | N | 17.4 | 0.49 | 2017-12-17 22:38:39 | 2017-12-18 09:24:00 | n |
| 124715 | IIEES | YZKH | N | 5.9 | 0.31 | 2017-12-17 22:38:42 | 2017-12-18 09:24:00 | n |
| 124716 | IIEES | YZKH | E | 4.3 | 0.25 | 2017-12-17 22:38:47 | 2017-12-18 09:24:00 | n |
| 124717 | IIEES | GHVR | N | 6.5 | 0.35 | 2017-12-17 22:38:57 | 2017-12-18 09:24:00 | n |
| 124718 | IIEES | GHVR | E | 6.1 | 0.53 | 2017-12-17 22:39:06 | 2017-12-18 09:24:00 | n |
| 124719 | IIEES | ASAO | E | 4.6 | 0.47 | 2017-12-17 22:38:54 | 2017-12-18 09:24:00 | n |
| 124720 | IIEES | ASAO | N | 6.1 | 0.75 | 2017-12-17 22:39:18 | 2017-12-18 09:24:00 | n |
| 124721 | IIEES | ILBA | N | 3.5 | 0.57 | 2017-12-17 22:39:30 | 2017-12-18 09:24:00 | n |
| 124722 | IIEES | DAMV | E | 4.9 | 0.28 | 2017-12-17 22:39:17 | 2017-12-18 09:24:00 | n |
| 124723 | IIEES | DAMV | N | 4.4 | 0.37 | 2017-12-17 22:39:18 | 2017-12-18 09:24:00 | n |
| 124724 | IIEES | SNGE | N | 2.6 | 0.31 | 2017-12-17 22:39:25 | 2017-12-18 09:24:00 | n |
| 124725 | IIEES | SNGE | E | 2.6 | 0.49 | 2017-12-17 22:39:31 | 2017-12-18 09:24:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | N | Pg | E | 2017-12-17 22:37:24 | 0 | y | 185 | 159 | |
| IIEES | GHIR | Z | Pn | E | 2017-12-17 22:37:43 | 0.13 | y | 331 | 135 | |
| IIEES | NASN | Z | Pn | E | 2017-12-17 22:37:43 | 0.05 | y | 336 | 38 | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-17 22:37:48 | 0.07 | y | 373 | 351 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-17 22:37:55 | -0.41 | y | 437 | 59 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-17 22:37:58 | 0.07 | y | 454 | 7 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-17 22:37:59 | 0.15 | y | 461 | 353 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-17 22:38:09 | -0.24 | y | 547 | 312 | |
| IIEES | DAMV | Z | Pn | E | 2017-12-17 22:38:15 | 0.26 | y | 592 | 12 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-17 22:38:16 | -0.12 | y | 602 | 330 |
