Magnitude |
4.4 |
| Date & Time (UTC) | 2017-12-20 20:22:08.6 |
| Date & Time (Local) | 1396/9/29 23:52:08.6 |

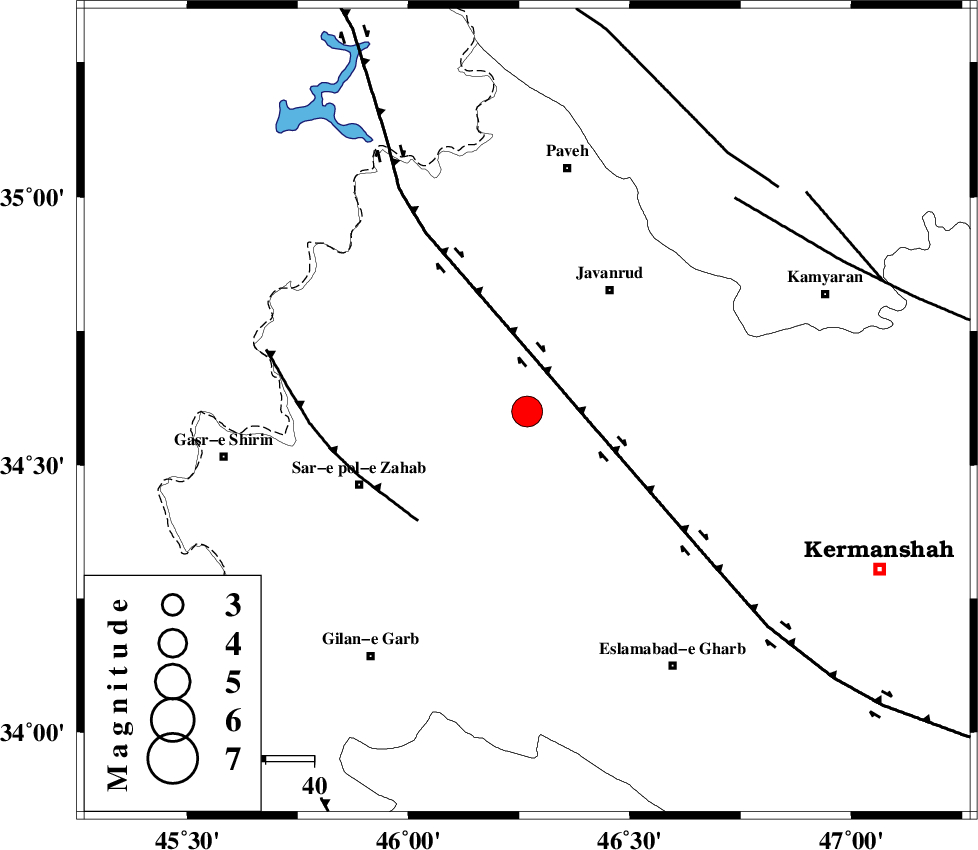

| Location | Lat:34.6 Lon: 46.268 |
| Region | Kermanshah Province, 30 km South-West of Javanrud |
Nearest Cities |
|
| 10 km of Mirabad, Kermanshah Province | |
| 12 km North of Zavleh olia, Kermanshah Province | |
| 17 km South East of Qolqoleh, Kermanshah Province | |
| 21 km West of Dolatabad, Kermanshah Province | |
| 24 km South West of Sarukhan, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| HZF4 (Length: 492 km) , Distance to epicenter: 13 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 32 km | |
| SARTAKHT_F (Length: 78 km) , Distance to epicenter: 62 km | |
| Number of Phases | 20 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | 3.9 km |
| Error in Longitude | 5.3 km |
| Error in Depth | 7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 125103 | IIEES | SNGE | E | 7626.4 | 0.51 | 2017-12-20 20:22:47 | 2017-12-20 09:37:00 | n |
| 125104 | IIEES | SNGE | N | 10628.9 | 0.58 | 2017-12-20 20:22:47 | 2017-12-20 09:37:00 | n |
| 125105 | IIEES | ASAO | N | 650.3 | 0.54 | 2017-12-20 20:23:55 | 2017-12-20 09:37:00 | n |
| 125106 | IIEES | ASAO | E | 752.9 | 0.43 | 2017-12-20 20:24:03 | 2017-12-20 09:37:00 | n |
| 125107 | IIEES | KHMZ | N | 628.4 | 0.55 | 2017-12-20 20:24:11 | 2017-12-20 09:37:00 | n |
| 125108 | IIEES | KHMZ | E | 500.6 | 0.46 | 2017-12-20 20:24:13 | 2017-12-20 09:37:00 | n |
| 125109 | IIEES | GIDE | N | 298.1 | 0.69 | 2017-12-20 20:24:14 | 2017-12-20 09:37:00 | n |
| 125110 | IIEES | GIDE | E | 362.8 | 0.92 | 2017-12-20 20:24:19 | 2017-12-20 09:37:00 | n |
| 125111 | IIEES | THKV | N | 428.5 | 0.86 | 2017-12-20 20:24:30 | 2017-12-20 09:37:00 | n |
| 125112 | IIEES | GHVR | E | 550.8 | 0.72 | 2017-12-20 20:24:37 | 2017-12-20 09:37:00 | n |
| 125113 | IIEES | GHVR | N | 536.5 | 0.8 | 2017-12-20 20:24:44 | 2017-12-20 09:37:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2017-12-20 20:22:26 | -0.18 | y | 108 | 183 | |
| IIEES | SNGE | Z | Pg | E | 2017-12-20 20:22:26 | -1.1 | y | 113 | 61 | |
| IIEES | SNGE | N | Sg | E | 2017-12-20 20:22:41 | -0.18 | y | 113 | 61 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-20 20:22:56 | 0.97 | y | 317 | 43 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-20 20:22:59 | 0.43 | y | 345 | 90 | |
| IIEES | ASAO | N | Sg | E | 2017-12-20 20:23:45 | 0.31 | y | 345 | 90 | |
| IIEES | KHMZ | Z | Pn | E | 2017-12-20 20:23:00 | 0.07 | y | 354 | 105 | |
| IIEES | GIDE | Z | Pn | E | 2017-12-20 20:23:08 | 0.12 | y | 418 | 51 | |
| IIEES | THKV | Z | Pn | E | 2017-12-20 20:23:11 | 0.05 | y | 444 | 70 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-20 20:23:13 | -0.07 | y | 457 | 90 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-20 20:23:14 | -0.16 | y | 465 | 70 | |
| IIEES | GRMI | Z | Pn | E | 2017-12-20 20:23:16 | -0.38 | y | 489 | 17 | |
| IIEES | DAMV | Z | Pn | E | 2017-12-20 20:23:22 | 0 | y | 532 | 76 | |
| IIEES | MAKU | Z | Pn | E | 2017-12-20 20:23:24 | 0.2 | y | 546 | 346 | |
| IIEES | NASN | Z | Pn | E | 2017-12-20 20:23:36 | 0.14 | y | 638 | 106 | |
| IIEES | AHRM | N | Pn | E | 2017-12-20 20:23:54 | -0.35 | y | 794 | 142 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-20 20:23:57 | 0.05 | y | 811 | 105 | |
| IIEES | SHRO | Z | Pn | E | 2017-12-20 20:24:08 | 0.64 | y | 900 | 77 | |
| IIEES | GHIR | Z | Pn | E | 2017-12-20 20:24:11 | -2.13 | n | 4 | 947 | 136 |
| IIEES | TABS | Z | Pn | E | 2017-12-20 20:24:20 | -0.45 | y | 1006 | 93 |
