Magnitude |
3.9 |
| Date & Time (UTC) | 2017-12-30 05:32:09.3 |
| Date & Time (Local) | 1396/10/9 09:02:09.3 |

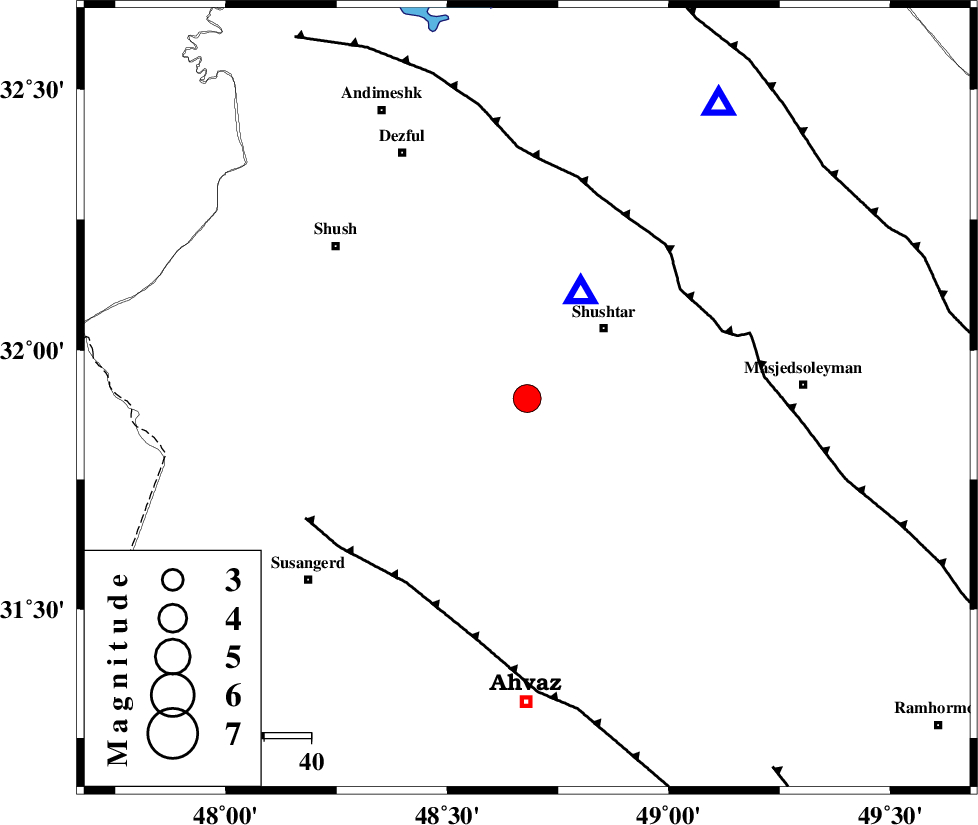

| Location | Lat:31.906 Lon: 48.68 |
| Region | Khoozestan Province, 22 km South-West of Shushtar |
Nearest Cities |
|
| 16 km West of Mehdiabad, Khoozestan Province | |
| 16 km South West of Sardarabad, Khoozestan Province | |
| 22 km North West of Arabhasan, Khoozestan Province | |
| 22 km South West of Shushtar, Khoozestan Province | |
| 30 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 40 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 47 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 80 km | |
| Number of Phases | 17 |
| RMS | 0.7 |
| Number of Stations | 16 |
| Error in Latitude | 7.6 km |
| Error in Longitude | 5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 125670 | IIEES | ILBA | N | 250.2 | 0.73 | 2017-12-30 05:33:50 | 2017-12-30 06:42:00 | n |
| 125671 | IIEES | ASAO | N | 321.1 | 0.79 | 2017-12-30 05:33:52 | 2017-12-30 06:42:00 | n |
| 125672 | IIEES | ASAO | E | 182.1 | 0.59 | 2017-12-30 05:33:57 | 2017-12-30 06:42:00 | n |
| 125673 | IIEES | GHVR | N | 132.5 | 0.5 | 2017-12-30 05:34:01 | 2017-12-30 06:42:00 | n |
| 125674 | IIEES | GHVR | E | 142 | 0.7 | 2017-12-30 05:34:07 | 2017-12-30 06:42:00 | n |
| 125675 | IIEES | AHRM | N | 439.5 | 0.58 | 2017-12-30 05:34:34 | 2017-12-30 06:42:00 | n |
| 125676 | IIEES | AHRM | E | 368 | 0.68 | 2017-12-30 05:34:35 | 2017-12-30 06:42:00 | n |
| 125677 | IIEES | DAMV | E | 44 | 0.84 | 2017-12-30 05:34:51 | 2017-12-30 06:42:00 | n |
| 125678 | IIEES | GIDE | N | 38.5 | 0.62 | 2017-12-30 05:35:07 | 2017-12-30 06:42:00 | n |
| 125679 | IIEES | GIDE | E | 33.5 | 0.54 | 2017-12-30 05:35:11 | 2017-12-30 06:42:00 | n |
| 125680 | IIEES | GHIR | N | 57.9 | 0.44 | 2017-12-30 05:35:17 | 2017-12-30 06:42:00 | n |
| 125681 | IIEES | GHIR | E | 69.5 | 0.59 | 2017-12-30 05:35:31 | 2017-12-30 06:42:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-12-30 05:32:46 | -0.1 | y | 236 | 30 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-30 05:32:53 | -0.79 | y | 300 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-30 05:32:57 | 0.37 | y | 319 | 23 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-30 05:33:04 | 1.07 | y | 372 | 39 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-30 05:33:03 | 0.34 | y | 374 | 341 | |
| IIEES | AHRM | Z | Pn | E | 2017-12-30 05:33:09 | 0.72 | y | 421 | 143 | |
| IIEES | CHTH | Z | Pn | E | 2017-12-30 05:33:18 | -0.27 | y | 498 | 26 | |
| IIEES | DAMV | Z | Pn | E | 2017-12-30 05:33:20 | -0.59 | y | 513 | 36 | |
| IIEES | ZNJK | Z | Pn | E | 2017-12-30 05:33:22 | 0 | y | 529 | 0 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-30 05:33:25 | -1.31 | y | 560 | 83 | |
| IIEES | GIDE | Z | Pn | E | 2017-12-30 05:33:28 | 0.99 | y | 568 | 11 | |
| IIEES | GHIR | Z | Pn | E | 2017-12-30 05:33:25 | -3.16 | n | 4 | 577 | 133 |
| IIEES | GRMI | Z | Pn | E | 2017-12-30 05:33:52 | 0.25 | y | 769 | 355 | |
| IIEES | TABS | Z | Pn | E | 2017-12-30 05:33:57 | -0.23 | y | 814 | 74 | |
| IIEES | SHRO | Z | Pn | E | 2017-12-30 05:33:56 | -1.62 | y | 816 | 54 | |
| IIEES | BNDS | Z | Pn | E | 2017-12-30 05:34:01 | -4.59 | n | 4 | 880 | 123 |
| IIEES | BSRN | Z | Pn | E | 2017-12-30 05:34:20 | 0.39 | y | 987 | 87 |
