Magnitude |
2.8 |
| Date & Time (UTC) | 2017-12-31 10:31:52.3 |
| Date & Time (Local) | 1396/10/10 14:01:52.3 |

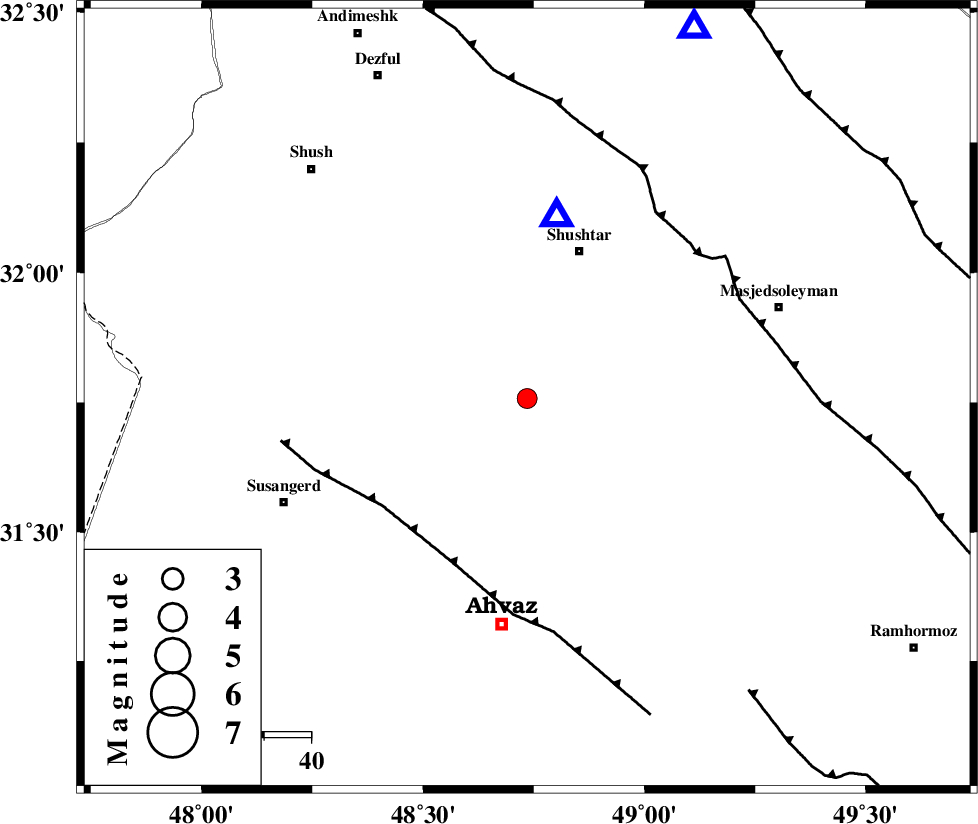

| Location | Lat:31.758 Lon: 48.735 |
| Region | Khoozestan Province, 33 km South-West of Shushtar |
Nearest Cities |
|
| 17 km West of Arabhasan, Khoozestan Province | |
| 23 km South West of Mehdiabad, Khoozestan Province | |
| 23 km North West of Mollasani, Khoozestan Province | |
| 26 km North West of Talieh, Khoozestan Province | |
| 29 km South of Sardarabad, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 39 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 48 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 79 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 5.5 km |
| Error in Longitude | 1.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 125854 | IIEES | KHMZ | E | 35.8 | 0.7 | 2017-12-31 10:33:07 | 2018-01-01 11:25:00 | n |
| 125855 | IIEES | ILBA | N | 32.5 | 0.6 | 2017-12-31 10:33:35 | 2018-01-01 11:25:00 | n |
| 125856 | IIEES | ASAO | E | 22 | 0.56 | 2017-12-31 10:33:31 | 2018-01-01 11:25:00 | n |
| 125857 | IIEES | ASAO | N | 18.8 | 0.56 | 2017-12-31 10:33:38 | 2018-01-01 11:25:00 | n |
| 125858 | IIEES | SNGE | N | 19.1 | 0.54 | 2017-12-31 10:33:33 | 2018-01-01 11:25:00 | n |
| 125859 | IIEES | SNGE | E | 14.2 | 0.66 | 2017-12-31 10:33:47 | 2018-01-01 11:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-12-31 10:32:31 | 0.09 | y | 248 | 27 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-31 10:32:39 | 0.08 | y | 315 | 312 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-31 10:32:41 | 0.02 | y | 332 | 21 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-31 10:32:48 | -0.17 | y | 392 | 341 | |
| IIEES | NASN | Z | Pn | E | 2017-12-31 10:32:49 | -0.05 | y | 401 | 72 |
