Magnitude |
2.2 |
| Date & Time (UTC) | 2018-01-01 17:14:58.3 |
| Date & Time (Local) | 1396/10/11 20:44:58.3 |

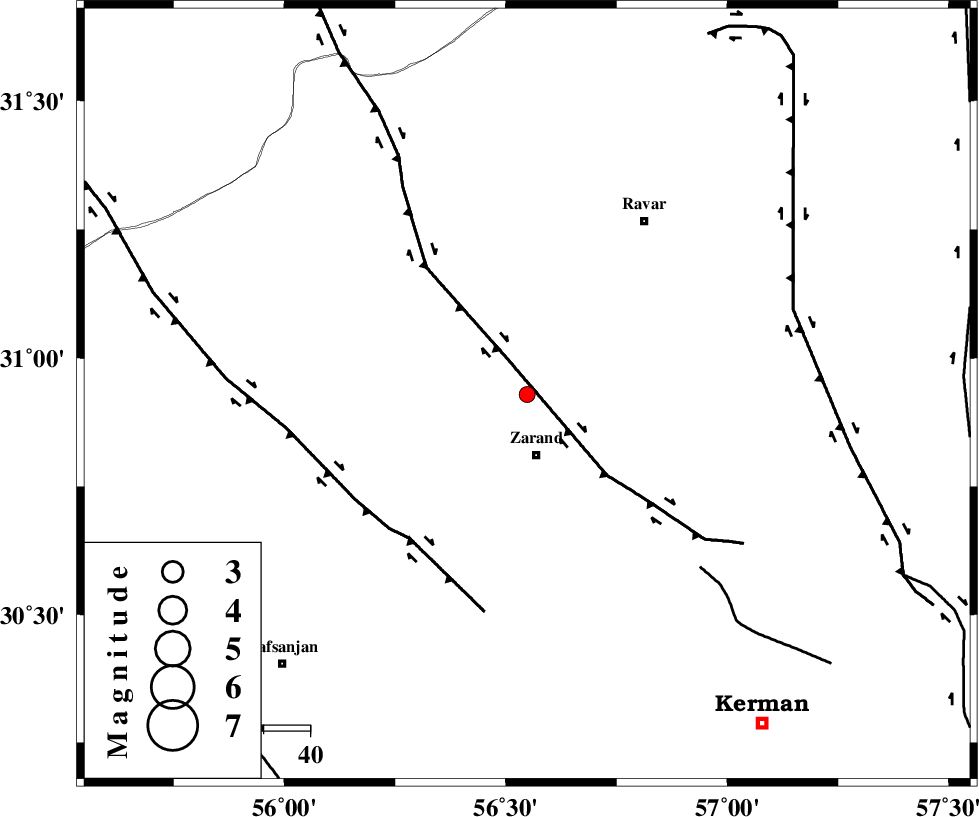

| Location | Lat:30.929 Lon: 56.548 |
| Region | Kerman Province, 13 km North of Zarand |
Nearest Cities |
|
| 12 km of Ahmadi, Kerman Province | |
| 13 km North of Zarand, Kerman Province | |
| 15 km South of Dasht-e khak, Kerman Province | |
| 16 km North of Mohammadabad, Kerman Province | |
| 24 km North of Bahaabad, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 10 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 40 km | |
| CHATRUD_F (Length: 37 km) , Distance to epicenter: 53 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 7.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 125945 | IIEES | KRBR | N | 62.1 | 0.13 | 2018-01-01 17:15:31 | 2018-01-02 09:08:00 | n |
| 125946 | IIEES | KRBR | E | 55 | 0.23 | 2018-01-01 17:15:31 | 2018-01-02 09:08:00 | n |
| 125947 | IIEES | YZKH | N | 14 | 0.3 | 2018-01-01 17:16:12 | 2018-01-02 09:08:00 | n |
| 125948 | IIEES | YZKH | E | 13.3 | 0.34 | 2018-01-01 17:16:17 | 2018-01-02 09:08:00 | n |
| 125949 | IIEES | BSRN | N | 10.2 | 0.76 | 2018-01-01 17:16:18 | 2018-01-02 09:08:00 | n |
| 125950 | IIEES | BSRN | E | 8.1 | 0.3 | 2018-01-01 17:16:23 | 2018-01-02 09:08:00 | n |
| 125951 | IIEES | TABS | N | 5.3 | 0.68 | 2018-01-01 17:16:32 | 2018-01-02 09:08:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-01-01 17:15:16 | -0.13 | y | 107 | 169 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-01 17:15:37 | 0.65 | y | 246 | 312 | |
| IIEES | YZKH | N | Sg | E | 2018-01-01 17:16:07 | -0.45 | y | 246 | 312 | |
| IIEES | BSRN | Z | Pn | E | 2018-01-01 17:15:39 | -0.18 | y | 271 | 64 | |
| IIEES | BSRN | N | Sg | E | 2018-01-01 17:16:14 | -0.04 | y | 271 | 64 | |
| IIEES | TABS | Z | Pn | E | 2018-01-01 17:15:44 | 0.16 | y | 306 | 10 |
