eventspec – IIEES Earthquake Process Program

Magnitude	2.8
Date & Time (UTC)	2017-12-25 08:29:03.5
Date & Time (Local)	1396/10/4 11:59:03.5

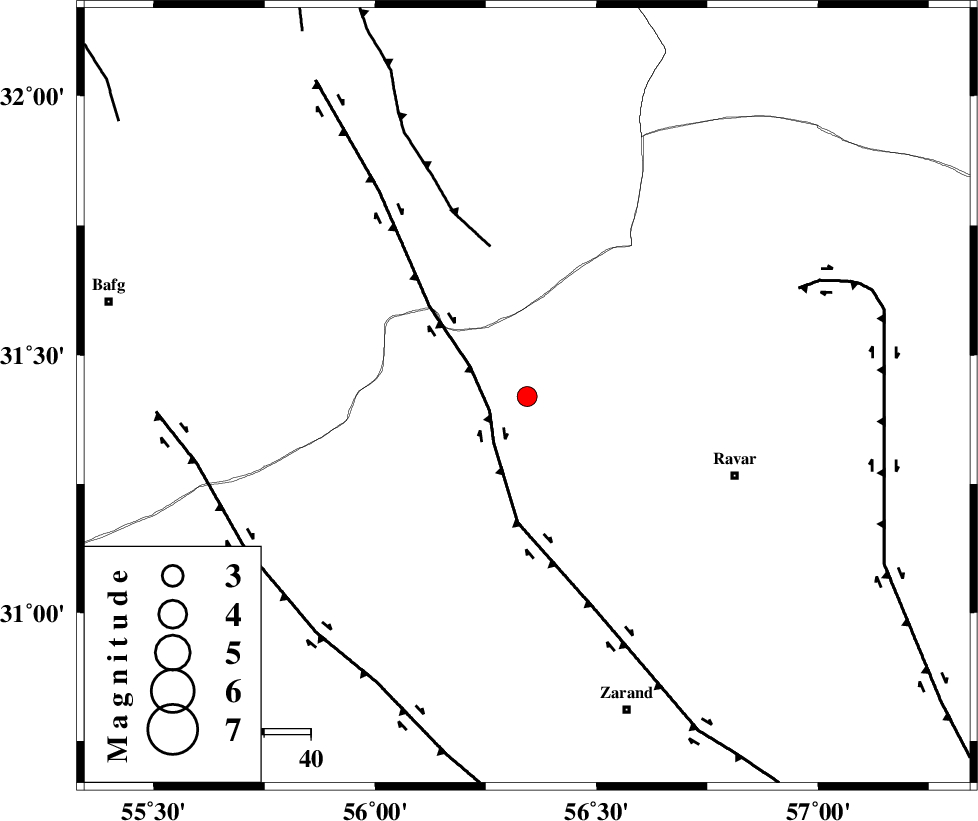

Location	Lat:31.419 Lon: 56.343
Region	Kerman Province, 48 km North-West of Ravar
Nearest Cities
	5 km North of Kuhbanan, Kerman Province
	8 km North of Jor, Kerman Province
	30 km South East of Asfih, Yazd Province
	31 km North of Toghroljerd, Kerman Province
	34 km East of Basab, Yazd Province
Depth	14 km
Agency
Faults within 150 km:
	KUHBANAN_F (Length: 189 km) , Distance to epicenter: 9 km
	JAFARABAD_F (Length: 60 km) , Distance to epicenter: 33 km
	LAKARKUH_F (Length: 138 km) , Distance to epicenter: 63 km
Number of Phases	7
RMS	0
Number of Stations	5
Error in Latitude	1.3 km
Error in Longitude	0.9 km
Error in Depth	2.3 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
126302	IIEES	KRBR	E	122.6	0.32	2017-12-25 08:29:57	2018-01-07 09:29:00	n
126303	IIEES	KRBR	N	111.4	0.21	2017-12-25 08:29:57	2018-01-07 09:29:00	n
126304	IIEES	YZKH	N	98.9	0.37	2017-12-25 08:30:04	2018-01-07 09:29:00	n
126305	IIEES	YZKH	E	103.3	0.37	2017-12-25 08:30:08	2018-01-07 09:29:00	n
126306	IIEES	TABS	N	33.2	0.56	2017-12-25 08:30:25	2018-01-07 09:29:00	n
126307	IIEES	BSRN	E	26.7	0.32	2017-12-25 08:30:31	2018-01-07 09:29:00	n
126308	IIEES	NASN	N	15.6	0.41	2017-12-25 08:30:53	2018-01-07 09:29:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	KRBR	Z	Pg	E	2017-12-25 08:29:30	-0.02	y	164	166
IIEES	YZKH	Z	Pn	E	2017-12-25 08:29:35	0.01	y	198	303
IIEES	YZKH	N	Sg	E	2017-12-25 08:29:59	-0.01	y	198	303
IIEES	TABS	Z	Pn	E	2017-12-25 08:29:43	-0.07	y	258	16
IIEES	BSRN	Z	Pn	E	2017-12-25 08:29:45	0.05	y	271	76
IIEES	BSRN	N	Sg	E	2017-12-25 08:30:19	0	y	271	76
IIEES	NASN	Z	Pn	E	2017-12-25 08:29:57	0.05	y	367	296
