Magnitude |
3.1 |
| Date & Time (UTC) | 2017-12-25 14:27:23.1 |
| Date & Time (Local) | 1396/10/4 17:57:23.1 |
| Location | Lat:31.443 Lon: 56.291 |
| Region | Kerman Province, 53 km North-West of Ravar |
Nearest Cities |
|
| 3 km North of Kuhbanan, Kerman Province | |
| 9 km North of Jor, Kerman Province | |
| 26 km South of Asfih, Yazd Province | |
| 29 km East of Basab, Yazd Province | |
| 35 km North West of Toghroljerd, Kerman Province | |
| Depth | 14 km |
| Agency | |

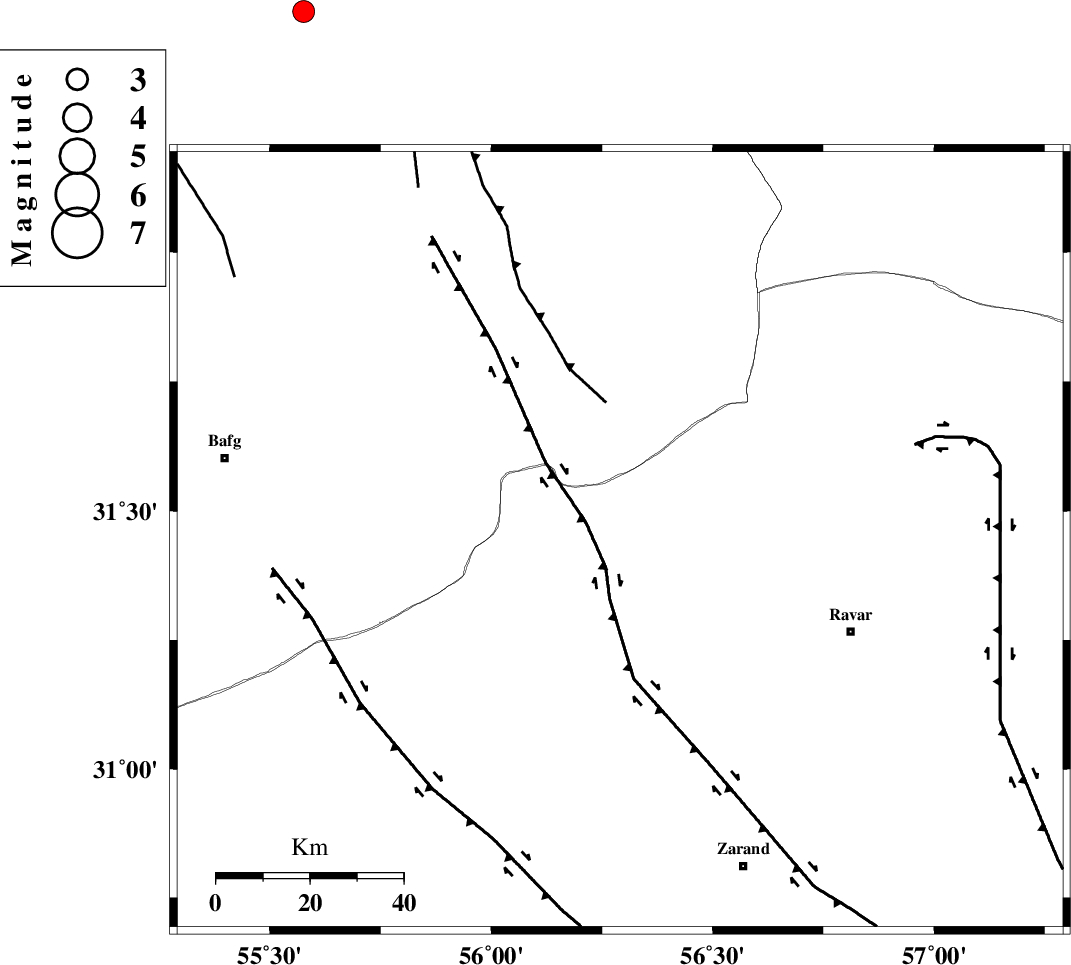

Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 30 km | |
| DARIVAN_F (Length: 131 km) , Distance to epicenter: 66 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 3 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126337 | IIEES | KRBR | E | 186.1 | 0.17 | 2017-12-25 14:28:17 | 2018-01-07 09:29:00 | n |
| 126338 | IIEES | YZKH | N | 145.7 | 0.65 | 2017-12-25 14:28:22 | 2018-01-07 09:29:00 | n |
| 126339 | IIEES | YZKH | E | 184 | 0.47 | 2017-12-25 14:28:25 | 2018-01-07 09:29:00 | n |
| 126340 | IIEES | NASN | N | 41.1 | 0.49 | 2017-12-25 14:29:10 | 2018-01-07 09:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2017-12-25 14:27:50 | -0.36 | y | 168 | 164 | |
| IIEES | YZKH | Z | Pn | E | 2017-12-25 14:27:54 | -0.42 | y | 192 | 304 | |
| IIEES | YZKH | N | Sg | E | 2017-12-25 14:28:17 | 0 | y | 192 | 304 | |
| IIEES | TABS | Z | Pn | E | 2017-12-25 14:28:02 | -0.03 | y | 257 | 17 | |
| IIEES | BSRN | Z | Pn | E | 2017-12-25 14:28:05 | 0.02 | y | 275 | 77 | |
| IIEES | BSRN | N | Sg | E | 2017-12-25 14:28:40 | 0.06 | y | 275 | 77 | |
| IIEES | NASN | Z | Pn | E | 2017-12-25 14:28:16 | 0.41 | y | 361 | 295 | |
| IIEES | BNDS | Z | Pn | E | 2017-12-25 14:28:27 | 0.53 | y | 448 | 182 |
