Magnitude |
2.5 |
| Date & Time (UTC) | 2017-12-25 22:19:07.4 |
| Date & Time (Local) | 1396/10/5 01:49:07.4 |

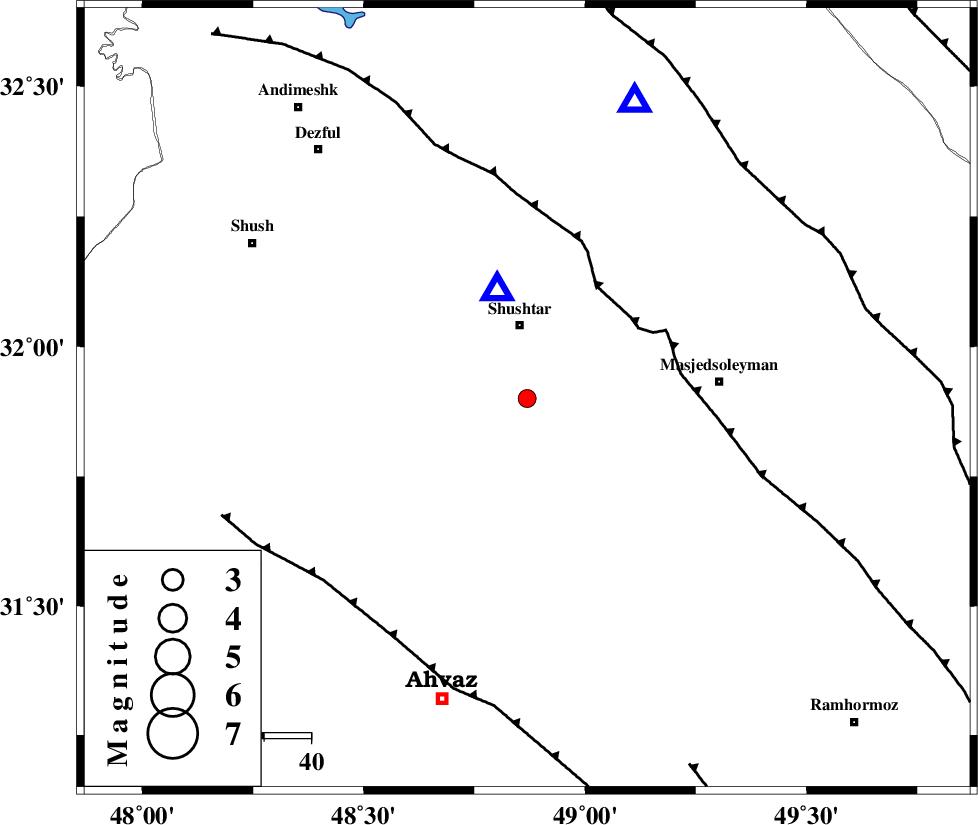

| Location | Lat:31.9 Lon: 48.869 |
| Region | Khoozestan Province, 16 km South of Shushtar |
Nearest Cities |
|
| 6 km of Mehdiabad, Khoozestan Province | |
| 8 km North of Arabhasan, Khoozestan Province | |
| 15 km South of Sardarabad, Khoozestan Province | |
| 16 km South of Shushtar, Khoozestan Province | |
| 32 km South West of Haft shahidan, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 28 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 58 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 68 km | |
| Number of Phases | 6 |
| RMS | 0.6 |
| Number of Stations | 6 |
| Error in Latitude | 19.9 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126352 | IIEES | KHMZ | E | 30.2 | 0.55 | 2017-12-25 22:20:20 | 2018-01-07 09:29:00 | n |
| 126353 | IIEES | KHMZ | N | 22.7 | 0.49 | 2017-12-25 22:20:25 | 2018-01-07 09:29:00 | n |
| 126354 | IIEES | ASAO | N | 12.2 | 0.51 | 2017-12-25 22:20:47 | 2018-01-07 09:29:00 | n |
| 126355 | IIEES | ASAO | E | 14.1 | 0.6 | 2017-12-25 22:20:51 | 2018-01-07 09:29:00 | n |
| 126356 | IIEES | ILBA | N | 17.9 | 0.72 | 2017-12-25 22:20:49 | 2018-01-07 09:29:00 | n |
| 126357 | IIEES | GHVR | N | 9.1 | 0.48 | 2017-12-25 22:21:12 | 2018-01-07 09:29:00 | n |
| 126358 | IIEES | GHVR | E | 8.8 | 0.58 | 2017-12-25 22:21:14 | 2018-01-07 09:29:00 | n |
| 126359 | IIEES | SNGE | N | 6.9 | 0.57 | 2017-12-25 22:20:44 | 2018-01-07 09:29:00 | n |
| 126360 | IIEES | SNGE | E | 6.3 | 0.57 | 2017-12-25 22:20:49 | 2018-01-07 09:29:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2017-12-25 22:19:44 | 0.49 | y | 228 | 26 | |
| IIEES | ASAO | Z | Pn | E | 2017-12-25 22:19:54 | 0.14 | y | 313 | 20 | |
| IIEES | ILBA | Z | Pn | E | 2017-12-25 22:19:54 | 0.62 | y | 314 | 308 | |
| IIEES | GHVR | Z | Pn | E | 2017-12-25 22:20:00 | 0.23 | y | 362 | 37 | |
| IIEES | SNGE | Z | Pn | E | 2017-12-25 22:20:01 | -1.28 | y | 381 | 339 | |
| IIEES | NASN | Z | Pn | E | 2017-12-25 22:20:02 | -0.41 | y | 384 | 74 |
