Magnitude |
3 |
| Date & Time (UTC) | 2018-01-03 22:53:03.9 |
| Date & Time (Local) | 1396/10/14 02:23:03.9 |

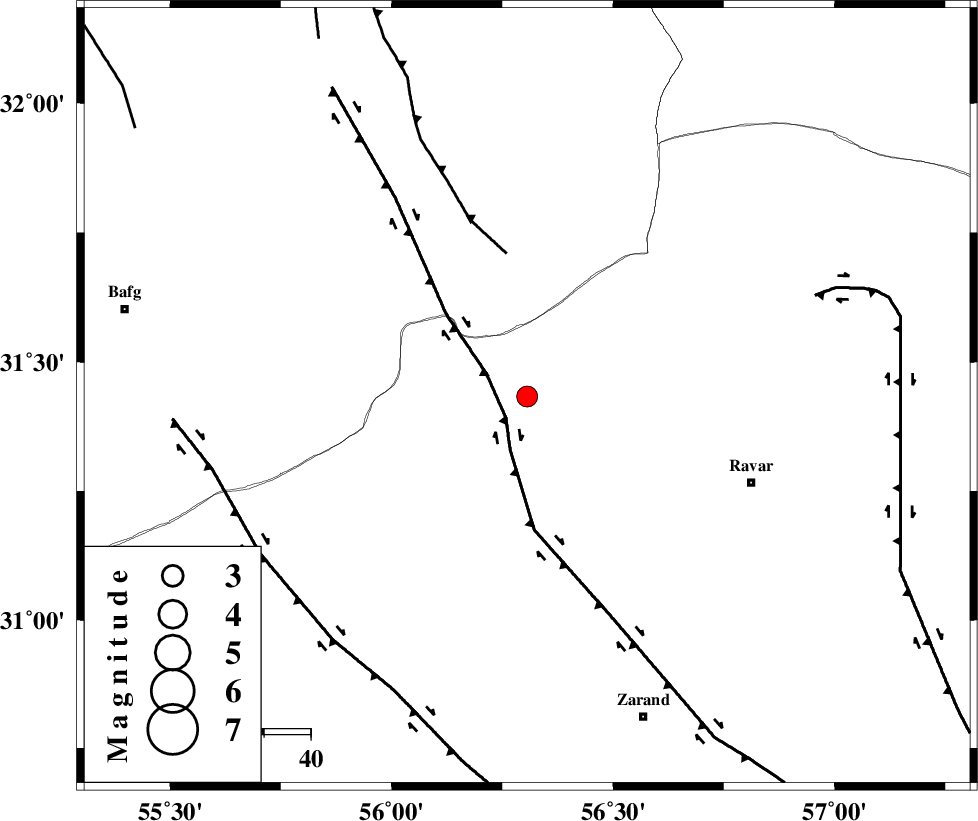

| Location | Lat:31.433 Lon: 56.306 |
| Region | Kerman Province, 52 km North-West of Ravar |
Nearest Cities |
|
| 2 km North of Kuhbanan, Kerman Province | |
| 8 km North of Jor, Kerman Province | |
| 27 km South of Asfih, Yazd Province | |
| 31 km East of Basab, Yazd Province | |
| 33 km North West of Toghroljerd, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 6 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 31 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 65 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 8 |
| Error in Latitude | 3.7 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126502 | IIEES | KRBR | N | 149.6 | 0.29 | 2018-01-03 22:53:56 | 2018-01-08 11:08:00 | n |
| 126503 | IIEES | KRBR | E | 159.4 | 0.29 | 2018-01-03 22:54:00 | 2018-01-08 11:08:00 | n |
| 126504 | IIEES | YZKH | N | 182.7 | 0.39 | 2018-01-03 22:54:03 | 2018-01-08 11:08:00 | n |
| 126505 | IIEES | YZKH | E | 174 | 0.34 | 2018-01-03 22:54:04 | 2018-01-08 11:08:00 | n |
| 126506 | IIEES | NASN | N | 22.9 | 0.33 | 2018-01-03 22:54:47 | 2018-01-08 11:08:00 | n |
| 126507 | IIEES | NASN | E | 20.7 | 0.49 | 2018-01-03 22:54:48 | 2018-01-08 11:08:00 | n |
| 126508 | IIEES | SHRO | E | 9.6 | 0.47 | 2018-01-03 22:55:34 | 2018-01-08 11:08:00 | n |
| 126509 | IIEES | SHRO | N | 9.5 | 0.37 | 2018-01-03 22:55:44 | 2018-01-08 11:08:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KRBR | Z | Pg | E | 2018-01-03 22:53:31 | -0.1 | y | 167 | 165 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-03 22:53:35 | -0.23 | y | 194 | 304 | |
| IIEES | YZKH | N | Sg | E | 2018-01-03 22:53:58 | -0.4 | y | 194 | 304 | |
| IIEES | TABS | Z | Pn | E | 2018-01-03 22:53:43 | 0.05 | y | 257 | 17 | |
| IIEES | BSRN | Z | Pn | E | 2018-01-03 22:53:45 | 0.17 | y | 274 | 77 | |
| IIEES | BSRN | N | Sg | E | 2018-01-03 22:54:20 | -0.54 | y | 274 | 77 | |
| IIEES | NASN | Z | Pn | E | 2018-01-03 22:53:57 | 0.42 | y | 363 | 296 | |
| IIEES | SHRT | Z | Pn | E | 2018-01-03 22:54:07 | 0.62 | y | 448 | 56 | |
| IIEES | ZHSF | Z | Pn | E | 2018-01-03 22:54:10 | 0.01 | y | 474 | 114 | |
| IIEES | SHRO | Z | Pn | E | 2018-01-03 22:54:15 | 0.34 | y | 508 | 357 |
