eventspec – IIEES Earthquake Process Program

Magnitude	3.9
Date & Time (UTC)	2018-01-09 23:12:55.2
Date & Time (Local)	1396/10/20 02:42:55.2

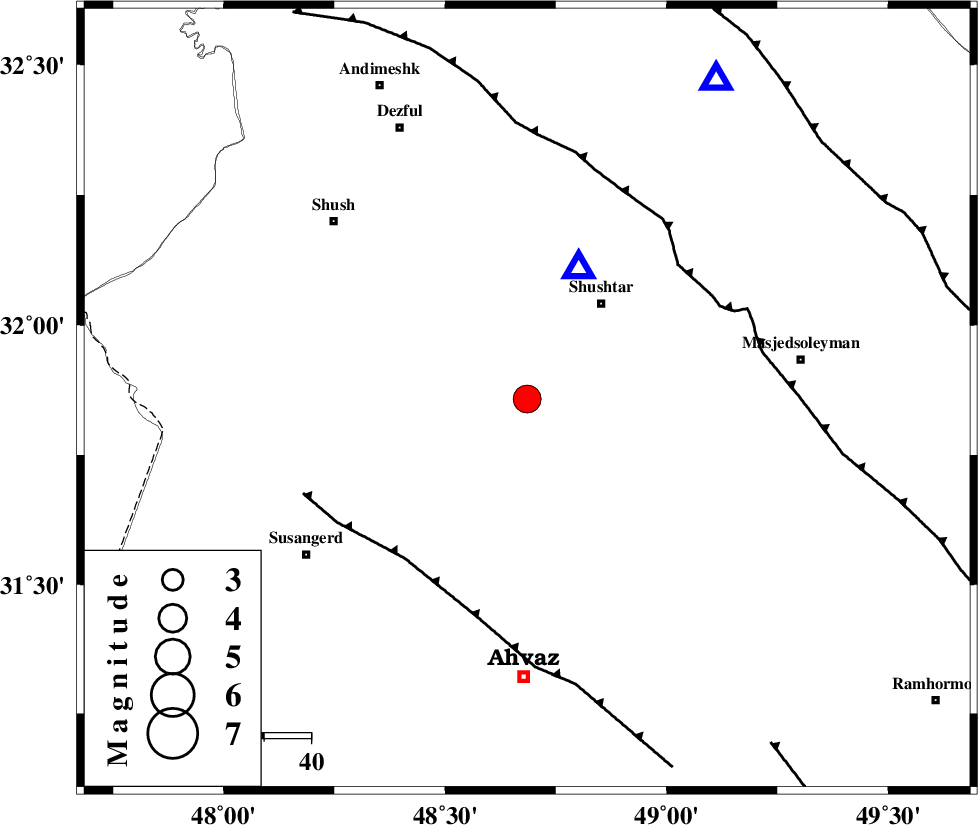

Location	Lat:31.858 Lon: 48.685
Region	Khoozestan Province, 26 km South-West of Shushtar
Nearest Cities
	18 km West of Mehdiabad, Khoozestan Province
	20 km North West of Arabhasan, Khoozestan Province
	20 km South West of Sardarabad, Khoozestan Province
	26 km South West of Shushtar, Khoozestan Province
	29 km North East of Abdolkhan-eali, Khoozestan Province
Depth	14 km
Agency
Faults within 150 km:
	AHVAZ_F (Length: 99 km) , Distance to epicenter: 43 km
	DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km
	MFF2 (Length: 205 km) , Distance to epicenter: 83 km
Number of Phases	19
RMS	0.5
Number of Stations	17
Error in Latitude	4.2 km
Error in Longitude	5.7 km
Error in Depth	9.2 km

Download waveform in seisan format

to download seisan software Click here

to access information about IIEES stations Click here

UID	Agency	Station	Component	Amplitude	Period	Arrival Time	Proccessing Time	Signal Clip
126601	IIEES	KHMZ	N	566	0.79	2018-01-09 23:14:12	2018-01-10 06:29:00	n
126602	IIEES	KHMZ	E	453.3	0.4	2018-01-09 23:14:13	2018-01-10 06:29:00	n
126603	IIEES	ILBA	N	375.1	0.71	2018-01-09 23:14:46	2018-01-10 06:29:00	n
126604	IIEES	ASAO	E	362.1	0.62	2018-01-09 23:14:34	2018-01-10 06:29:00	n
126605	IIEES	ASAO	N	407.9	0.72	2018-01-09 23:14:34	2018-01-10 06:29:00	n
126606	IIEES	GHVR	E	212.5	0.45	2018-01-09 23:14:52	2018-01-10 06:29:00	n
126607	IIEES	GHVR	N	351.8	0.78	2018-01-09 23:14:55	2018-01-10 06:29:00	n
126608	IIEES	SNGE	N	221.3	0.39	2018-01-09 23:14:48	2018-01-10 06:29:00	n
126609	IIEES	SNGE	E	200.2	0.49	2018-01-09 23:14:52	2018-01-10 06:29:00	n
126610	IIEES	THKV	E	69	0.48	2018-01-09 23:15:20	2018-01-10 06:29:00	n
126611	IIEES	THKV	N	86.6	0.72	2018-01-09 23:15:23	2018-01-10 06:29:00	n
126612	IIEES	DAMV	E	31.8	0.43	2018-01-09 23:15:29	2018-01-10 06:29:00	n
126613	IIEES	DAMV	N	47.9	0.65	2018-01-09 23:15:40	2018-01-10 06:29:00	n
126614	IIEES	GIDE	N	55	0.52	2018-01-09 23:15:53	2018-01-10 06:29:00	n
126615	IIEES	GIDE	E	52.5	0.78	2018-01-09 23:15:55	2018-01-10 06:29:00	n

Agency	Station	Component	Phase Type	Phase Quality	Arrival Time	Time Residual	Loc. Flag	Distance	Azimuth
IIEES	KHMZ	Z	Pn	E	2018-01-09 23:13:33	0.11	y	241	30
IIEES	KHMZ	N	Sg	E	2018-01-09 23:14:03	-0.35	y	241	30
IIEES	ILBA	Z	Pn	E	2018-01-09 23:13:40	-0.53	y	304	311
IIEES	ASAO	Z	Pn	E	2018-01-09 23:13:44	1.08	y	323	22
IIEES	ASAO	N	S	E	2018-01-09 23:14:18	-0.31	y	323	22
IIEES	GHVR	Z	Pn	E	2018-01-09 23:13:49	0.25	y	376	39
IIEES	SNGE	Z	Pn	E	2018-01-09 23:13:50	0.35	y	380	341
IIEES	NASN	Z	Pn	E	2018-01-09 23:13:53	0.46	y	402	74
IIEES	THKV	Z	Pn	E	2018-01-09 23:14:04	0.34	y	494	24
IIEES	CHTH	Z	Pn	E	2018-01-09 23:14:05	-0.36	y	503	26
IIEES	DAMV	Z	Pn	E	2018-01-09 23:14:07	-0.37	y	517	35
IIEES	ZNJK	Z	Pn	E	2018-01-09 23:14:09	-0.01	y	534	0
IIEES	YZKH	Z	Pn	E	2018-01-09 23:14:12	-0.54	y	560	82
IIEES	GIDE	Z	Pn	E	2018-01-09 23:14:14	-0.1	y	573	11
IIEES	GHIR	Z	Pn	E	2018-01-09 23:14:13	-0.64	y	573	133
IIEES	GRMI	Z	Pn	E	2018-01-09 23:14:39	0.13	y	775	355
IIEES	KRBR	Z	Pn	E	2018-01-09 23:14:43	0.69	y	799	103
IIEES	SHRO	Z	Pn	E	2018-01-09 23:14:44	-0.07	y	819	54
IIEES	BSRN	Z	Pn	E	2018-01-09 23:15:05	-0.38	y	987	87
