Magnitude |
3.9 |
| Date & Time (UTC) | 2018-01-13 09:24:19.3 |
| Date & Time (Local) | 1396/10/23 12:54:19.3 |

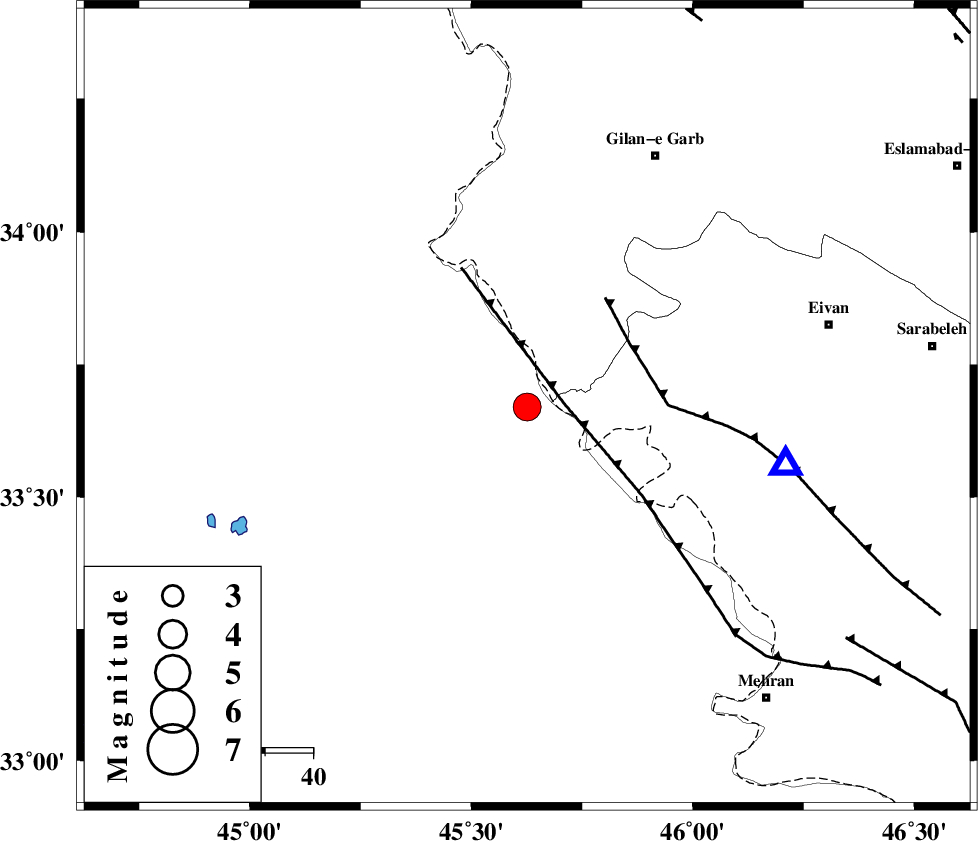

| Location | Lat:33.67 Lon: 45.626 |
| Region | Iraq, 59 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 23 km South of Sumar, Kermanshah Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 56 km South West of Teran, Ilam Province | |
| 56 km North West of Salehabad, Ilam Province | |
| 59 km South West of Zarneh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 25 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 82 km | |
| Number of Phases | 13 |
| RMS | 0.2 |
| Number of Stations | 11 |
| Error in Latitude | 3 km |
| Error in Longitude | 7.9 km |
| Error in Depth | 7.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126707 | IIEES | ILBA | N | 9345 | 0.54 | 2018-01-13 09:24:44 | 2018-01-13 10:31:00 | n |
| 126708 | IIEES | SNGE | E | 938.8 | 1 | 2018-01-13 09:25:27 | 2018-01-13 10:31:00 | n |
| 126709 | IIEES | SNGE | N | 999.7 | 0.61 | 2018-01-13 09:25:29 | 2018-01-13 10:31:00 | n |
| 126710 | IIEES | KHMZ | E | 155.3 | 0.53 | 2018-01-13 09:26:06 | 2018-01-13 10:31:00 | n |
| 126711 | IIEES | KHMZ | N | 135.4 | 0.84 | 2018-01-13 09:26:34 | 2018-01-13 10:31:00 | n |
| 126712 | IIEES | ASAO | N | 121.9 | 0.73 | 2018-01-13 09:26:25 | 2018-01-13 10:31:00 | n |
| 126713 | IIEES | ASAO | E | 99.3 | 0.59 | 2018-01-13 09:26:29 | 2018-01-13 10:31:00 | n |
| 126714 | IIEES | GHVR | E | 77.4 | 0.91 | 2018-01-13 09:27:08 | 2018-01-13 10:31:00 | n |
| 126715 | IIEES | GHVR | N | 83.4 | 0.5 | 2018-01-13 09:27:11 | 2018-01-13 10:31:00 | n |
| 126716 | IIEES | GIDE | N | 58.3 | 0.84 | 2018-01-13 09:27:01 | 2018-01-13 10:31:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-13 09:24:29 | 0.01 | y | 54.2 | 95 | |
| IIEES | ILBA | N | Sg | E | 2018-01-13 09:24:35 | -0.13 | y | 54.2 | 95 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-13 09:24:54 | 0.04 | y | 224 | 45 | |
| IIEES | SNGE | N | Sg | E | 2018-01-13 09:25:22 | 0.14 | y | 224 | 45 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-13 09:25:17 | 0.08 | y | 402 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-13 09:25:19 | 0.36 | y | 417 | 75 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-13 09:25:21 | 0.06 | y | 434 | 39 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-13 09:25:32 | 0.18 | y | 526 | 79 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-13 09:25:32 | -0.35 | y | 531 | 46 | |
| IIEES | THKV | Z | Pn | E | 2018-01-13 09:25:33 | -0.34 | y | 541 | 61 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-13 09:25:36 | -0.18 | y | 561 | 62 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-13 09:25:43 | -0.38 | y | 621 | 68 | |
| IIEES | NASN | Z | Pn | E | 2018-01-13 09:25:51 | 0.39 | y | 676 | 96 |
