Magnitude |
5.3 |
| Date & Time (UTC) | 2018-01-11 06:59:30.5 |
| Date & Time (Local) | 1396/10/21 10:29:30.5 |

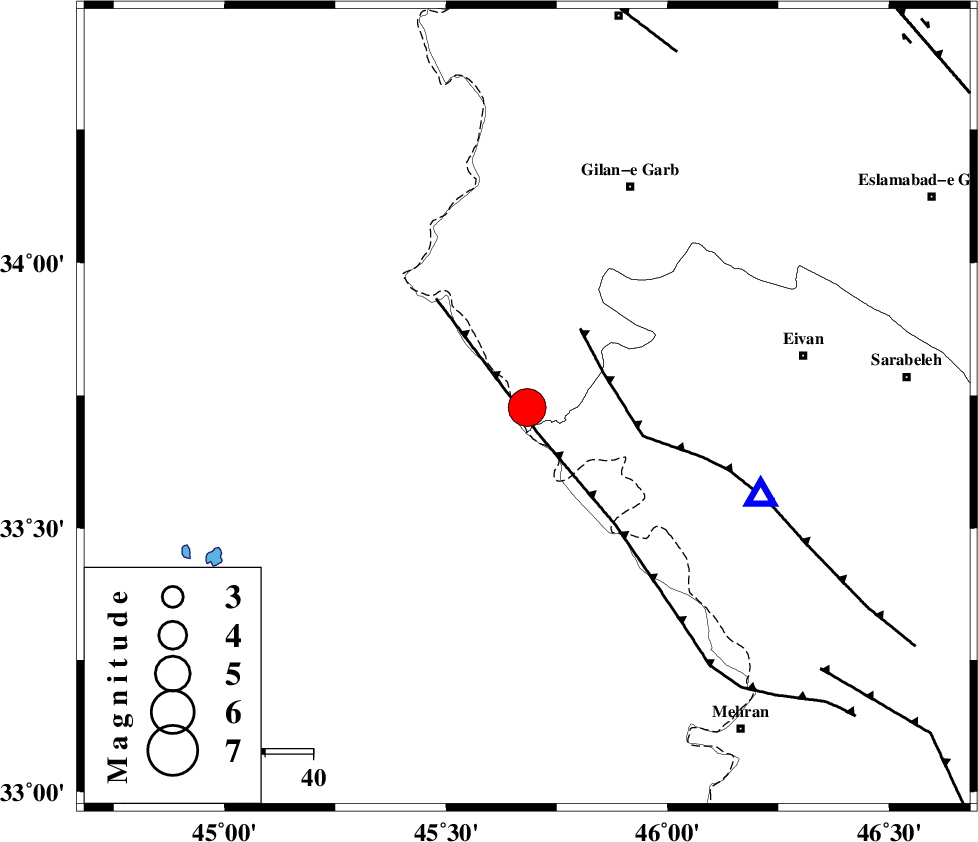

| Location | Lat:33.727 Lon: 45.683 |
| Region | Kermanshah Province, 51 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 17 km South of Sumar, Kermanshah Province | |
| 42 km South West of Nian, Kermanshah Province | |
| 48 km South West of Teran, Ilam Province | |
| 51 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 51 km South West of Zarneh, Ilam Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 6 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 18 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 81 km | |
| Number of Phases | 18 |
| RMS | 0.4 |
| Number of Stations | 16 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126723 | IIEES | SNGE | N | 26160.7 | 0.66 | 2018-01-11 07:00:37 | 2018-01-13 11:51:00 | n |
| 126724 | IIEES | SNGE | E | 34757.9 | 0.73 | 2018-01-11 07:00:38 | 2018-01-13 11:51:00 | n |
| 126725 | IIEES | ASAO | E | 2385.3 | 0.7 | 2018-01-11 07:01:38 | 2018-01-13 11:51:00 | n |
| 126726 | IIEES | ASAO | N | 3219.9 | 0.5 | 2018-01-11 07:01:44 | 2018-01-13 11:51:00 | n |
| 126727 | IIEES | GHVR | N | 1842.8 | 0.45 | 2018-01-11 07:02:12 | 2018-01-13 11:51:00 | n |
| 126728 | IIEES | GHVR | E | 1964.7 | 0.9 | 2018-01-11 07:02:16 | 2018-01-13 11:51:00 | n |
| 126729 | IIEES | GIDE | E | 1425 | 0.69 | 2018-01-11 07:02:20 | 2018-01-13 11:51:00 | n |
| 126730 | IIEES | GIDE | N | 1314.2 | 0.69 | 2018-01-11 07:02:21 | 2018-01-13 11:51:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-11 06:59:39 | 0.08 | y | 50 | 103 | |
| IIEES | ILBA | N | Sg | E | 2018-01-11 06:59:46 | 0.16 | y | 50 | 103 | |
| IIEES | SNGE | Z | Pg | E | 2018-01-11 07:00:05 | -0.38 | y | 215 | 45 | |
| IIEES | SNGE | N | Sg | E | 2018-01-11 07:00:31 | 0.06 | y | 215 | 45 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-11 07:00:27 | -0.12 | y | 397 | 89 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-11 07:00:29 | 0.7 | y | 411 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-11 07:00:31 | 0.42 | y | 426 | 39 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-11 07:00:43 | 0.42 | y | 520 | 79 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-11 07:00:43 | 0.32 | y | 523 | 46 | |
| IIEES | THKV | Z | Pn | E | 2018-01-11 07:00:44 | -0.25 | y | 534 | 61 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-11 07:00:46 | -0.49 | y | 554 | 63 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-11 07:00:52 | 0.14 | y | 598 | 19 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-11 07:00:53 | -0.89 | y | 614 | 68 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-11 07:00:56 | 0.21 | y | 631 | 352 | |
| IIEES | NASN | Z | Pn | E | 2018-01-11 07:01:01 | -0.17 | y | 672 | 97 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-11 07:01:22 | -0.61 | y | 845 | 98 | |
| IIEES | SHRO | Z | Pn | E | 2018-01-11 07:01:38 | -0.66 | y | 977 | 72 | |
| IIEES | SHRT | Z | Pn | E | 2018-01-11 07:02:25 | -0.75 | y | 1353 | 86 |
