Magnitude |
3.1 |
| Date & Time (UTC) | 2018-01-14 20:30:07.8 |
| Date & Time (Local) | 1396/10/25 00:00:07.8 |

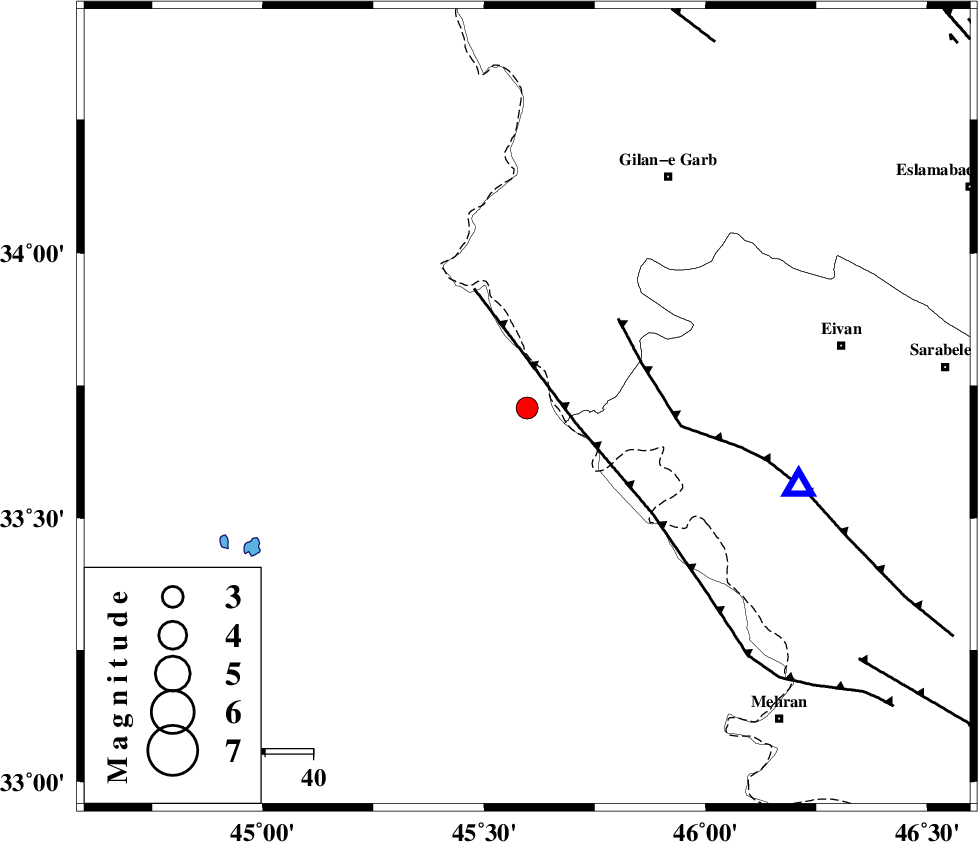

| Location | Lat:33.708 Lon: 45.597 |
| Region | Iraq, 57 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 19 km South of Sumar, Kermanshah Province | |
| 49 km South West of Nian, Kermanshah Province | |
| 56 km South West of Teran, Ilam Province | |
| 57 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 59 km South West of Zarneh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 11 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 26 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 86 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | 3 km |
| Error in Longitude | 8.1 km |
| Error in Depth | 8.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 126921 | IIEES | SNGE | E | 100.9 | 0.54 | 2018-01-14 20:31:14 | 2018-01-15 06:38:00 | n |
| 126922 | IIEES | SNGE | N | 142.2 | 0.54 | 2018-01-14 20:31:17 | 2018-01-15 06:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-14 20:30:17 | -0.3 | y | 57.4 | 99 | |
| IIEES | ILBA | N | Sg | E | 2018-01-14 20:30:25 | 0.1 | y | 57.4 | 99 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-14 20:30:43 | -0.02 | y | 222 | 46 | |
| IIEES | SNGE | N | Sg | E | 2018-01-14 20:31:10 | -0.06 | y | 222 | 46 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-14 20:31:05 | -0.01 | y | 405 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-14 20:31:08 | 0.37 | y | 419 | 76 |
