Magnitude |
3.2 |
| Date & Time (UTC) | 2018-01-16 06:22:20.2 |
| Date & Time (Local) | 1396/10/26 09:52:20.2 |

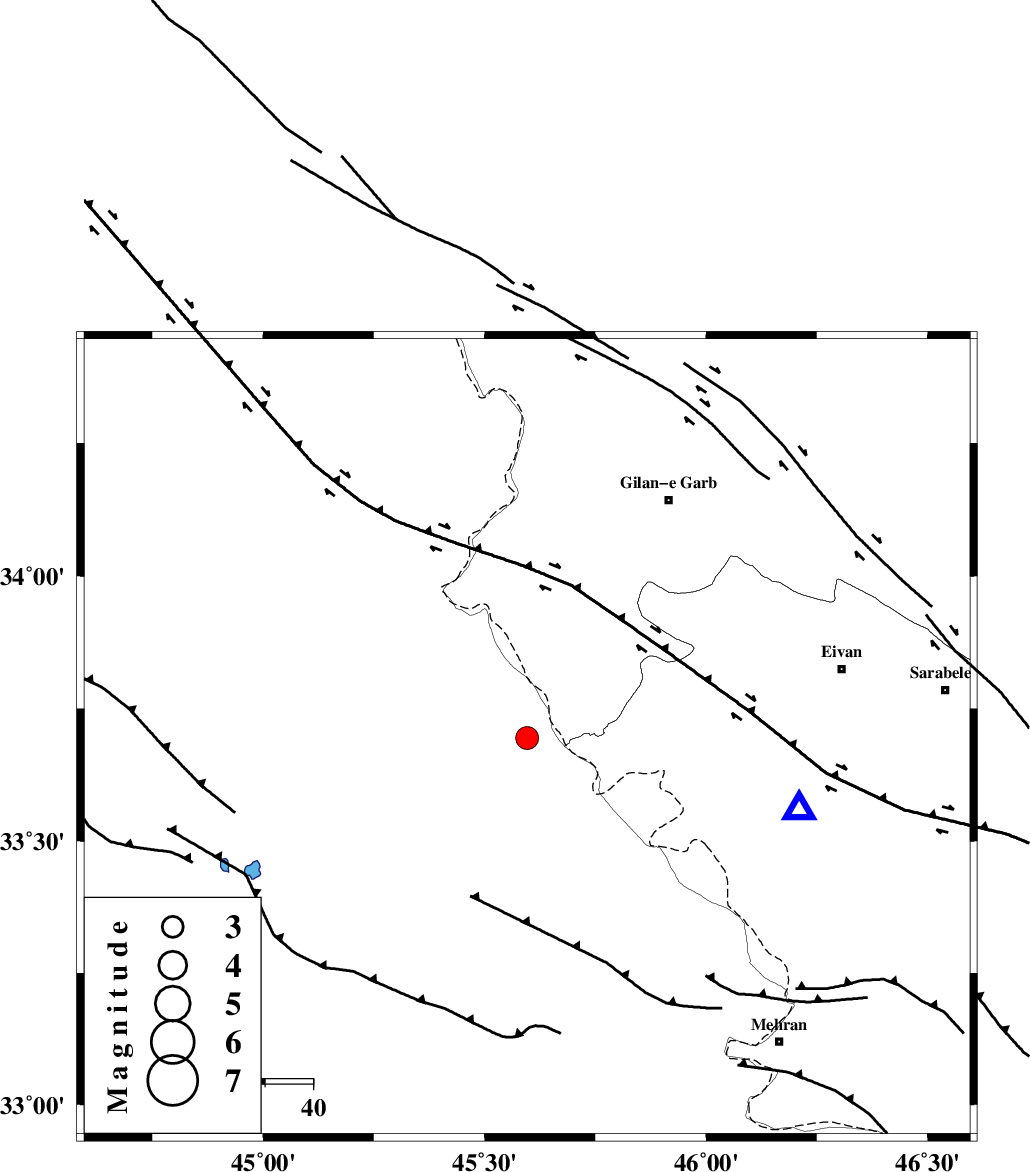

| Location | Lat:33.695 Lon: 45.596 |
| Region | Iraq, 58 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 21 km South of Sumar, Kermanshah Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 56 km South West of Teran, Ilam Province | |
| 58 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 60 km South West of Zarneh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 11 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 26 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 86 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2.7 km |
| Error in Longitude | 8.7 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127022 | IIEES | SNGE | E | 155.7 | 0.49 | 2018-01-16 06:23:28 | 2018-01-16 08:20:00 | n |
| 127023 | IIEES | SNGE | N | 202.5 | 0.62 | 2018-01-16 06:23:29 | 2018-01-16 08:20:00 | n |
| 127024 | IIEES | KHMZ | E | 20.1 | 0.74 | 2018-01-16 06:24:02 | 2018-01-16 08:20:00 | n |
| 127025 | IIEES | GHVR | N | 12.4 | 0.31 | 2018-01-16 06:24:32 | 2018-01-16 08:20:00 | n |
| 127026 | IIEES | GHVR | E | 14.1 | 0.52 | 2018-01-16 06:24:32 | 2018-01-16 08:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-16 06:22:30 | -0.08 | y | 57.2 | 98 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-16 06:22:55 | -0.01 | y | 223 | 46 | |
| IIEES | SNGE | E | Sg | E | 2018-01-16 06:23:23 | -0.03 | y | 223 | 46 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-16 06:23:18 | -0.17 | y | 405 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-16 06:23:20 | 0.36 | y | 419 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-16 06:23:22 | 0.17 | y | 434 | 40 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-16 06:23:33 | -0.04 | y | 528 | 79 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-16 06:23:42 | -0.25 | y | 604 | 19 |
