Magnitude |
3 |
| Date & Time (UTC) | 2018-01-16 05:41:59.4 |
| Date & Time (Local) | 1396/10/26 09:11:59.4 |

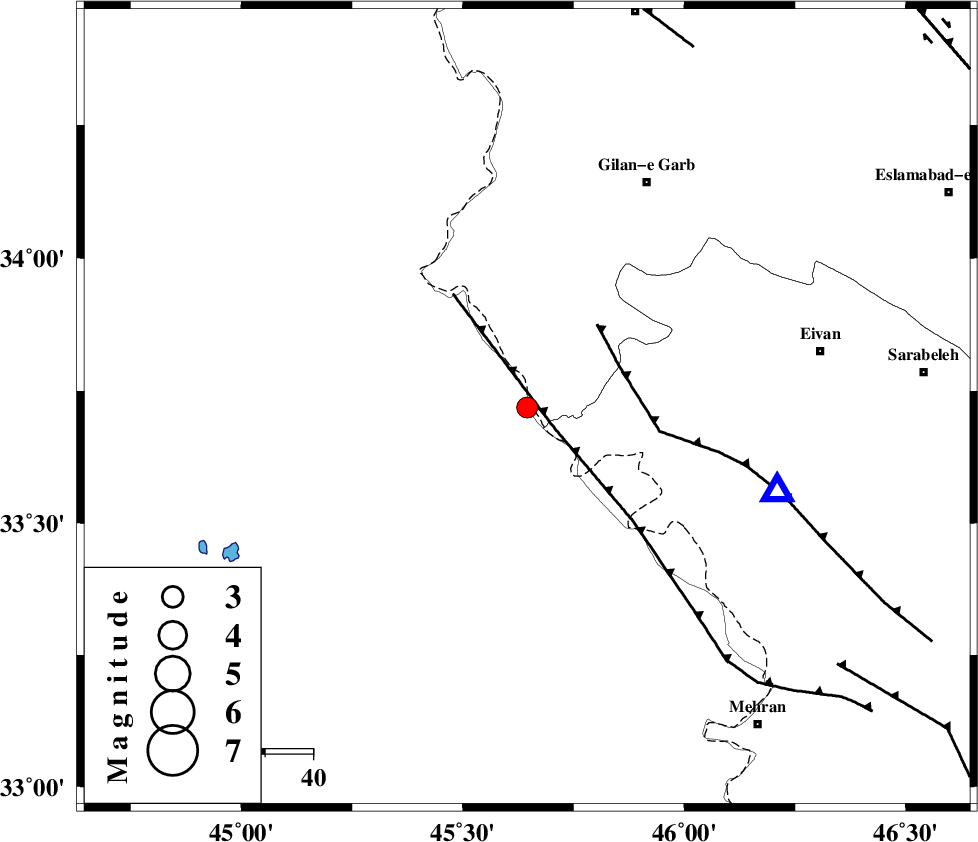

| Location | Lat:33.718 Lon: 45.645 |
| Region | Iraq, 53 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 18 km South of Sumar, Kermanshah Province | |
| 45 km South West of Nian, Kermanshah Province | |
| 51 km South West of Teran, Ilam Province | |
| 53 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 55 km South West of Zarneh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 7 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 21 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 83 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127027 | IIEES | SNGE | N | 137.6 | 0.54 | 2018-01-16 05:43:06 | 2018-01-16 08:20:00 | n |
| 127028 | IIEES | SNGE | E | 141.7 | 0.48 | 2018-01-16 05:43:07 | 2018-01-16 08:20:00 | n |
| 127029 | IIEES | KHMZ | E | 10.2 | 0.4 | 2018-01-16 05:44:00 | 2018-01-16 08:20:00 | n |
| 127030 | IIEES | GHVR | N | 8.4 | 0.47 | 2018-01-16 05:44:11 | 2018-01-16 08:20:00 | n |
| 127031 | IIEES | GHVR | E | 12.9 | 0.47 | 2018-01-16 05:44:37 | 2018-01-16 08:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-16 05:42:08 | -0.12 | y | 53.2 | 101 | |
| IIEES | ILBA | N | Sg | E | 2018-01-16 05:42:15 | -0.03 | y | 53.2 | 101 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-16 05:42:34 | 0.11 | y | 219 | 45 | |
| IIEES | SNGE | N | Sg | E | 2018-01-16 05:43:01 | 0.01 | y | 219 | 45 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-16 05:42:57 | 0.03 | y | 400 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-16 05:42:58 | 0.01 | y | 414 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-16 05:43:00 | -0.24 | y | 429 | 39 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-16 05:43:12 | 0.37 | y | 524 | 79 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-16 05:43:21 | -0.09 | y | 600 | 19 |
