Magnitude |
3.3 |
| Date & Time (UTC) | 2018-01-15 15:04:58.7 |
| Date & Time (Local) | 1396/10/25 18:34:58.7 |

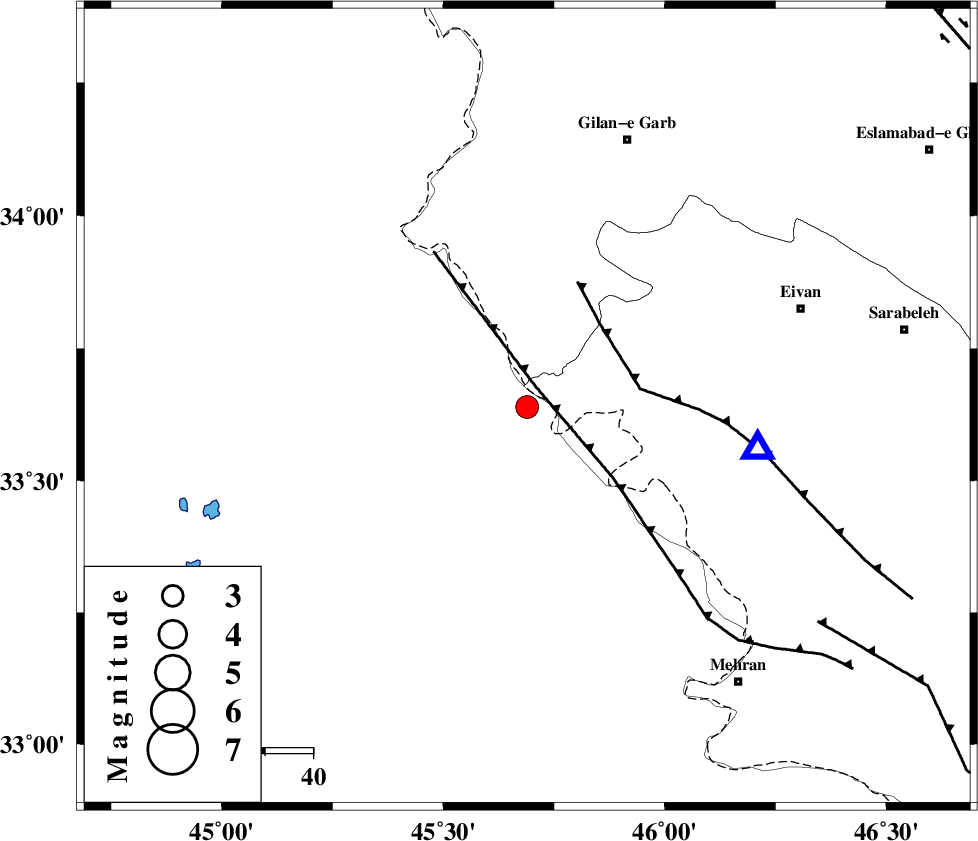

| Location | Lat:33.639 Lon: 45.689 |
| Region | Iraq, 60 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 27 km South of Sumar, Kermanshah Province | |
| 50 km North West of Salehabad, Ilam Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 53 km South West of Teran, Ilam Province | |
| 54 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 23 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 76 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | 2.2 km |
| Error in Longitude | 9.7 km |
| Error in Depth | 6.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127098 | IIEES | ILBA | N | 2143.8 | 0.25 | 2018-01-15 15:05:14 | 2018-01-16 08:20:00 | n |
| 127099 | IIEES | SNGE | N | 201.1 | 0.65 | 2018-01-15 15:06:04 | 2018-01-16 08:20:00 | n |
| 127100 | IIEES | SNGE | E | 188.1 | 0.89 | 2018-01-15 15:06:05 | 2018-01-16 08:20:00 | n |
| 127101 | IIEES | KHMZ | E | 39.3 | 0.4 | 2018-01-15 15:06:40 | 2018-01-16 08:20:00 | n |
| 127102 | IIEES | KHMZ | N | 31 | 0.53 | 2018-01-15 15:06:41 | 2018-01-16 08:20:00 | n |
| 127103 | IIEES | GHVR | E | 26.9 | 0.44 | 2018-01-15 15:07:10 | 2018-01-16 08:20:00 | n |
| 127104 | IIEES | GHVR | N | 18.4 | 0.6 | 2018-01-15 15:07:10 | 2018-01-16 08:20:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-15 15:05:07 | -0.03 | y | 48.2 | 92 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-15 15:05:34 | 0 | y | 222 | 43 | |
| IIEES | SNGE | N | Sg | E | 2018-01-15 15:06:01 | -0.01 | y | 222 | 43 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-15 15:05:55 | -0.12 | y | 397 | 87 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-15 15:05:58 | 0.25 | y | 413 | 75 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-15 15:06:00 | -0.06 | y | 433 | 38 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-15 15:06:11 | -0.04 | y | 521 | 78 |
