Magnitude |
3 |
| Date & Time (UTC) | 2018-01-16 10:16:27.0 |
| Date & Time (Local) | 1396/10/26 13:46:27.0 |

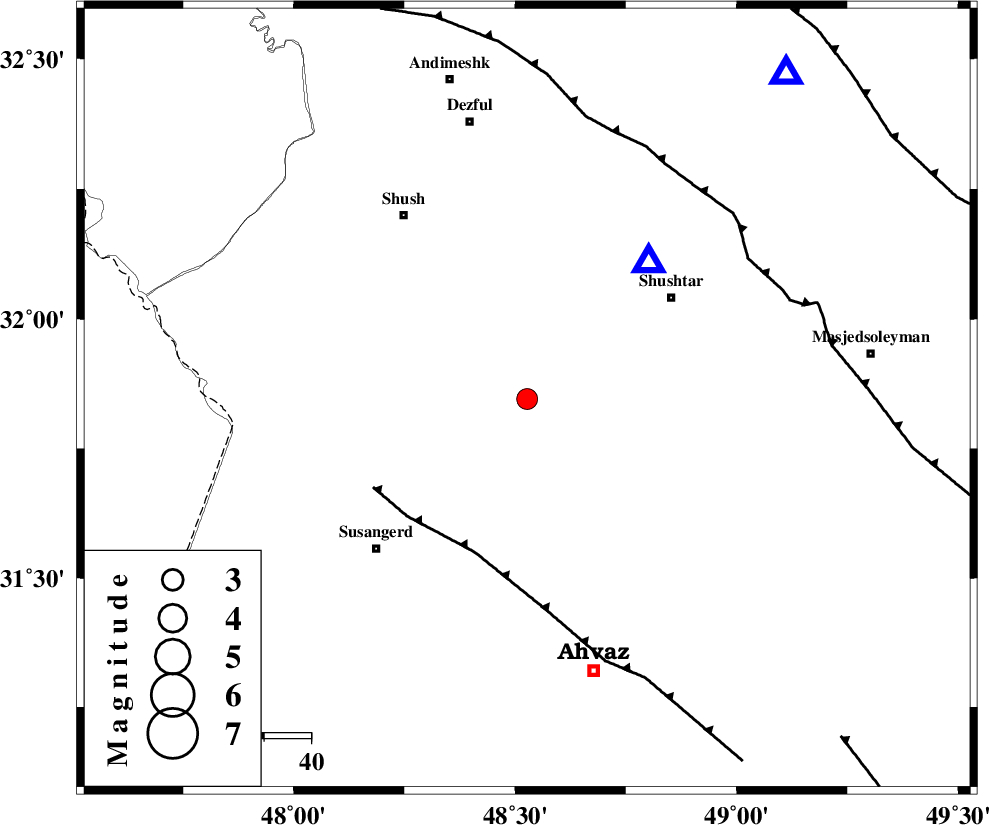

| Location | Lat:31.846 Lon: 48.527 |
| Region | Khoozestan Province, 38 km South-West of Shushtar |
Nearest Cities |
|
| 14 km North East of Abdolkhan-eali, Khoozestan Province | |
| 31 km South West of Sardarabad, Khoozestan Province | |
| 32 km West of Mehdiabad, Khoozestan Province | |
| 35 km North West of Arabhasan, Khoozestan Province | |
| 38 km South West of Shushtar, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 35 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 56 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 96 km | |
| Number of Phases | 7 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | 5 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127108 | IIEES | KHMZ | N | 36.5 | 0.39 | 2018-01-16 10:17:48 | 2018-01-16 10:59:00 | n |
| 127109 | IIEES | ILBA | N | 28.5 | 0.65 | 2018-01-16 10:18:00 | 2018-01-16 10:59:00 | n |
| 127110 | IIEES | SNGE | N | 15.1 | 0.52 | 2018-01-16 10:18:05 | 2018-01-16 10:59:00 | n |
| 127111 | IIEES | SNGE | E | 16.2 | 0.59 | 2018-01-16 10:18:17 | 2018-01-16 10:59:00 | n |
| 127112 | IIEES | GHVR | N | 23.5 | 0.42 | 2018-01-16 10:18:25 | 2018-01-16 10:59:00 | n |
| 127113 | IIEES | GHVR | E | 26.9 | 0.51 | 2018-01-16 10:18:31 | 2018-01-16 10:59:00 | n |
| 127114 | IIEES | AHRM | N | 37 | 0.42 | 2018-01-16 10:18:13 | 2018-01-16 10:59:00 | n |
| 127115 | IIEES | AHRM | E | 41.5 | 0.42 | 2018-01-16 10:18:15 | 2018-01-16 10:59:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-01-16 10:17:05 | 0.24 | y | 249 | 32 | |
| IIEES | ILBA | Z | Pn | E | 2018-01-16 10:17:11 | 0.19 | y | 294 | 313 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-16 10:17:15 | -0.59 | y | 331 | 25 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-16 10:17:21 | 0.01 | y | 376 | 343 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-16 10:17:22 | -0.25 | y | 387 | 40 | |
| IIEES | NASN | Z | Pn | E | 2018-01-16 10:17:27 | 0.66 | y | 417 | 74 | |
| IIEES | AHRM | Z | Pn | E | 2018-01-16 10:17:26 | -0.27 | y | 424 | 140 |
