Magnitude |
3.4 |
| Date & Time (UTC) | 2018-01-16 15:29:59.9 |
| Date & Time (Local) | 1396/10/26 18:59:59.9 |

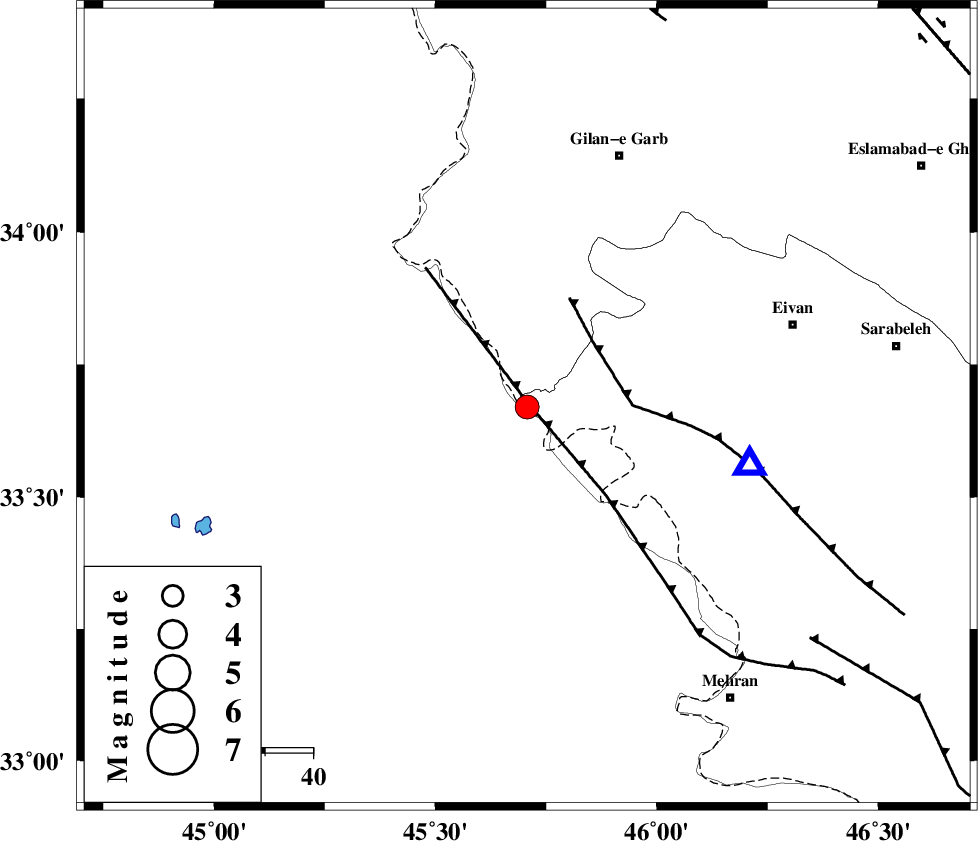

| Location | Lat:33.67 Lon: 45.707 |
| Region | Ilam Province, 56 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 24 km South of Sumar, Kermanshah Province | |
| 46 km South West of Nian, Kermanshah Province | |
| 50 km North West of Salehabad, Ilam Province | |
| 50 km South West of Teran, Ilam Province | |
| 52 km West of Chavar, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 1 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 19 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 77 km | |
| Number of Phases | 12 |
| RMS | 0.2 |
| Number of Stations | 10 |
| Error in Latitude | 2.9 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127153 | IIEES | ILBA | N | 2769.4 | 0.19 | 2018-01-16 15:30:16 | 2018-01-17 07:23:00 | n |
| 127154 | IIEES | SNGE | E | 347.4 | 0.44 | 2018-01-16 15:31:07 | 2018-01-17 07:23:00 | n |
| 127155 | IIEES | SNGE | N | 363 | 0.4 | 2018-01-16 15:31:07 | 2018-01-17 07:23:00 | n |
| 127156 | IIEES | KHMZ | N | 43.5 | 0.33 | 2018-01-16 15:31:42 | 2018-01-17 07:23:00 | n |
| 127157 | IIEES | KHMZ | E | 43.9 | 0.49 | 2018-01-16 15:31:45 | 2018-01-17 07:23:00 | n |
| 127158 | IIEES | ASAO | N | 41.6 | 0.72 | 2018-01-16 15:32:07 | 2018-01-17 07:23:00 | n |
| 127159 | IIEES | GIDE | N | 18.4 | 0.75 | 2018-01-16 15:32:47 | 2018-01-17 07:23:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-16 15:30:08 | -0.03 | y | 46.7 | 96 | |
| IIEES | ILBA | N | Sg | E | 2018-01-16 15:30:14 | 0.09 | y | 46.7 | 96 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-16 15:30:35 | 0.24 | y | 218 | 43 | |
| IIEES | SNGE | N | Sg | E | 2018-01-16 15:31:01 | -0.09 | y | 218 | 43 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-16 15:30:56 | -0.25 | y | 395 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-16 15:30:58 | 0.21 | y | 410 | 75 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-16 15:31:01 | 0.21 | y | 429 | 38 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-16 15:31:11 | -0.21 | y | 519 | 78 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-16 15:31:13 | 0.29 | y | 526 | 45 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-16 15:31:16 | -0.24 | y | 554 | 62 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-16 15:31:22 | -0.34 | y | 603 | 18 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-16 15:31:24 | -0.07 | y | 614 | 68 |
