Magnitude |
3.3 |
| Date & Time (UTC) | 2018-01-19 23:24:25.4 |
| Date & Time (Local) | 1396/10/30 02:54:25.4 |

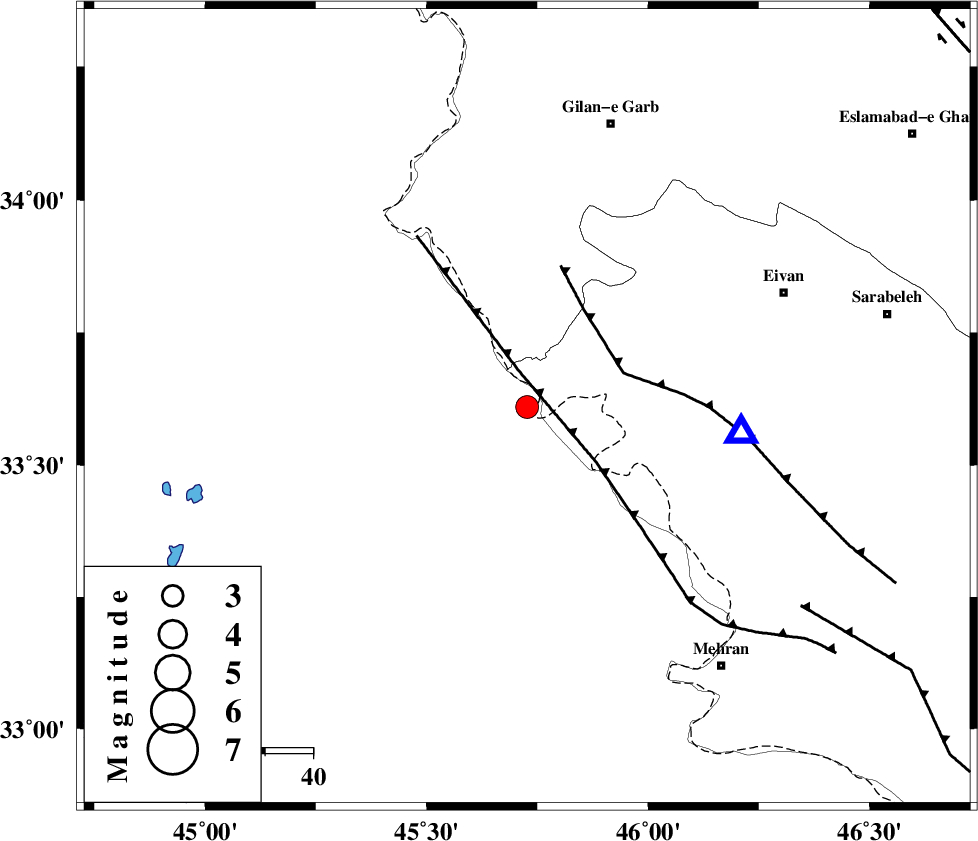

| Location | Lat:33.609 Lon: 45.727 |
| Region | Iraq, 62 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 31 km South of Sumar, Kermanshah Province | |
| 45 km North West of Salehabad, Ilam Province | |
| 51 km West of Chavar, Ilam Province | |
| 52 km South West of Nian, Kermanshah Province | |
| 53 km South West of Teran, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 21 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 71 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 9.9 km |
| Error in Longitude | 3.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127173 | IIEES | SNGE | N | 207 | 0.46 | 2018-01-19 23:25:37 | 2018-01-20 05:44:00 | n |
| 127174 | IIEES | SNGE | E | 153.1 | 0.46 | 2018-01-19 23:25:38 | 2018-01-20 05:44:00 | n |
| 127175 | IIEES | GHVR | E | 24.4 | 0.44 | 2018-01-19 23:26:41 | 2018-01-20 05:44:00 | n |
| 127176 | IIEES | GHVR | N | 18.9 | 0.26 | 2018-01-19 23:26:41 | 2018-01-20 05:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2018-01-19 23:25:00 | -0.29 | y | 222 | 42 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-19 23:25:21 | -0.08 | y | 393 | 87 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-19 23:25:24 | 0.21 | y | 410 | 74 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-19 23:25:27 | 0.31 | y | 434 | 38 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-19 23:25:37 | -0.06 | y | 519 | 78 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-19 23:25:53 | 0 | y | 644 | 352 |
