Magnitude |
3.5 |
| Date & Time (UTC) | 2018-01-20 02:05:51.7 |
| Date & Time (Local) | 1396/10/30 05:35:51.7 |

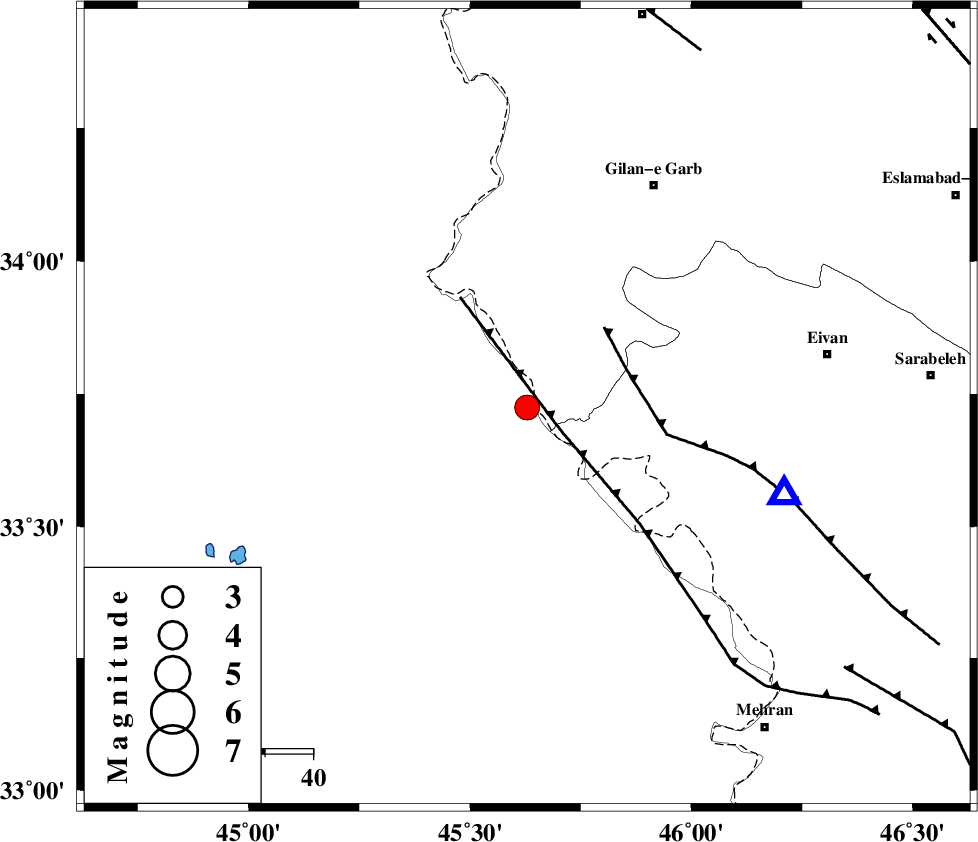

| Location | Lat:33.724 Lon: 45.629 |
| Region | Iraq, 54 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 17 km South of Sumar, Kermanshah Province | |
| 46 km South West of Nian, Kermanshah Province | |
| 52 km South West of Teran, Ilam Province | |
| 54 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 56 km South West of Zarneh, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 9 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 22 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 83 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 8.1 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127177 | IIEES | SNGE | E | 354.4 | 0.6 | 2018-01-20 02:07:01 | 2018-01-20 05:44:00 | n |
| 127178 | IIEES | SNGE | N | 344.9 | 0.75 | 2018-01-20 02:07:04 | 2018-01-20 05:44:00 | n |
| 127179 | IIEES | KHMZ | E | 44.6 | 0.52 | 2018-01-20 02:07:34 | 2018-01-20 05:44:00 | n |
| 127180 | IIEES | KHMZ | N | 39.8 | 0.59 | 2018-01-20 02:07:36 | 2018-01-20 05:44:00 | n |
| 127181 | IIEES | ASAO | N | 60 | 0.66 | 2018-01-20 02:07:40 | 2018-01-20 05:44:00 | n |
| 127182 | IIEES | ASAO | E | 41.3 | 0.57 | 2018-01-20 02:07:41 | 2018-01-20 05:44:00 | n |
| 127183 | IIEES | GHVR | E | 45.5 | 0.49 | 2018-01-20 02:08:04 | 2018-01-20 05:44:00 | n |
| 127184 | IIEES | GHVR | N | 39.2 | 0.25 | 2018-01-20 02:08:05 | 2018-01-20 05:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2018-01-20 02:06:26 | 0.19 | y | 219 | 46 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-20 02:06:49 | -0.1 | y | 402 | 89 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-20 02:06:51 | 0.22 | y | 416 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-20 02:06:52 | -0.3 | y | 429 | 40 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-20 02:07:04 | -0.11 | y | 525 | 79 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-20 02:07:13 | -0.02 | y | 600 | 19 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-20 02:07:17 | 0.06 | y | 631 | 353 |
