Magnitude |
4 |
| Date & Time (UTC) | 2018-01-21 02:19:36.7 |
| Date & Time (Local) | 1396/11/1 05:49:36.7 |

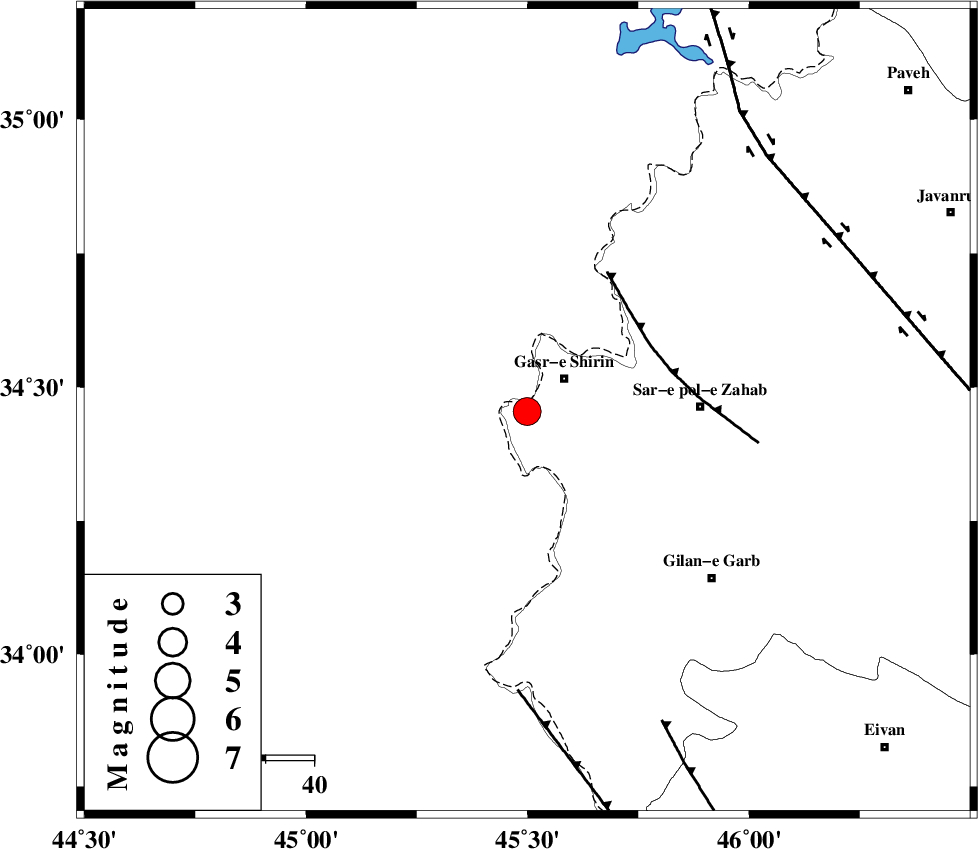

| Location | Lat:34.455 Lon: 45.499 |
| Region | Kermanshah Province, 10 km of Qasr-E-Shirin |
Nearest Cities |
|
| 6 km North of Khosravi, Kermanshah Province | |
| 9 km North of Seyyed sohrab, Kermanshah Province | |
| 10 km of Qasr-E-Shirin, Kermanshah Province | |
| 18 km West of Aqabarar, Kermanshah Province | |
| 26 km West of Qareh belagh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 29 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 58 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 70 km | |
| Number of Phases | 15 |
| RMS | 0.3 |
| Number of Stations | 13 |
| Error in Latitude | 5.1 km |
| Error in Longitude | 6.5 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127250 | IIEES | SNGE | E | 2617.4 | 0.43 | 2018-01-21 02:20:32 | 2018-01-21 05:43:00 | n |
| 127251 | IIEES | SNGE | N | 3320 | 0.43 | 2018-01-21 02:20:33 | 2018-01-21 05:43:00 | n |
| 127252 | IIEES | ASAO | N | 93.5 | 0.59 | 2018-01-21 02:21:45 | 2018-01-21 05:43:00 | n |
| 127253 | IIEES | GIDE | N | 77.9 | 0.81 | 2018-01-21 02:21:58 | 2018-01-21 05:43:00 | n |
| 127254 | IIEES | GHVR | E | 64.9 | 0.58 | 2018-01-21 02:22:21 | 2018-01-21 05:43:00 | n |
| 127255 | IIEES | GHVR | N | 57.8 | 0.58 | 2018-01-21 02:22:23 | 2018-01-21 05:43:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-01-21 02:20:07 | -0.02 | y | 183 | 67 | |
| IIEES | SNGE | N | Sg | E | 2018-01-21 02:20:29 | -0.05 | y | 183 | 67 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-21 02:20:31 | -0.02 | y | 379 | 49 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-21 02:20:36 | 0.54 | y | 416 | 87 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-21 02:20:36 | -0.16 | y | 420 | 100 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-21 02:20:44 | 0.25 | y | 484 | 54 | |
| IIEES | THKV | Z | Pn | E | 2018-01-21 02:21:02 | 13.67 | n | 4 | 516 | 70 |
| IIEES | GRMI | Z | Pn | E | 2018-01-21 02:20:49 | -0.34 | y | 528 | 23 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-21 02:20:50 | 0.33 | y | 528 | 88 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-21 02:20:51 | 0.05 | y | 537 | 71 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-21 02:20:52 | 0.09 | y | 549 | 353 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-21 02:20:59 | -0.09 | y | 605 | 76 | |
| IIEES | NASN | Z | Pn | E | 2018-01-21 02:21:11 | -0.39 | y | 702 | 103 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-21 02:21:33 | -0.39 | y | 876 | 103 | |
| IIEES | TABS | Z | Pn | E | 2018-01-21 02:21:57 | -0.77 | y | 1076 | 92 |
