Magnitude |
4 |
| Date & Time (UTC) | 2018-01-21 05:45:38.0 |
| Date & Time (Local) | 1396/11/1 09:15:38.0 |

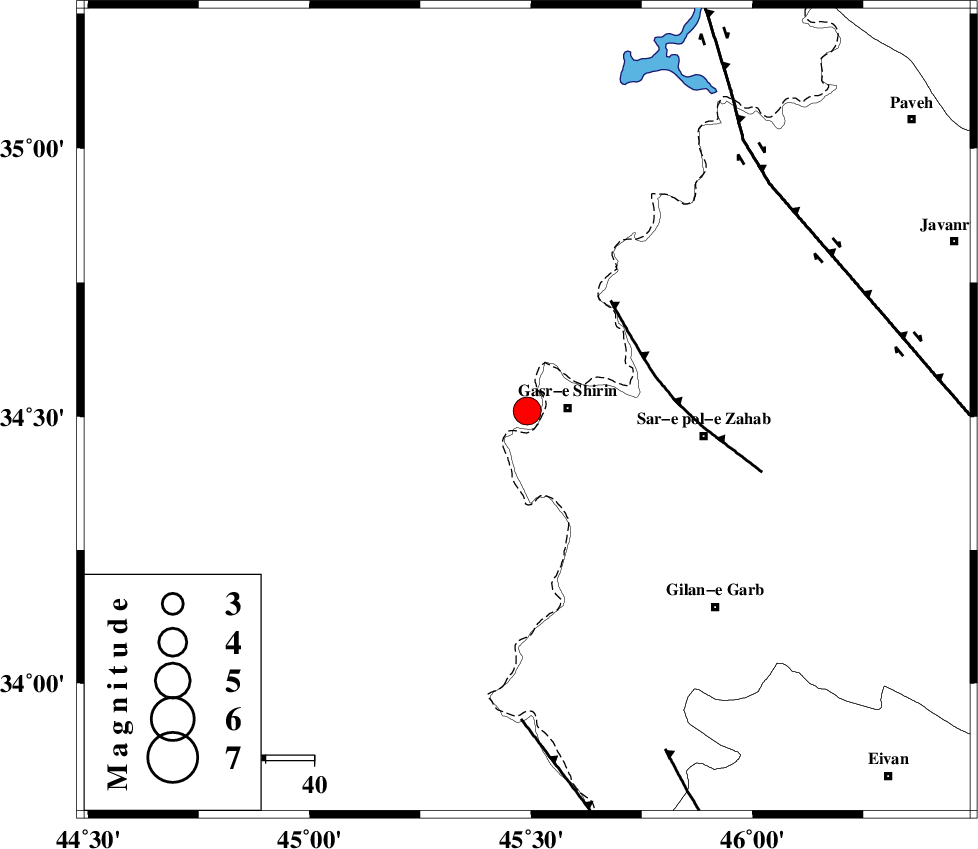

| Location | Lat:34.51 Lon: 45.491 |
| Region | Iraq, 8 km of Qasr-E-Shirin |
Nearest Cities |
|
| 8 km of Qasr-E-Shirin, Kermanshah Province | |
| 12 km North West of Seyyed sohrab, Kermanshah Province | |
| 12 km North of Khosravi, Kermanshah Province | |
| 17 km West of Aqabarar, Kermanshah Province | |
| 26 km West of Mirmiru, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 26 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 64 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 69 km | |
| Number of Phases | 14 |
| RMS | 0.2 |
| Number of Stations | 13 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 5 km |
| Error in Depth | 6.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127269 | IIEES | SNGE | E | 1769.9 | 0.67 | 2018-01-21 05:46:33 | 2018-01-21 06:19:00 | n |
| 127270 | IIEES | SNGE | N | 2420 | 0.52 | 2018-01-21 05:46:33 | 2018-01-21 06:19:00 | n |
| 127271 | IIEES | ASAO | N | 117 | 0.71 | 2018-01-21 05:47:50 | 2018-01-21 06:19:00 | n |
| 127272 | IIEES | GHVR | E | 82.7 | 0.5 | 2018-01-21 05:48:03 | 2018-01-21 06:19:00 | n |
| 127273 | IIEES | GHVR | N | 63.9 | 0.65 | 2018-01-21 05:48:39 | 2018-01-21 06:19:00 | n |
| 127274 | IIEES | DAMV | E | 45 | 0.84 | 2018-01-21 05:48:43 | 2018-01-21 06:19:00 | n |
| 127275 | IIEES | NASN | N | 21.4 | 0.66 | 2018-01-21 05:48:29 | 2018-01-21 06:19:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-01-21 05:46:07 | -0.2 | y | 182 | 69 | |
| IIEES | SNGE | N | Sg | E | 2018-01-21 05:46:30 | 0.14 | y | 182 | 69 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-21 05:46:32 | 0.04 | y | 376 | 49 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-21 05:46:37 | 0.2 | y | 416 | 88 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-21 05:46:38 | 0.15 | y | 421 | 100 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-21 05:46:45 | 0.23 | y | 481 | 55 | |
| IIEES | THKV | Z | Pn | E | 2018-01-21 05:46:49 | -0.58 | y | 515 | 71 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-21 05:46:50 | -0.1 | y | 523 | 24 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-21 05:46:51 | 0.12 | y | 528 | 89 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-21 05:46:52 | 0 | y | 536 | 72 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-21 05:46:53 | 0.13 | y | 542 | 353 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-21 05:47:00 | -0.1 | y | 604 | 76 | |
| IIEES | NASN | Z | Pn | E | 2018-01-21 05:47:13 | -0.18 | y | 705 | 104 | |
| IIEES | AHRM | Z | Pn | E | 2018-01-21 05:47:29 | 0.03 | y | 833 | 137 |
