Magnitude |
3.5 |
| Date & Time (UTC) | 2018-01-22 05:51:54.9 |
| Date & Time (Local) | 1396/11/2 09:21:54.9 |

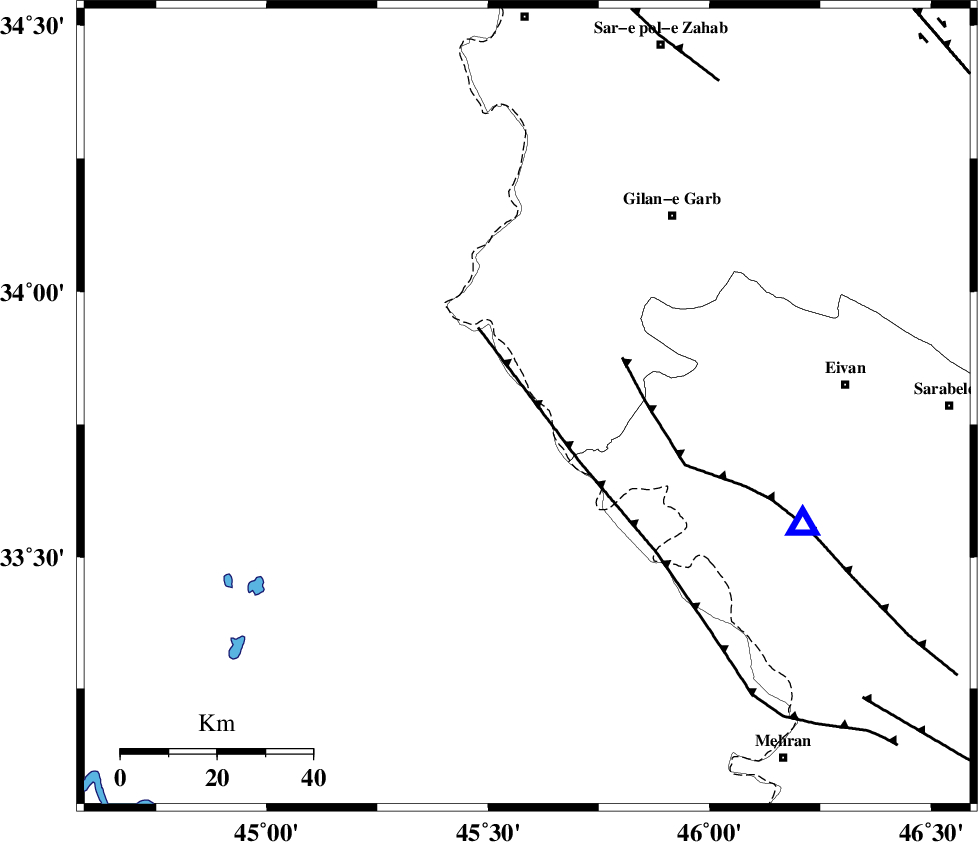

| Location | Lat:33.782 Lon: 45.588 |
| Region | Iraq, 50 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 12 km of Sumar, Kermanshah Province | |
| 44 km South West of Nian, Kermanshah Province | |
| 50 km South West of Gilan-E-Gharb, Kermanshah Province | |
| 53 km South West of Teran, Ilam Province | |
| 57 km South West of Qamarali, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 16 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 22 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 79 km | |
| Number of Phases | 12 |
| RMS | 0.1 |
| Number of Stations | 9 |
| Error in Latitude | 5 km |
| Error in Longitude | 4.2 km |
| Error in Depth | 9.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127324 | IIEES | SNGE | E | 225.3 | 0.57 | 2018-01-22 05:53:05 | 2018-01-22 07:17:00 | n |
| 127325 | IIEES | SNGE | N | 390.2 | 0.7 | 2018-01-22 05:53:05 | 2018-01-22 07:17:00 | n |
| 127326 | IIEES | KHMZ | E | 55.1 | 0.35 | 2018-01-22 05:53:38 | 2018-01-22 07:17:00 | n |
| 127327 | IIEES | KHMZ | N | 79.9 | 0.81 | 2018-01-22 05:53:40 | 2018-01-22 07:17:00 | n |
| 127328 | IIEES | ASAO | E | 35.1 | 0.25 | 2018-01-22 05:53:43 | 2018-01-22 07:17:00 | n |
| 127329 | IIEES | ASAO | N | 36.3 | 0.4 | 2018-01-22 05:53:47 | 2018-01-22 07:17:00 | n |
| 127330 | IIEES | GHVR | E | 62.3 | 0.54 | 2018-01-22 05:54:08 | 2018-01-22 07:17:00 | n |
| 127331 | IIEES | GHVR | N | 30.1 | 0.31 | 2018-01-22 05:54:09 | 2018-01-22 07:17:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2018-01-22 05:52:29 | -0.14 | y | 217 | 48 | |
| IIEES | SNGE | E | Sg | E | 2018-01-22 05:52:56 | 0.03 | y | 217 | 48 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-22 05:52:36 | 0.11 | y | 270 | 357 | |
| IIEES | SRSL | E | Sg | E | 2018-01-22 05:53:11 | -0.05 | y | 270 | 357 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-22 05:52:53 | -0.07 | y | 405 | 89 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-22 05:52:54 | 0.19 | y | 418 | 77 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-22 05:52:55 | 0.01 | y | 427 | 40 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-22 05:53:10 | 2.44 | n | 4 | 525 | 47 |
| IIEES | GHVR | Z | Pn | E | 2018-01-22 05:53:08 | 0.22 | y | 527 | 80 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-22 05:53:12 | -0.05 | y | 559 | 63 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-22 05:53:16 | -0.03 | y | 595 | 20 | |
| IIEES | NASN | Z | Pn | E | 2018-01-22 05:53:27 | -0.29 | y | 681 | 97 |
