Magnitude |
3.4 |
| Date & Time (UTC) | 2018-01-22 21:46:12.6 |
| Date & Time (Local) | 1396/11/3 01:16:12.6 |

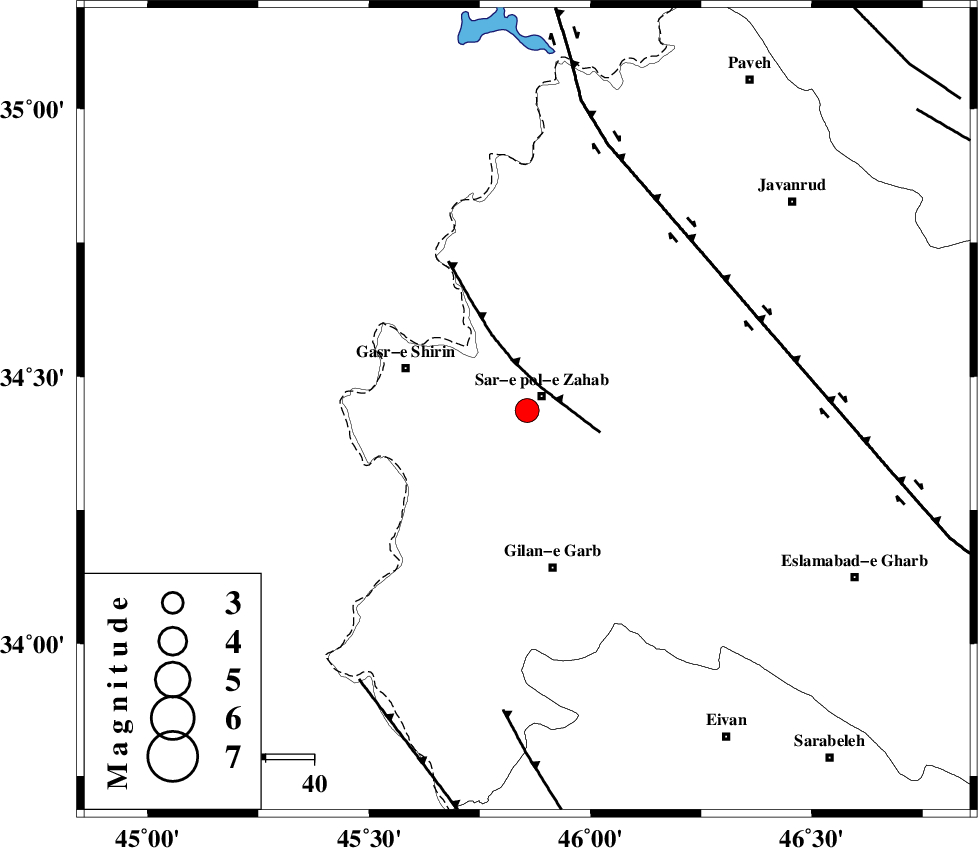

| Location | Lat:34.437 Lon: 45.857 |
| Region | Kermanshah Province, 4 km of Sar-e pol-e zahab |
Nearest Cities |
|
| 4 km of Sar-e pol-e zahab, Kermanshah Province | |
| 7 km North of Tarkveys, Kermanshah Province | |
| 9 km of Qareh belagh, Kermanshah Province | |
| 13 km North of Chub baghan, Kermanshah Province | |
| 17 km South of Mirmiru, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 6 km | |
| HZF4 (Length: 492 km) , Distance to epicenter: 49 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 63 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 5.8 km |
| Error in Longitude | 5.4 km |
| Error in Depth | 8.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127381 | IIEES | SNGE | N | 263 | 0.73 | 2018-01-22 21:47:02 | 2018-01-23 06:46:00 | n |
| 127382 | IIEES | SNGE | E | 270.2 | 0.54 | 2018-01-22 21:47:10 | 2018-01-23 06:46:00 | n |
| 127383 | IIEES | SRSL | N | 1024.5 | 0.49 | 2018-01-22 21:47:13 | 2018-01-23 06:46:00 | n |
| 127384 | IIEES | SRSL | E | 656 | 0.49 | 2018-01-22 21:47:15 | 2018-01-23 06:46:00 | n |
| 127385 | IIEES | KHMZ | N | 46.7 | 0.85 | 2018-01-22 21:48:27 | 2018-01-23 06:46:00 | n |
| 127386 | IIEES | GIDE | N | 19.2 | 0.6 | 2018-01-22 21:48:39 | 2018-01-23 06:46:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pg | E | 2018-01-22 21:46:37 | -0.5 | y | 155 | 62 | |
| IIEES | SNGE | N | Sg | E | 2018-01-22 21:46:57 | 0.12 | y | 155 | 62 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-22 21:46:45 | -0.18 | y | 201 | 349 | |
| IIEES | SRSL | N | Sg | E | 2018-01-22 21:47:09 | 0.18 | y | 201 | 349 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-22 21:47:04 | 0.19 | y | 357 | 45 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-22 21:47:08 | 0.32 | y | 383 | 87 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-22 21:47:08 | -0.23 | y | 387 | 100 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-22 21:47:17 | 0.05 | y | 459 | 52 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-22 21:47:22 | 0.39 | y | 495 | 88 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-22 21:47:24 | -0.19 | y | 518 | 20 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-22 21:47:31 | -0.04 | y | 573 | 75 |
