Magnitude |
4.4 |
| Date & Time (UTC) | 2018-01-26 20:17:36.5 |
| Date & Time (Local) | 1396/11/6 23:47:36.5 |

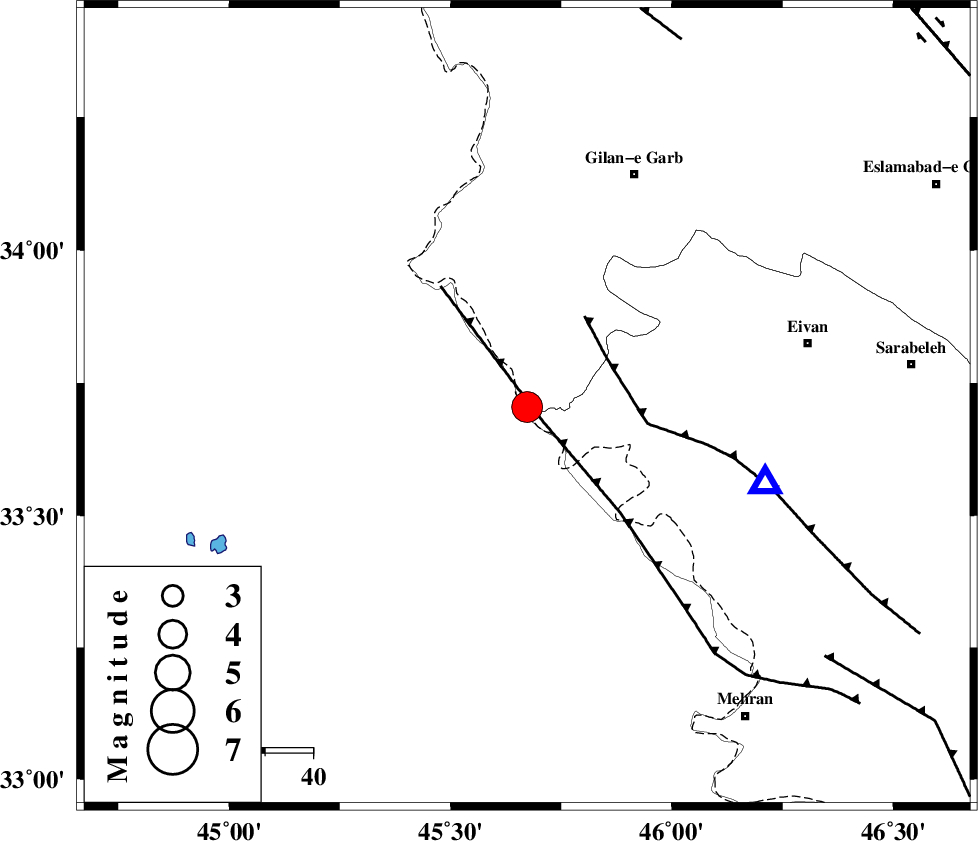

| Location | Lat:33.705 Lon: 45.673 |
| Region | Kermanshah Province, 54 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 20 km South of Sumar, Kermanshah Province | |
| 45 km South West of Nian, Kermanshah Province | |
| 50 km South West of Teran, Ilam Province | |
| 53 km South West of Zarneh, Ilam Province | |
| 54 km South West of Gilan-E-Gharb, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 4 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 20 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 81 km | |
| Number of Phases | 21 |
| RMS | 0.4 |
| Number of Stations | 19 |
| Error in Latitude | 3 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127453 | IIEES | ILBA | N | 14111.6 | 0.52 | 2018-01-26 20:18:04 | 2018-01-27 06:22:00 | n |
| 127454 | IIEES | SNGE | N | 2249.9 | 0.59 | 2018-01-26 20:18:46 | 2018-01-27 06:22:00 | n |
| 127455 | IIEES | SRSL | E | 2193 | 0.36 | 2018-01-26 20:18:55 | 2018-01-27 06:22:00 | n |
| 127456 | IIEES | SRSL | N | 2553.2 | 0.57 | 2018-01-26 20:18:59 | 2018-01-27 06:22:00 | n |
| 127457 | IIEES | GHVR | E | 119.5 | 0.44 | 2018-01-26 20:19:50 | 2018-01-27 06:22:00 | n |
| 127458 | IIEES | GHVR | N | 131.3 | 0.77 | 2018-01-26 20:19:52 | 2018-01-27 06:22:00 | n |
| 127459 | IIEES | THKV | N | 361.9 | 1.08 | 2018-01-26 20:20:30 | 2018-01-27 06:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-26 20:17:45 | -0.34 | y | 50.4 | 100 | |
| IIEES | ILBA | N | Sg | E | 2018-01-26 20:17:52 | 0.16 | y | 50.4 | 100 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-26 20:18:11 | 0.03 | y | 218 | 45 | |
| IIEES | SNGE | N | Sg | E | 2018-01-26 20:18:38 | -0.01 | y | 218 | 45 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-26 20:18:18 | -0.03 | y | 279 | 356 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-26 20:18:33 | 0.12 | y | 398 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-26 20:18:35 | 0.26 | y | 412 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-26 20:18:38 | 0.48 | y | 428 | 39 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-26 20:18:49 | 0.54 | y | 521 | 79 | |
| IIEES | GIDE | Z | Pn | E | 2018-01-26 20:18:49 | -0.03 | y | 525 | 46 | |
| IIEES | THKV | Z | Pn | E | 2018-01-26 20:18:50 | -0.02 | y | 536 | 61 | |
| IIEES | CHTH | Z | Pn | E | 2018-01-26 20:18:52 | -0.49 | y | 555 | 62 | |
| IIEES | GRMI | Z | Pn | E | 2018-01-26 20:18:58 | 0.07 | y | 600 | 19 | |
| IIEES | DAMV | Z | Pn | E | 2018-01-26 20:19:00 | -0.23 | y | 615 | 68 | |
| IIEES | MAKU | Z | Pn | E | 2018-01-26 20:19:02 | -0.16 | y | 633 | 352 | |
| IIEES | NASN | Z | Pn | E | 2018-01-26 20:19:07 | -0.29 | y | 672 | 97 | |
| IIEES | AHRM | Z | Pn | E | 2018-01-26 20:19:18 | 0.78 | y | 758 | 134 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-26 20:19:28 | -0.94 | y | 845 | 97 | |
| IIEES | SHRO | Z | Pn | E | 2018-01-26 20:19:46 | 0.22 | y | 979 | 72 | |
| IIEES | MRVT | Z | Pn | E | 2018-01-26 20:19:53 | 0.09 | y | 1039 | 62 | |
| IIEES | TABS | Z | Pn | E | 2018-01-26 20:19:54 | -1.67 | y | 1061 | 87 |
