Magnitude |
2.9 |
| Date & Time (UTC) | 2018-01-29 18:01:51.0 |
| Date & Time (Local) | 1396/11/9 21:31:51.0 |

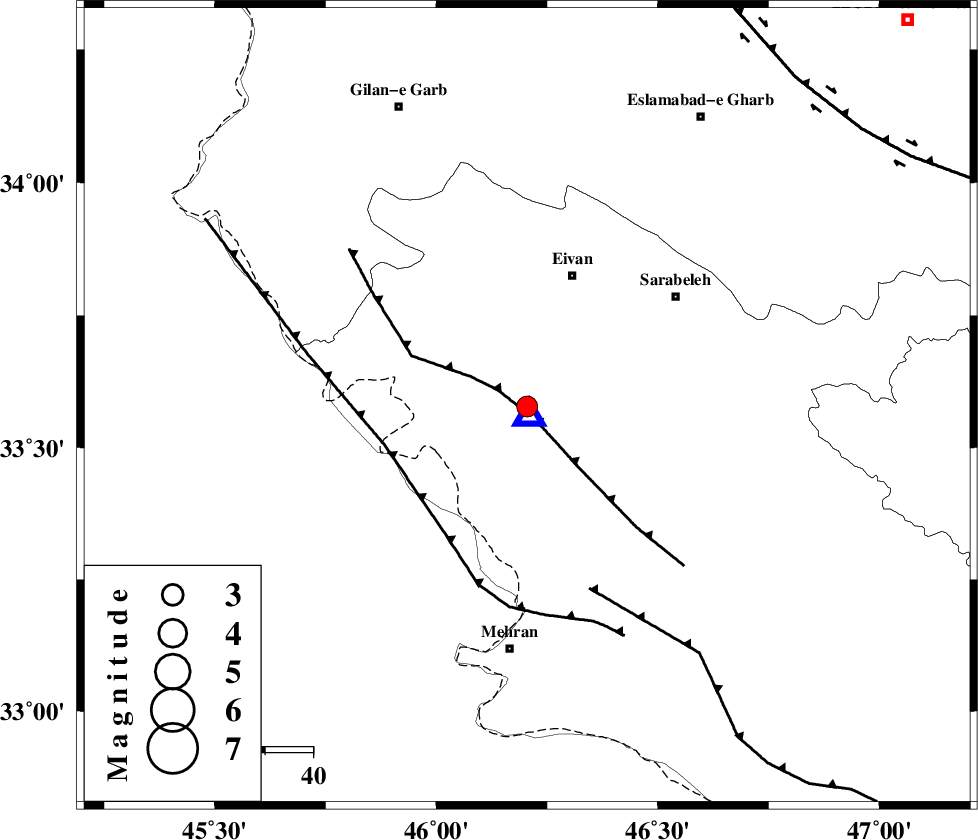

| Location | Lat:33.578 Lon: 46.205 |
| Region | Ilam Province, 22 km -West of Ilam |
Nearest Cities |
|
| 12 km North of Salehabad, Ilam Province | |
| 14 km South of Chavar, Ilam Province | |
| 22 km West of Ilam, Ilam Province | |
| 29 km North West of Mehr, Ilam Province | |
| 29 km South West of Eyvan, Ilam Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 3 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 31 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 40 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127597 | IIEES | ILBA | N | 25412.2 | 0.09 | 2018-01-29 18:01:54 | 2018-01-30 07:59:00 | n |
| 127598 | IIEES | ILBA | E | 24589.1 | 0.12 | 2018-01-29 18:01:54 | 2018-01-30 07:59:00 | n |
| 127599 | IIEES | SNGE | N | 62.6 | 0.4 | 2018-01-29 18:02:53 | 2018-01-30 07:59:00 | n |
| 127600 | IIEES | SNGE | E | 60.4 | 0.45 | 2018-01-29 18:02:53 | 2018-01-30 07:59:00 | n |
| 127601 | IIEES | SRSL | E | 27.5 | 0.42 | 2018-01-29 18:03:22 | 2018-01-30 07:59:00 | n |
| 127602 | IIEES | SRSL | N | 23.7 | 1.12 | 2018-01-29 18:03:26 | 2018-01-30 07:59:00 | n |
| 127603 | IIEES | GHVR | N | 12 | 0.88 | 2018-01-29 18:04:28 | 2018-01-30 07:59:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-29 18:01:52 | -0.52 | y | 5.21 | 3 | |
| IIEES | ILBA | N | Sg | E | 2018-01-29 18:01:54 | 0.39 | y | 5.21 | 3 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-29 18:02:24 | -0.19 | y | 198 | 32 | |
| IIEES | SNGE | N | Sg | E | 2018-01-29 18:02:50 | -0.1 | y | 198 | 32 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-29 18:02:37 | 0.18 | y | 301 | 347 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-29 18:02:45 | 0.04 | y | 369 | 72 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-29 18:02:59 | 0.31 | y | 476 | 76 |
