Magnitude |
3.1 |
| Date & Time (UTC) | 2018-01-29 18:00:18.7 |
| Date & Time (Local) | 1396/11/9 21:30:18.7 |

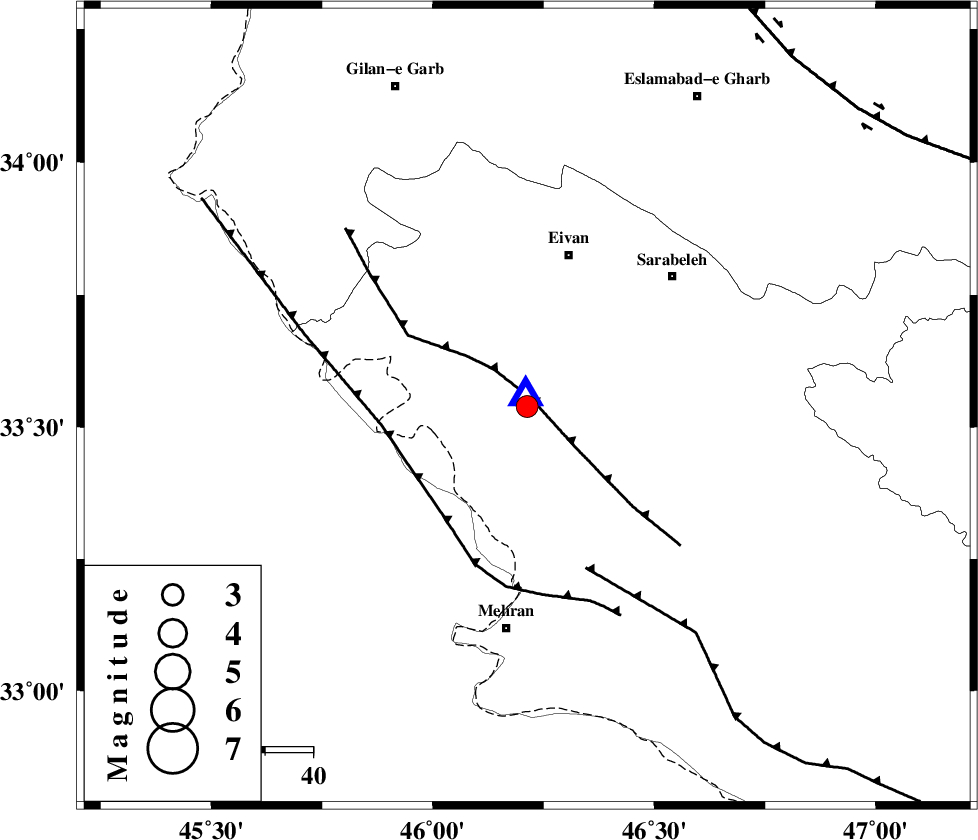

| Location | Lat:33.539 Lon: 46.213 |
| Region | Ilam Province, 23 km South-West of Ilam |
Nearest Cities |
|
| 8 km North of Salehabad, Ilam Province | |
| 17 km South of Chavar, Ilam Province | |
| 23 km South West of Ilam, Ilam Province | |
| 26 km North West of Mehr, Ilam Province | |
| 31 km North West of Galeh-yedarre-hemalakshahi, Ilam Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 2 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 29 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 36 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 3.2 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127604 | IIEES | ILBA | N | 15274.1 | 0.12 | 2018-01-29 18:00:23 | 2018-01-30 07:59:00 | n |
| 127605 | IIEES | ILBA | E | 24821.2 | 0.19 | 2018-01-29 18:00:23 | 2018-01-30 07:59:00 | n |
| 127606 | IIEES | SNGE | E | 101.1 | 0.48 | 2018-01-29 18:01:21 | 2018-01-30 07:59:00 | n |
| 127607 | IIEES | SNGE | N | 102.8 | 0.45 | 2018-01-29 18:01:24 | 2018-01-30 07:59:00 | n |
| 127608 | IIEES | SRSL | N | 56.4 | 0.66 | 2018-01-29 18:01:54 | 2018-01-30 07:59:00 | n |
| 127609 | IIEES | SRSL | E | 59.9 | 1.1 | 2018-01-29 18:01:57 | 2018-01-30 07:59:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-01-29 18:00:20 | -0.28 | y | 9.53 | 357 | |
| IIEES | ILBA | N | Sg | E | 2018-01-29 18:00:22 | 0.22 | y | 9.53 | 357 | |
| IIEES | SNGE | Z | Pn | E | 2018-01-29 18:00:52 | 0 | y | 202 | 31 | |
| IIEES | SNGE | N | Sg | E | 2018-01-29 18:01:18 | -0.09 | y | 202 | 31 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-29 18:01:05 | 0.03 | y | 305 | 347 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-29 18:01:10 | 0.03 | y | 349 | 85 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-29 18:01:13 | 0.13 | y | 369 | 71 |
