Magnitude |
3 |
| Date & Time (UTC) | 2018-01-29 16:22:10.8 |
| Date & Time (Local) | 1396/11/9 19:52:10.8 |

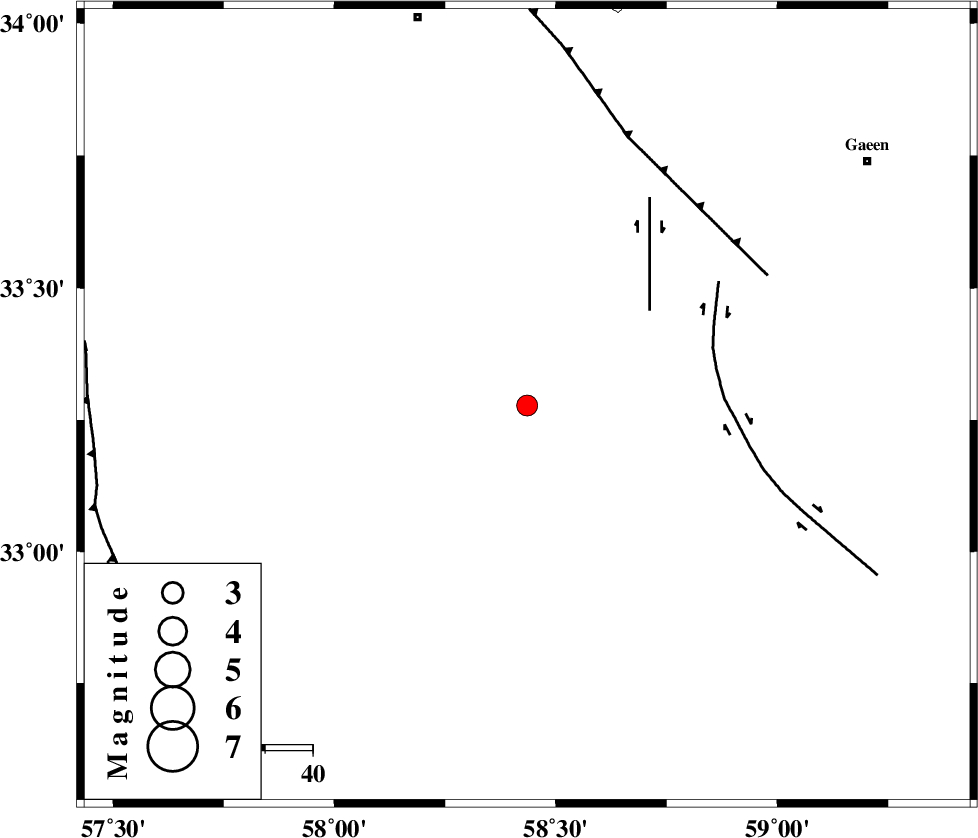

| Location | Lat:33.277 Lon: 58.435 |
| Region | Khorasan(center) Province, 85 km South-East of Ferdows |
Nearest Cities |
|
| 37 km North of Hur, Khorasan(south) Province | |
| 42 km West of Musaviyeh, Khorasan(south) Province | |
| 43 km South of Seqaleh, Khorasan(center) Province | |
| 51 km South West of Qumanjan, Khorasan(south) Province | |
| 64 km North West of Konder, Khorasan(south) Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| DUSTABAD_F (Length: 22 km) , Distance to epicenter: 33 km | |
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 40 km | |
| FERDOWS_F (Length: 101 km) , Distance to epicenter: 57 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2.6 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127610 | IIEES | TABS | N | 154 | 0.35 | 2018-01-29 16:22:49 | 2018-01-30 07:59:00 | n |
| 127611 | IIEES | YZKH | E | 28.4 | 0.41 | 2018-01-29 16:24:04 | 2018-01-30 07:59:00 | n |
| 127612 | IIEES | YZKH | N | 28.7 | 0.35 | 2018-01-29 16:24:08 | 2018-01-30 07:59:00 | n |
| 127613 | IIEES | KRBR | E | 25.8 | 0.55 | 2018-01-29 16:24:10 | 2018-01-30 07:59:00 | n |
| 127614 | IIEES | KRBR | N | 20.6 | 0.55 | 2018-01-29 16:24:18 | 2018-01-30 07:59:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | TABS | Z | Pg | E | 2018-01-29 16:22:32 | 0.38 | y | 129 | 289 | |
| IIEES | TABS | N | Sg | E | 2018-01-29 16:22:48 | -0.28 | y | 129 | 289 | |
| IIEES | BSRN | Z | Pg | E | 2018-01-29 16:22:37 | -0.09 | y | 159 | 156 | |
| IIEES | SHRT | Z | Pg | E | 2018-01-29 16:22:40 | 0 | y | 177 | 76 | |
| IIEES | YZKH | Z | Pn | E | 2018-01-29 16:23:05 | 0.28 | y | 373 | 256 | |
| IIEES | SHRO | Z | Pn | E | 2018-01-29 16:23:04 | -0.22 | y | 376 | 324 | |
| IIEES | KRBR | Z | Pn | E | 2018-01-29 16:23:07 | -0.13 | y | 398 | 204 | |
| IIEES | MRVT | Z | Pn | E | 2018-01-29 16:23:24 | 0.08 | y | 531 | 337 |
