Magnitude |
3.1 |
| Date & Time (UTC) | 2018-02-03 19:45:40.3 |
| Date & Time (Local) | 1396/11/14 23:15:40.3 |

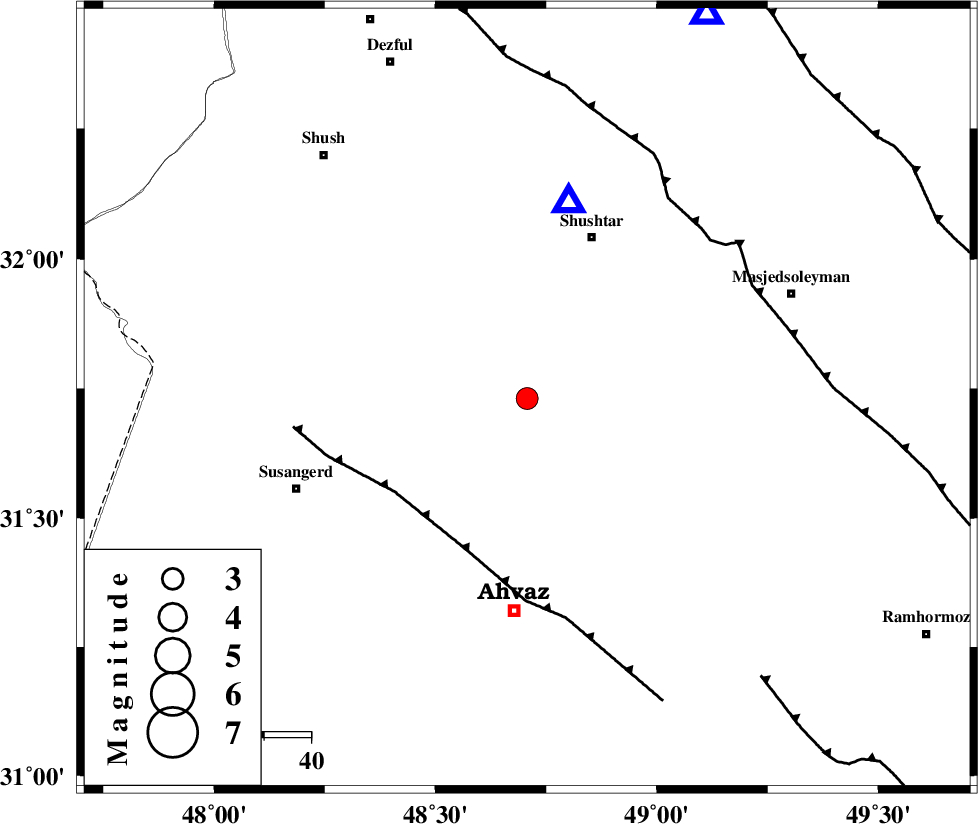

| Location | Lat:31.731 Lon: 48.707 |
| Region | Khoozestan Province, 46 km North of Ahvaz |
Nearest Cities |
|
| 21 km West of Arabhasan, Khoozestan Province | |
| 23 km North West of Mollasani, Khoozestan Province | |
| 26 km North West of Talieh, Khoozestan Province | |
| 27 km South West of Mehdiabad, Khoozestan Province | |
| 32 km North West of Veys, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 35 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 52 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 78 km | |
| Number of Phases | 9 |
| RMS | 0.5 |
| Number of Stations | 9 |
| Error in Latitude | 5.9 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127793 | IIEES | ILBA | E | 55.1 | 0.64 | 2018-02-03 19:47:27 | 2018-02-04 05:38:00 | n |
| 127794 | IIEES | ILBA | N | 61.5 | 0.64 | 2018-02-03 19:47:27 | 2018-02-04 05:38:00 | n |
| 127795 | IIEES | GHVR | E | 18.7 | 0.66 | 2018-02-03 19:47:33 | 2018-02-04 05:38:00 | n |
| 127796 | IIEES | GHVR | N | 24.2 | 0.8 | 2018-02-03 19:47:41 | 2018-02-04 05:38:00 | n |
| 127797 | IIEES | AHRM | E | 19.6 | 0.41 | 2018-02-03 19:47:23 | 2018-02-04 05:38:00 | n |
| 127798 | IIEES | AHRM | N | 17.3 | 0.55 | 2018-02-03 19:47:28 | 2018-02-04 05:38:00 | n |
| 127799 | IIEES | SRSL | E | 11.3 | 0.79 | 2018-02-03 19:48:02 | 2018-02-04 05:38:00 | n |
| 127800 | IIEES | SRSL | N | 8.6 | 0.4 | 2018-02-03 19:48:02 | 2018-02-04 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-02-03 19:46:19 | 0.4 | y | 252 | 28 | |
| IIEES | ILBA | Z | Pn | E | 2018-02-03 19:46:27 | 0.17 | y | 315 | 313 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-03 19:46:29 | -0.24 | y | 336 | 21 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-03 19:46:36 | 0.65 | y | 386 | 37 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-03 19:46:36 | -0.04 | y | 394 | 342 | |
| IIEES | NASN | Z | Pn | E | 2018-02-03 19:46:38 | -0.12 | y | 404 | 72 | |
| IIEES | AHRM | Z | Pn | E | 2018-02-03 19:46:38 | 0.31 | y | 404 | 141 | |
| IIEES | YZKH | Z | Pn | E | 2018-02-03 19:46:56 | -1 | y | 560 | 81 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-03 19:46:59 | -0.7 | y | 582 | 330 |
