Magnitude |
2.7 |
| Date & Time (UTC) | 2018-02-04 02:02:06.8 |
| Date & Time (Local) | 1396/11/15 05:32:06.8 |

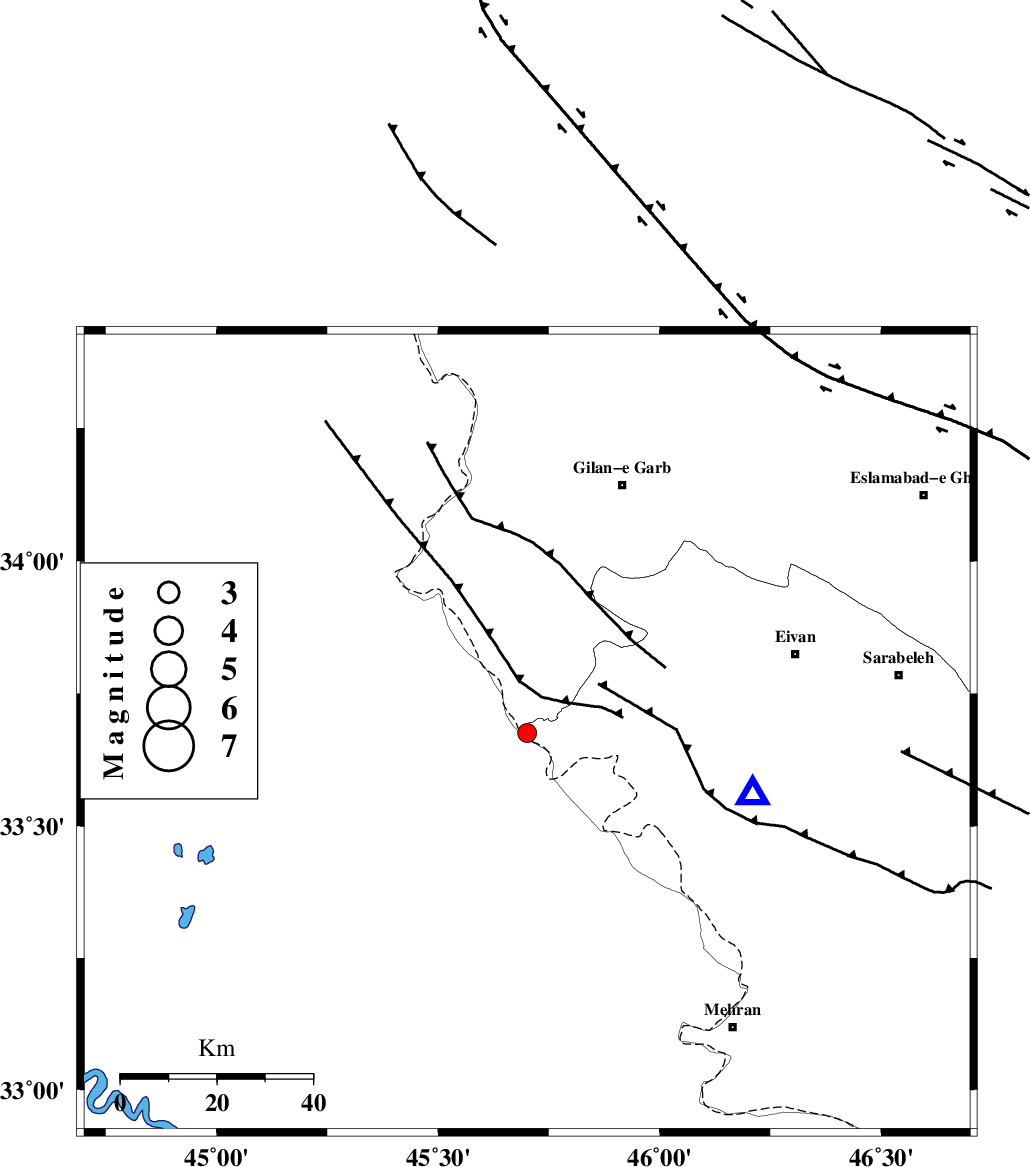

| Location | Lat:33.676 Lon: 45.701 |
| Region | Ilam Province, 56 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 23 km South of Sumar, Kermanshah Province | |
| 46 km South West of Nian, Kermanshah Province | |
| 50 km South West of Teran, Ilam Province | |
| 50 km North West of Salehabad, Ilam Province | |
| 52 km South West of Zarneh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 1 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 19 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 77 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 2.5 km |
| Error in Longitude | 4.6 km |
| Error in Depth | 5.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127824 | IIEES | ILBA | N | 893.5 | 0.17 | 2018-02-04 02:02:22 | 2018-02-04 05:38:00 | n |
| 127825 | IIEES | ILBA | E | 563.5 | 0.14 | 2018-02-04 02:02:23 | 2018-02-04 05:38:00 | n |
| 127826 | IIEES | SNGE | N | 50.2 | 0.65 | 2018-02-04 02:03:12 | 2018-02-04 05:38:00 | n |
| 127827 | IIEES | SNGE | E | 35.4 | 0.46 | 2018-02-04 02:03:14 | 2018-02-04 05:38:00 | n |
| 127828 | IIEES | SRSL | E | 27.1 | 0.45 | 2018-02-04 02:03:32 | 2018-02-04 05:38:00 | n |
| 127829 | IIEES | SRSL | N | 23.7 | 0.33 | 2018-02-04 02:03:33 | 2018-02-04 05:38:00 | n |
| 127830 | IIEES | ASAO | N | 7.1 | 0.33 | 2018-02-04 02:03:52 | 2018-02-04 05:38:00 | n |
| 127831 | IIEES | GHVR | N | 6.5 | 0.36 | 2018-02-04 02:04:19 | 2018-02-04 05:38:00 | n |
| 127832 | IIEES | GHVR | E | 4.6 | 0.42 | 2018-02-04 02:04:28 | 2018-02-04 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-02-04 02:02:15 | -0.1 | y | 47.3 | 97 | |
| IIEES | ILBA | N | Sg | E | 2018-02-04 02:02:21 | 0.03 | y | 47.3 | 97 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-04 02:02:41 | -0.13 | y | 218 | 43 | |
| IIEES | SNGE | N | Sg | E | 2018-02-04 02:03:08 | -0.01 | y | 218 | 43 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-04 02:02:49 | 0.04 | y | 282 | 355 | |
| IIEES | KHMZ | Z | Pn | E | 2018-02-04 02:03:03 | -0.1 | y | 395 | 88 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-04 02:03:06 | 0.4 | y | 411 | 75 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-04 02:03:18 | -0.09 | y | 519 | 79 |
