Magnitude |
3 |
| Date & Time (UTC) | 2018-02-04 14:20:59.7 |
| Date & Time (Local) | 1396/11/15 17:50:59.7 |

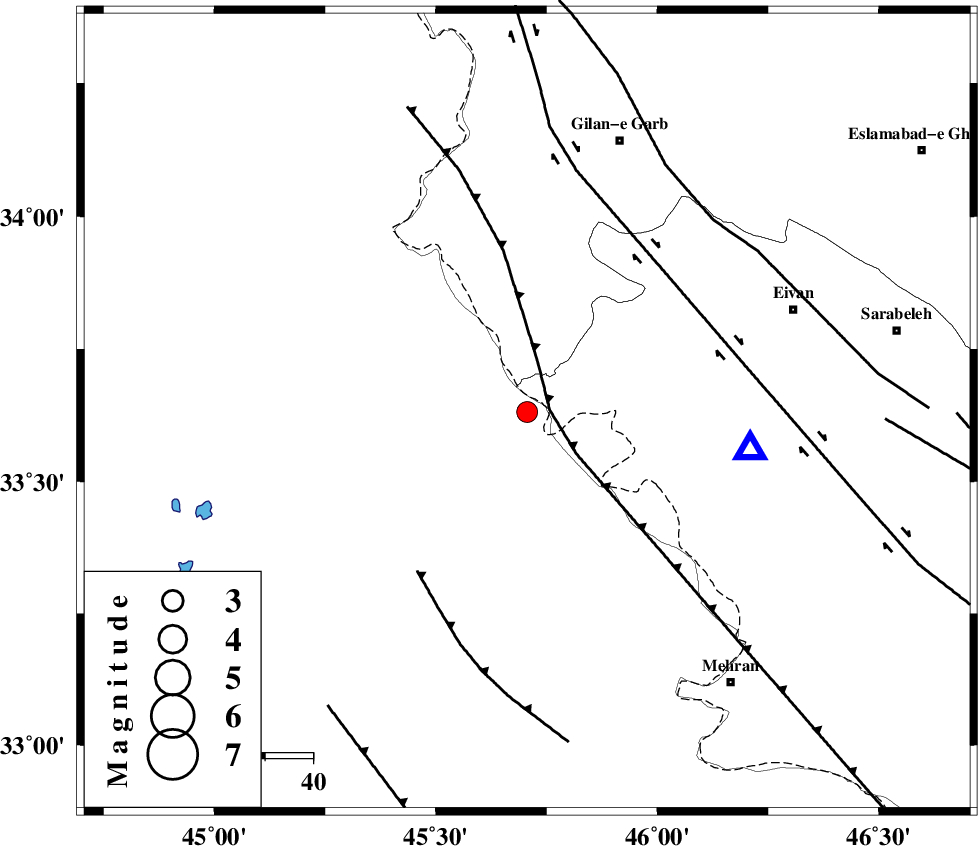

| Location | Lat:33.631 Lon: 45.706 |
| Region | Iraq, 60 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 28 km South of Sumar, Kermanshah Province | |
| 48 km North West of Salehabad, Ilam Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 52 km West of Chavar, Ilam Province | |
| 53 km South West of Teran, Ilam Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 5 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 23 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 74 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 6 |
| Error in Latitude | 8.4 km |
| Error in Longitude | 7.2 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127884 | IIEES | ILBA | E | 1396.2 | 0.37 | 2018-02-04 14:21:15 | 2018-02-05 06:05:00 | n |
| 127885 | IIEES | ILBA | N | 2001.5 | 0.3 | 2018-02-04 14:21:15 | 2018-02-05 06:05:00 | n |
| 127886 | IIEES | SNGE | N | 121.3 | 0.54 | 2018-02-04 14:22:07 | 2018-02-05 06:05:00 | n |
| 127887 | IIEES | SNGE | E | 89.3 | 0.84 | 2018-02-04 14:22:08 | 2018-02-05 06:05:00 | n |
| 127888 | IIEES | SRSL | N | 50.7 | 0.36 | 2018-02-04 14:22:29 | 2018-02-05 06:05:00 | n |
| 127889 | IIEES | SRSL | E | 54.2 | 0.45 | 2018-02-04 14:22:30 | 2018-02-05 06:05:00 | n |
| 127890 | IIEES | ASAO | E | 9.1 | 0.23 | 2018-02-04 14:22:46 | 2018-02-05 06:05:00 | n |
| 127891 | IIEES | GHVR | E | 11.7 | 0.44 | 2018-02-04 14:23:10 | 2018-02-05 06:05:00 | n |
| 127892 | IIEES | GHVR | N | 7.9 | 0.65 | 2018-02-04 14:23:18 | 2018-02-05 06:05:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-02-04 14:21:08 | 0.01 | y | 46.6 | 91 | |
| IIEES | ILBA | N | Sg | E | 2018-02-04 14:21:14 | -0.01 | y | 46.6 | 91 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-04 14:21:35 | -0.14 | y | 222 | 43 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-04 14:21:43 | 0.02 | y | 287 | 355 | |
| IIEES | KHMZ | Z | Pn | E | 2018-02-04 14:21:56 | -0.29 | y | 395 | 87 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-04 14:21:59 | 0.42 | y | 411 | 74 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-04 14:22:12 | 0.02 | y | 520 | 78 |
