Magnitude |
3 |
| Date & Time (UTC) | 2018-02-06 03:54:41.4 |
| Date & Time (Local) | 1396/11/17 07:24:41.4 |

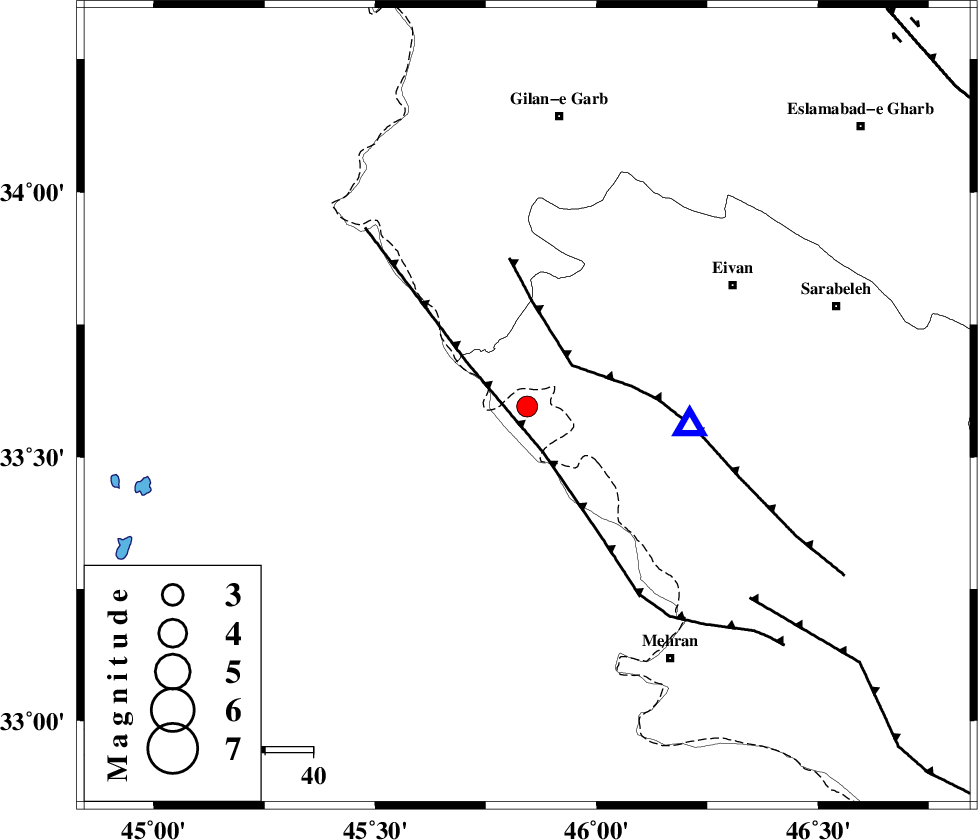

| Location | Lat:33.596 Lon: 45.843 |
| Region | Ilam Province, 61 km South of Gilan-E-Gharb |
Nearest Cities |
|
| 35 km North West of Salehabad, Ilam Province | |
| 37 km South East of Sumar, Kermanshah Province | |
| 41 km West of Chavar, Ilam Province | |
| 48 km South West of Teran, Ilam Province | |
| 48 km South West of Zarneh, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 11 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 13 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 62 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 7.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 127933 | IIEES | ILBA | N | 3981.5 | 0.3 | 2018-02-06 03:54:53 | 2018-02-06 06:07:00 | n |
| 127934 | IIEES | ILBA | E | 4570.5 | 0.32 | 2018-02-06 03:54:53 | 2018-02-06 06:07:00 | n |
| 127935 | IIEES | SNGE | E | 77.7 | 0.63 | 2018-02-06 03:55:49 | 2018-02-06 06:07:00 | n |
| 127936 | IIEES | SNGE | N | 116.8 | 0.67 | 2018-02-06 03:55:49 | 2018-02-06 06:07:00 | n |
| 127937 | IIEES | SRSL | N | 38.3 | 0.53 | 2018-02-06 03:56:05 | 2018-02-06 06:07:00 | n |
| 127938 | IIEES | KHMZ | E | 16.3 | 0.56 | 2018-02-06 03:56:23 | 2018-02-06 06:07:00 | n |
| 127939 | IIEES | ASAO | N | 13.4 | 0.19 | 2018-02-06 03:56:24 | 2018-02-06 06:07:00 | n |
| 127940 | IIEES | ASAO | E | 10.8 | 0.57 | 2018-02-06 03:56:26 | 2018-02-06 06:07:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-02-06 03:54:47 | -0.09 | y | 34 | 85 | |
| IIEES | ILBA | N | Sg | E | 2018-02-06 03:54:52 | 0.06 | y | 34 | 85 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-06 03:55:16 | 0.3 | y | 216 | 39 | |
| IIEES | SNGE | N | Sg | E | 2018-02-06 03:55:42 | -0.09 | y | 216 | 39 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-06 03:55:25 | -0.13 | y | 293 | 353 | |
| IIEES | KHMZ | Z | Pn | E | 2018-02-06 03:55:36 | -0.35 | y | 383 | 86 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-06 03:55:39 | 0.26 | y | 400 | 74 |
