Magnitude |
3.3 |
| Date & Time (UTC) | 2018-02-08 06:36:07.4 |
| Date & Time (Local) | 1396/11/19 10:06:07.4 |

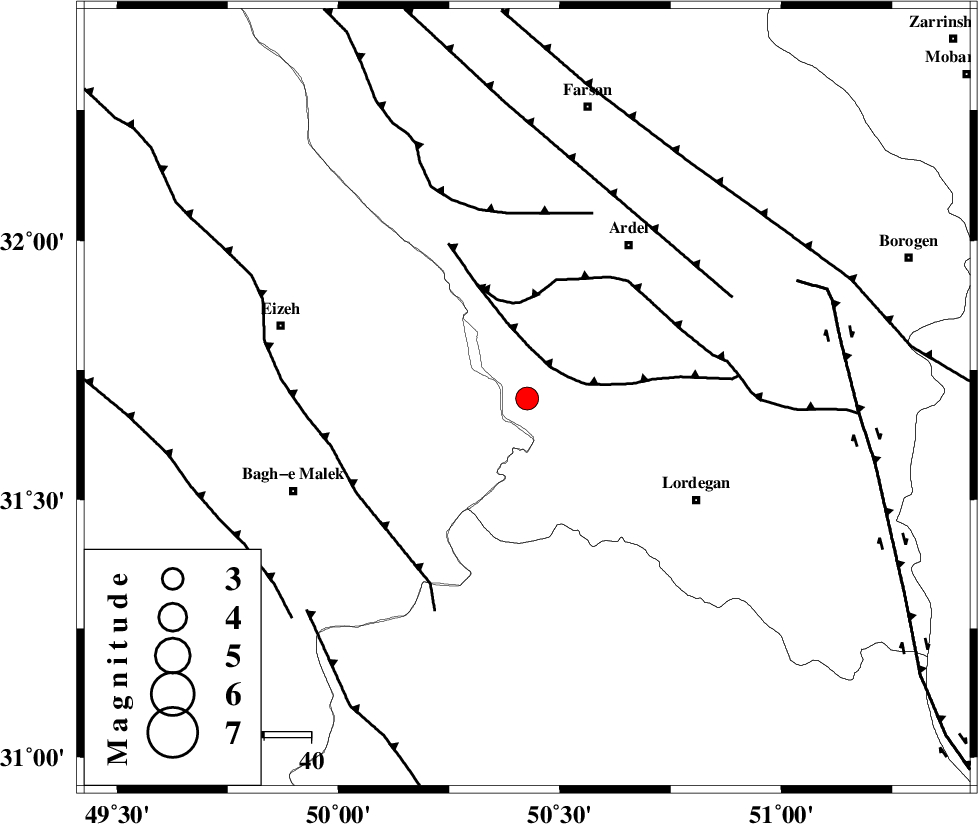

| Location | Lat:31.695 Lon: 50.426 |
| Region | Chaharmahal Bakhtiari Province, 39 km South-West of Ardel |
Nearest Cities |
|
| 13 km West of Sarkhun, Chaharmahal Bakhtiari Province | |
| 16 km East of Dehdez, Khoozestan Province | |
| 30 km South West of Dupelan, Chaharmahal Bakhtiari Province | |
| 35 km North West of Armand-e olia, Chaharmahal Bakhtiari Province | |
| 39 km South West of Ardel, Chaharmahal Bakhtiari Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SABZKUH_F (Length: 67 km) , Distance to epicenter: 8 km | |
| DOPOLAN_F (Length: 107 km) , Distance to epicenter: 21 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 40 km | |
| Number of Phases | 12 |
| RMS | 0.1 |
| Number of Stations | 10 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 7.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128102 | IIEES | KHMZ | E | 85.2 | 0.35 | 2018-02-08 06:37:18 | 2018-02-10 10:57:00 | n |
| 128103 | IIEES | GHVR | E | 56.9 | 0.53 | 2018-02-08 06:37:42 | 2018-02-10 10:57:00 | n |
| 128104 | IIEES | GHVR | N | 73.5 | 0.6 | 2018-02-08 06:37:47 | 2018-02-10 10:57:00 | n |
| 128105 | IIEES | ASAO | N | 111.1 | 0.86 | 2018-02-08 06:37:48 | 2018-02-10 10:57:00 | n |
| 128106 | IIEES | ILBA | E | 42.7 | 0.48 | 2018-02-08 06:38:18 | 2018-02-10 10:57:00 | n |
| 128107 | IIEES | ILBA | N | 57.9 | 0.69 | 2018-02-08 06:38:26 | 2018-02-10 10:57:00 | n |
| 128108 | IIEES | SNGE | E | 13.1 | 0.75 | 2018-02-08 06:38:39 | 2018-02-10 10:57:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-02-08 06:36:43 | -0.07 | y | 231 | 349 | |
| IIEES | KHMZ | N | Sg | E | 2018-02-08 06:37:12 | -0.01 | y | 231 | 349 | |
| IIEES | NASN | Z | Pn | E | 2018-02-08 06:36:46 | -0.15 | y | 256 | 61 | |
| IIEES | NASN | N | Sg | E | 2018-02-08 06:37:19 | 0.01 | y | 256 | 61 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-08 06:36:54 | 0.04 | y | 318 | 14 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-08 06:36:54 | -0.04 | y | 319 | 353 | |
| IIEES | YZKH | Z | Pn | E | 2018-02-08 06:37:05 | 0.04 | y | 401 | 78 | |
| IIEES | ILBA | Z | Pn | E | 2018-02-08 06:37:09 | -1.75 | n | 4 | 450 | 300 |
| IIEES | DAMV | Z | Pn | E | 2018-02-08 06:37:12 | 0.2 | y | 459 | 18 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-08 06:37:14 | 0.03 | y | 473 | 324 | |
| IIEES | TABS | Z | Pn | E | 2018-02-08 06:37:37 | -0.09 | y | 664 | 69 | |
| IIEES | BSRN | Z | Pn | E | 2018-02-08 06:37:57 | 0.19 | y | 824 | 86 |
