Magnitude |
4 |
| Date & Time (UTC) | 2018-02-16 18:22:00.3 |
| Date & Time (Local) | 1396/11/27 21:52:00.3 |

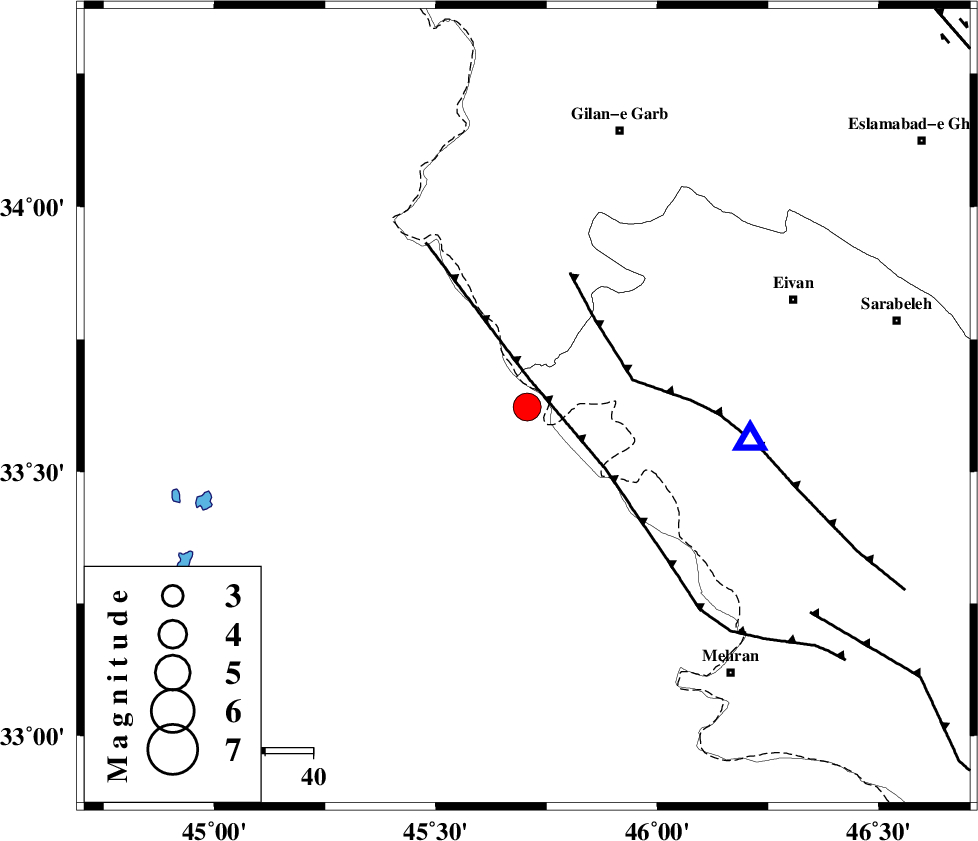

| Location | Lat:33.622 Lon: 45.706 |
| Region | Iraq, 61 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 29 km South of Sumar, Kermanshah Province | |
| 48 km North West of Salehabad, Ilam Province | |
| 51 km South West of Nian, Kermanshah Province | |
| 53 km West of Chavar, Ilam Province | |
| 53 km South West of Teran, Ilam Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 6 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 23 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 73 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 7.1 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128571 | IIEES | ILBA | E | 8351.2 | 0.57 | 2018-02-16 18:22:22 | 2018-02-17 05:38:00 | n |
| 128572 | IIEES | SRSL | E | 503.6 | 0.43 | 2018-02-16 18:23:25 | 2018-02-17 05:38:00 | n |
| 128573 | IIEES | SRSL | N | 958.4 | 0.51 | 2018-02-16 18:23:28 | 2018-02-17 05:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-02-16 18:22:08 | 0.05 | y | 46.5 | 89 | |
| IIEES | ILBA | N | Sg | E | 2018-02-16 18:22:15 | 0.06 | y | 46.5 | 89 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-16 18:22:44 | 0.15 | y | 288 | 355 | |
| IIEES | SRSL | N | S | E | 2018-02-16 18:23:16 | 0.22 | y | 288 | 355 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-16 18:22:59 | 0.19 | y | 412 | 74 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-16 18:23:13 | 0.12 | y | 520 | 78 | |
| IIEES | GIDE | Z | Pn | E | 2018-02-16 18:23:13 | -0.37 | y | 530 | 45 | |
| IIEES | THKV | Z | Pn | E | 2018-02-16 18:23:15 | 0.1 | y | 538 | 60 | |
| IIEES | CHTH | Z | Pn | E | 2018-02-16 18:23:17 | -0.24 | y | 557 | 61 | |
| IIEES | GRMI | Z | Pn | E | 2018-02-16 18:23:23 | -0.83 | y | 608 | 18 | |
| IIEES | MAKU | Z | Pn | E | 2018-02-16 18:23:28 | 0.16 | y | 643 | 352 |
