Magnitude |
2.8 |
| Date & Time (UTC) | 2018-02-16 20:15:39.2 |
| Date & Time (Local) | 1396/11/27 23:45:39.2 |

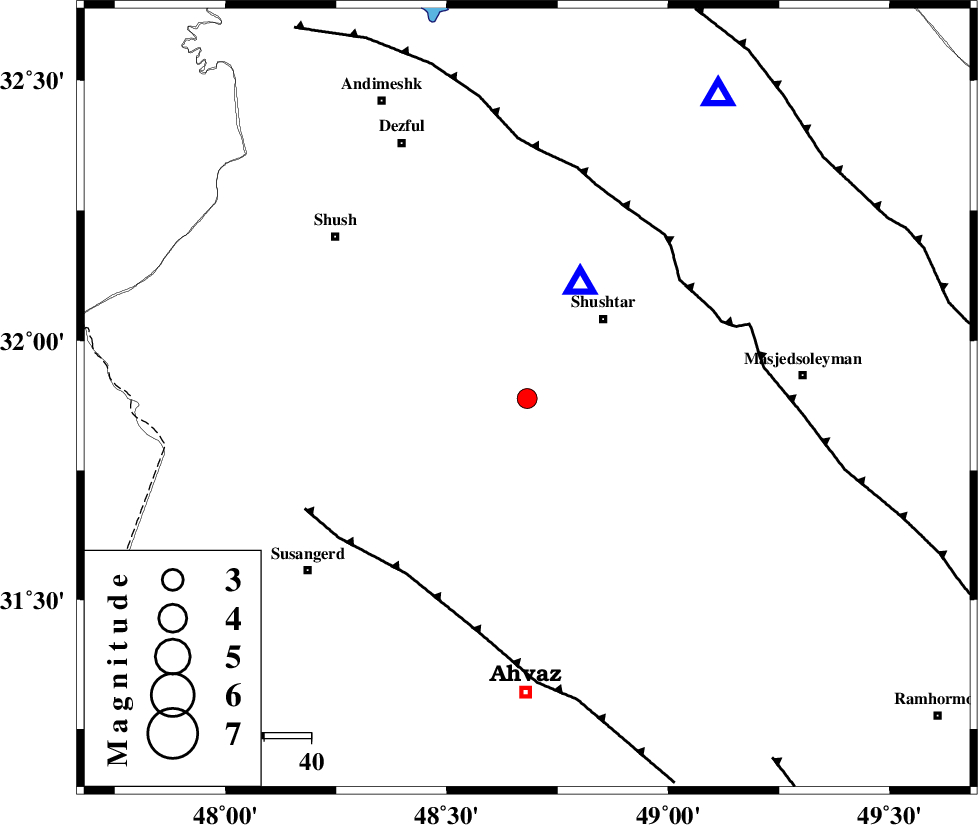

| Location | Lat:31.888 Lon: 48.681 |
| Region | Khoozestan Province, 24 km South-West of Shushtar |
Nearest Cities |
|
| 17 km West of Mehdiabad, Khoozestan Province | |
| 18 km South West of Sardarabad, Khoozestan Province | |
| 21 km North West of Arabhasan, Khoozestan Province | |
| 24 km South West of Shushtar, Khoozestan Province | |
| 29 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 41 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 81 km | |
| Number of Phases | 7 |
| RMS | 0.5 |
| Number of Stations | 7 |
| Error in Latitude | 6.9 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128594 | IIEES | ILBA | N | 58.6 | 0.31 | 2018-02-16 20:16:43 | 2018-02-17 07:21:00 | n |
| 128595 | IIEES | ILBA | E | 34.6 | 0.59 | 2018-02-16 20:16:48 | 2018-02-17 07:21:00 | n |
| 128596 | IIEES | GHVR | E | 10.7 | 0.61 | 2018-02-16 20:17:40 | 2018-02-17 07:21:00 | n |
| 128597 | IIEES | AHRM | N | 12.1 | 0.62 | 2018-02-16 20:17:54 | 2018-02-17 07:21:00 | n |
| 128598 | IIEES | AHRM | E | 8.6 | 0.62 | 2018-02-16 20:17:59 | 2018-02-17 07:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pn | E | 2018-02-16 20:16:24 | -0.18 | y | 301 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-16 20:16:27 | 0.39 | y | 321 | 23 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-16 20:16:34 | 0.7 | y | 374 | 39 | |
| IIEES | NASN | Z | Pn | E | 2018-02-16 20:16:36 | -0.8 | y | 401 | 74 | |
| IIEES | AHRM | Z | Pn | E | 2018-02-16 20:16:39 | 0.5 | y | 419 | 142 | |
| IIEES | YZKH | Z | Pn | E | 2018-02-16 20:16:56 | -0.58 | y | 560 | 83 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-16 20:16:56 | -0.3 | y | 566 | 329 |
