Magnitude |
2.9 |
| Date & Time (UTC) | 2018-02-16 07:11:03.3 |
| Date & Time (Local) | 1396/11/27 10:41:03.3 |

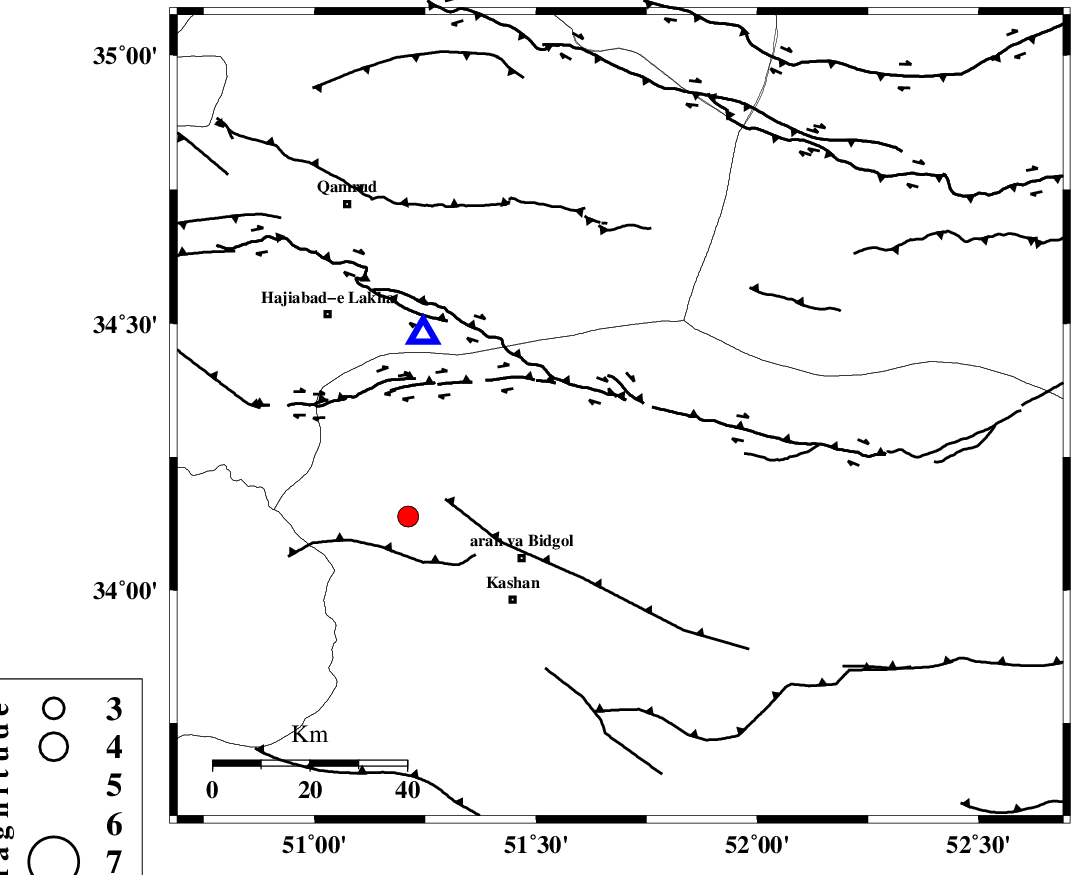

| Location | Lat:34.325 Lon: 51.69 |
| Region | Esfahan Province, 36 km North-East of Aran va bidgol |
Nearest Cities |
|
| 16 km North West of Marnejab, Esfahan Province | |
| 36 km North East of Aran va bidgol, Esfahan Province | |
| 38 km North East of Nasrabad, Esfahan Province | |
| 43 km North East of Mashgan, Esfahan Province | |
| 44 km North East of Kashan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KASHAN_F (Length: 44 km) , Distance to epicenter: 41 km | |
| SIAHKUH_F (Length: 154 km) , Distance to epicenter: 55 km | |
| ZEFREH_F (Length: 124 km) , Distance to epicenter: 60 km | |
| Number of Phases | 10 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 3.1 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 6.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128620 | IIEES | GHVR | N | 1558.6 | 0.16 | 2018-02-16 07:11:18 | 2018-02-17 07:21:00 | n |
| 128621 | IIEES | GHVR | E | 1691.3 | 0.12 | 2018-02-16 07:11:18 | 2018-02-17 07:21:00 | n |
| 128622 | IIEES | ASAO | N | 132.4 | 0.32 | 2018-02-16 07:11:49 | 2018-02-17 07:21:00 | n |
| 128623 | IIEES | ASAO | E | 152.4 | 0.36 | 2018-02-16 07:11:49 | 2018-02-17 07:21:00 | n |
| 128624 | IIEES | NASN | N | 75.5 | 0.11 | 2018-02-16 07:12:01 | 2018-02-17 07:21:00 | n |
| 128625 | IIEES | GIDE | N | 25.7 | 0.4 | 2018-02-16 07:12:55 | 2018-02-17 07:21:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHVR | Z | Pg | E | 2018-02-16 07:11:11 | 0.39 | y | 44.3 | 293 | |
| IIEES | ASAO | Z | Pg | E | 2018-02-16 07:11:29 | 0.07 | y | 155 | 280 | |
| IIEES | ASAO | N | Sg | E | 2018-02-16 07:11:47 | -0.01 | y | 155 | 280 | |
| IIEES | CHTH | Z | Pg | E | 2018-02-16 07:11:33 | -0.55 | y | 183 | 344 | |
| IIEES | THKV | Z | Pg | E | 2018-02-16 07:11:34 | -0.14 | y | 191 | 337 | |
| IIEES | NASN | Z | Pg | E | 2018-02-16 07:11:35 | -0.17 | y | 199 | 148 | |
| IIEES | GIDE | Z | Pn | E | 2018-02-16 07:11:52 | 0.06 | y | 330 | 331 | |
| IIEES | YZKH | Z | Pn | E | 2018-02-16 07:11:53 | -0.21 | y | 345 | 128 | |
| IIEES | SHRO | Z | Pn | E | 2018-02-16 07:12:05 | 0.49 | y | 436 | 63 | |
| IIEES | MRVT | Z | Pn | E | 2018-02-16 07:12:18 | 0.28 | y | 542 | 46 |
