Magnitude |
3.2 |
| Date & Time (UTC) | 2018-02-18 05:03:49.8 |
| Date & Time (Local) | 1396/11/29 08:33:49.8 |

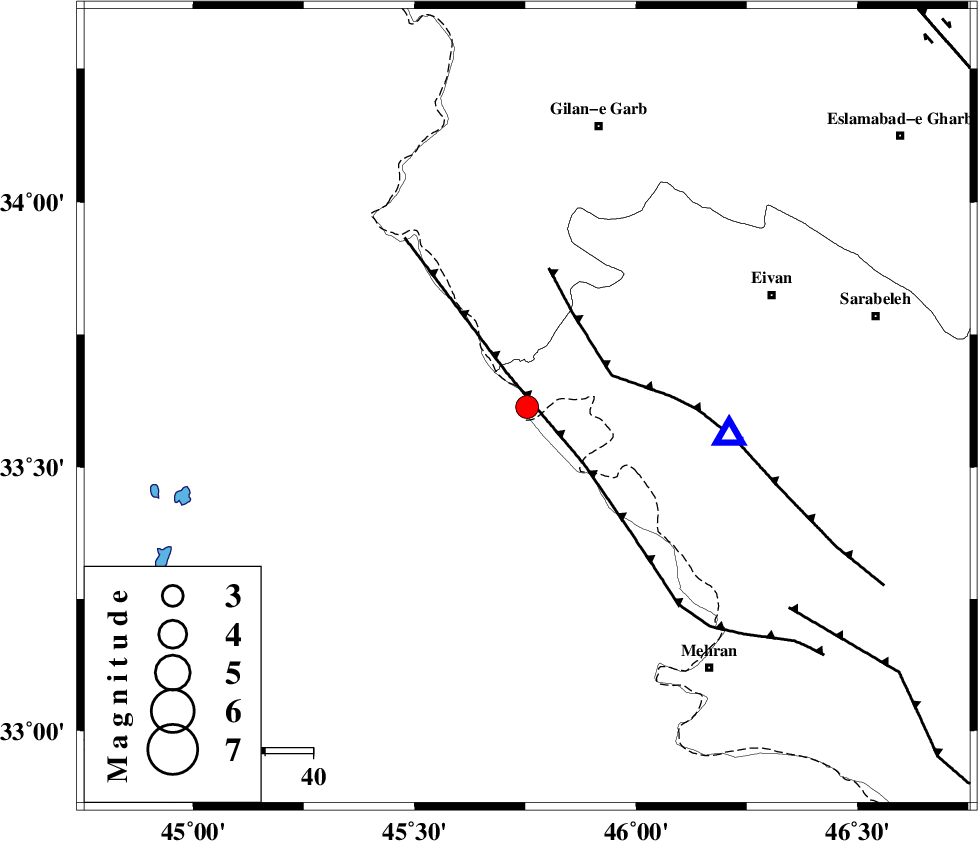

| Location | Lat:33.613 Lon: 45.754 |
| Region | Iraq, 61 km South-West of Gilan-E-Gharb |
Nearest Cities |
|
| 31 km South East of Sumar, Kermanshah Province | |
| 43 km North West of Salehabad, Ilam Province | |
| 48 km West of Chavar, Ilam Province | |
| 50 km South West of Nian, Kermanshah Province | |
| 51 km South West of Teran, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 8 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 19 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 69 km | |
| Number of Phases | 8 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | 4.1 km |
| Error in Longitude | 7.1 km |
| Error in Depth | 6.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128699 | IIEES | ILBA | N | 2926.8 | 0.32 | 2018-02-18 05:04:04 | 2018-02-18 08:19:00 | n |
| 128700 | IIEES | SNGE | N | 118.9 | 0.55 | 2018-02-18 05:04:54 | 2018-02-18 08:19:00 | n |
| 128701 | IIEES | SRSL | E | 98.1 | 0.5 | 2018-02-18 05:05:18 | 2018-02-18 08:19:00 | n |
| 128702 | IIEES | GHVR | E | 14.6 | 0.15 | 2018-02-18 05:06:00 | 2018-02-18 08:19:00 | n |
| 128703 | IIEES | GHVR | N | 9.7 | 0.31 | 2018-02-18 05:06:00 | 2018-02-18 08:19:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ILBA | Z | Pg | E | 2018-02-18 05:03:57 | -0.23 | y | 42.1 | 88 | |
| IIEES | ILBA | N | Sg | E | 2018-02-18 05:04:03 | 0.21 | y | 42.1 | 88 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-18 05:04:24 | -0.09 | y | 220 | 41 | |
| IIEES | SNGE | N | Sg | E | 2018-02-18 05:04:52 | -0.03 | y | 220 | 41 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-18 05:04:33 | 0.38 | y | 290 | 354 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-18 05:04:48 | 0.3 | y | 408 | 74 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-18 05:05:01 | -0.26 | y | 516 | 78 | |
| IIEES | GRMI | Z | Pn | E | 2018-02-18 05:05:12 | -0.52 | y | 608 | 18 |
