Magnitude |
3.3 |
| Date & Time (UTC) | 2018-02-24 16:34:59.6 |
| Date & Time (Local) | 1396/12/5 20:04:59.6 |

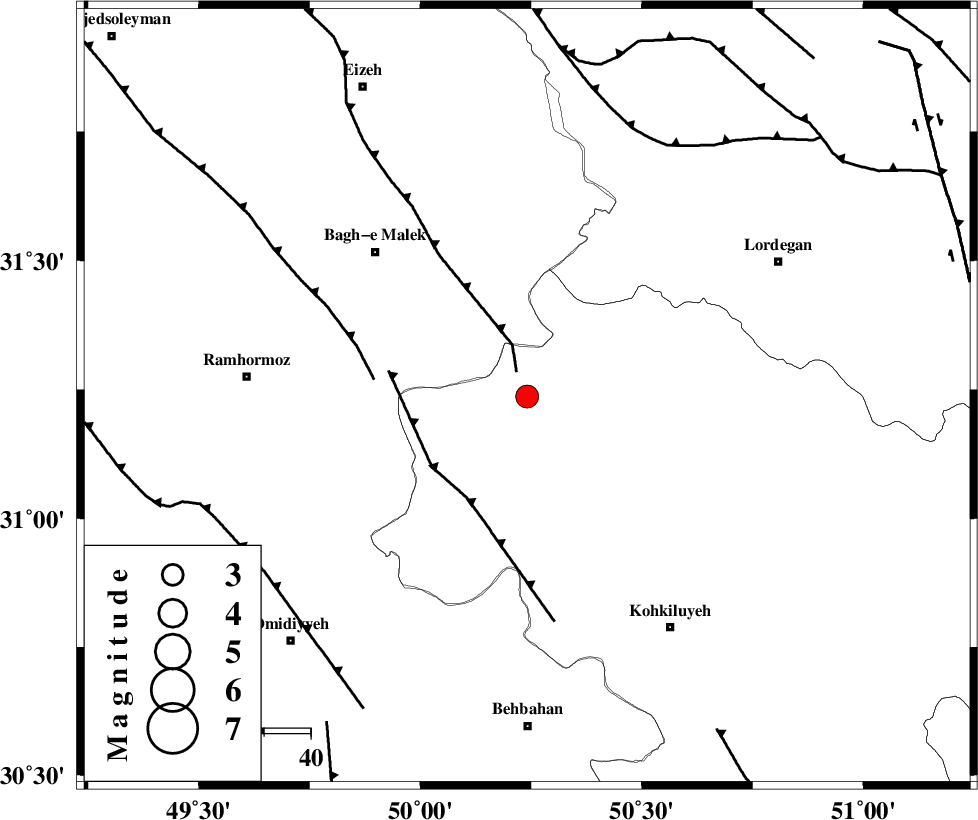

| Location | Lat:31.237 Lon: 50.241 |
| Region | Kohkiluieh va boyerahmad Province, 45 km South-East of Bagh Malek |
Nearest Cities |
|
| 7 km of Esfandan, Kohkiluieh va boyerahmad Province | |
| 16 km West of Dishmuk, Kohkiluieh va boyerahmad Province | |
| 20 km North West of Qale-ye raiesi, Kohkiluieh va boyerahmad Province | |
| 21 km South East of Seidun, Khoozestan Province | |
| 34 km North West of Lendeh, Kohkiluieh va boyerahmad Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF2 (Length: 205 km) , Distance to epicenter: 6 km | |
| MFF4 (Length: 62 km) , Distance to epicenter: 25 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 33 km | |
| Number of Phases | 12 |
| RMS | 1 |
| Number of Stations | 12 |
| Error in Latitude | 7.8 km |
| Error in Longitude | 6.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 128973 | IIEES | AHRM | E | 60.9 | 0.68 | 2018-02-24 16:36:35 | 2018-02-25 06:25:00 | n |
| 128974 | IIEES | AHRM | N | 121.9 | 0.85 | 2018-02-24 16:36:37 | 2018-02-25 06:25:00 | n |
| 128975 | IIEES | GHVR | E | 25.5 | 0.42 | 2018-02-24 16:37:00 | 2018-02-25 06:25:00 | n |
| 128976 | IIEES | ILBA | E | 66.7 | 0.44 | 2018-02-24 16:36:59 | 2018-02-25 06:25:00 | n |
| 128977 | IIEES | ILBA | N | 64.3 | 0.44 | 2018-02-24 16:37:15 | 2018-02-25 06:25:00 | n |
| 128978 | IIEES | SNGE | E | 15.3 | 0.29 | 2018-02-24 16:37:09 | 2018-02-25 06:25:00 | n |
| 128979 | IIEES | SNGE | N | 16 | 0.48 | 2018-02-24 16:37:21 | 2018-02-25 06:25:00 | n |
| 128980 | IIEES | DAMV | E | 12.9 | 0.51 | 2018-02-24 16:37:29 | 2018-02-25 06:25:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | AHRM | Z | Pn | E | 2018-02-24 16:35:43 | 1.38 | y | 282 | 159 | |
| IIEES | NASN | Z | Pn | E | 2018-02-24 16:35:45 | 0.59 | y | 298 | 54 | |
| IIEES | ASAO | Z | Pn | E | 2018-02-24 16:35:53 | 0.74 | y | 368 | 357 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-24 16:35:54 | 0.61 | y | 372 | 14 | |
| IIEES | GHIR | Z | Pn | E | 2018-02-24 16:35:58 | -0.71 | y | 421 | 140 | |
| IIEES | ILBA | Z | Pn | E | 2018-02-24 16:36:05 | 0.45 | y | 463 | 306 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-24 16:36:08 | -1.28 | y | 506 | 329 | |
| IIEES | DAMV | Z | Pn | E | 2018-02-24 16:36:10 | -0.45 | y | 513 | 18 | |
| IIEES | TABS | Z | Pn | E | 2018-02-24 16:36:33 | -0.37 | y | 700 | 66 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-24 16:36:34 | -0.95 | y | 709 | 322 | |
| IIEES | BNDS | Z | Pn | E | 2018-02-24 16:36:33 | -2.42 | y | 716 | 125 | |
| IIEES | SHRO | Z | Pn | E | 2018-02-24 16:36:40 | -0.03 | y | 753 | 44 |
