Magnitude |
3.3 |
| Date & Time (UTC) | 2018-02-27 18:07:39.2 |
| Date & Time (Local) | 1396/12/8 21:37:39.2 |

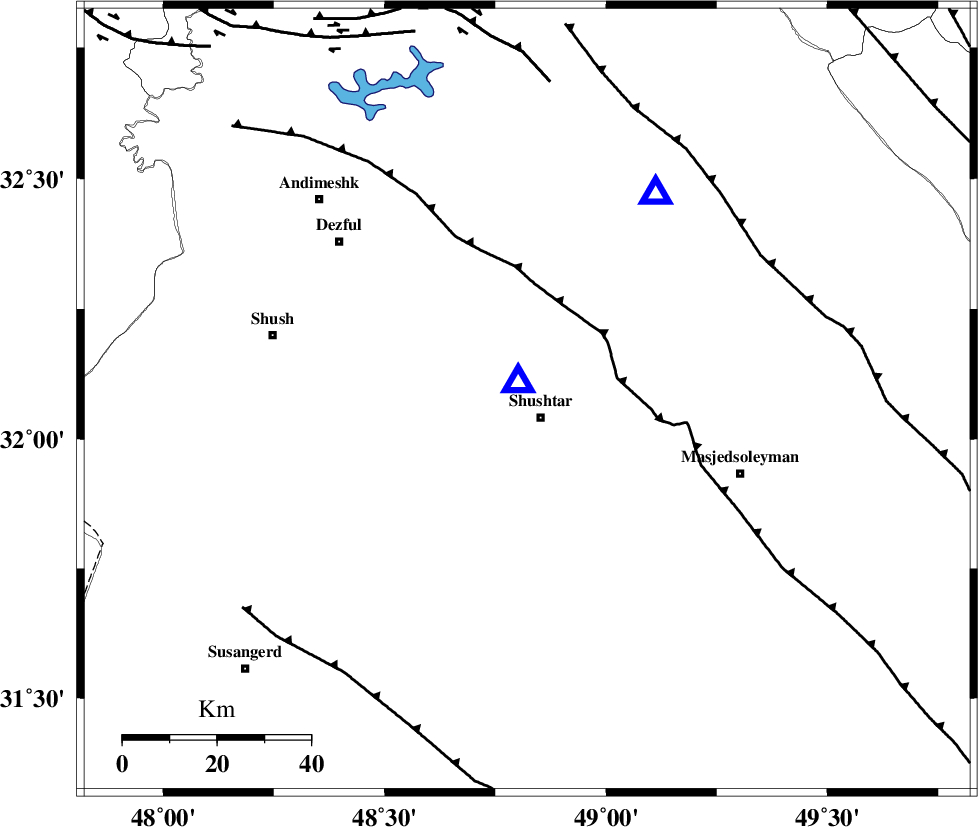

| Location | Lat:32.075 Lon: 48.822 |
| Region | Khoozestan Province, 5 km of Shushtar |
Nearest Cities |
|
| 5 km North of Shushtar, Khoozestan Province | |
| 7 km North of Sardarabad, Khoozestan Province | |
| 14 km South of Samaleh, Khoozestan Province | |
| 14 km North of Mehdiabad, Khoozestan Province | |
| 19 km South of Gatvand, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 20 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 58 km | |
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 68 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 4.2 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129057 | IIEES | ILBA | E | 91.1 | 0.42 | 2018-02-27 18:09:10 | 2018-02-28 07:24:00 | n |
| 129058 | IIEES | ILBA | N | 182.2 | 0.83 | 2018-02-27 18:09:11 | 2018-02-28 07:24:00 | n |
| 129059 | IIEES | GHVR | E | 31.9 | 0.64 | 2018-02-27 18:09:27 | 2018-02-28 07:24:00 | n |
| 129060 | IIEES | AHRM | N | 45.6 | 0.53 | 2018-02-27 18:09:27 | 2018-02-28 07:24:00 | n |
| 129061 | IIEES | AHRM | E | 53 | 0.39 | 2018-02-27 18:09:27 | 2018-02-28 07:24:00 | n |
| 129062 | IIEES | SRSL | E | 7.4 | 0.5 | 2018-02-27 18:09:57 | 2018-02-28 07:24:00 | n |
| 129063 | IIEES | SRSL | N | 9.9 | 0.56 | 2018-02-27 18:09:59 | 2018-02-28 07:24:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | ASAO | Z | Pn | E | 2018-02-27 18:08:24 | 0.31 | y | 296 | 22 | |
| IIEES | ILBA | Z | Pn | E | 2018-02-27 18:08:23 | -0.13 | y | 299 | 306 | |
| IIEES | GHVR | Z | Pn | E | 2018-02-27 18:08:30 | 0.44 | y | 349 | 40 | |
| IIEES | SNGE | Z | Pn | E | 2018-02-27 18:08:31 | -0.04 | y | 362 | 338 | |
| IIEES | NASN | Z | Pn | E | 2018-02-27 18:08:34 | 0.1 | y | 383 | 77 | |
| IIEES | AHRM | Z | Pn | E | 2018-02-27 18:08:39 | -0.02 | y | 428 | 146 | |
| IIEES | CHTH | Z | Pn | E | 2018-02-27 18:08:45 | -0.39 | y | 475 | 26 | |
| IIEES | DAMV | Z | Pn | E | 2018-02-27 18:08:47 | -0.74 | y | 490 | 36 | |
| IIEES | SRSL | Z | Pn | E | 2018-02-27 18:08:56 | 0.34 | y | 555 | 327 |
