Magnitude |
3.4 |
| Date & Time (UTC) | 2018-01-22 12:28:24.6 |
| Date & Time (Local) | 1396/11/2 15:58:24.6 |

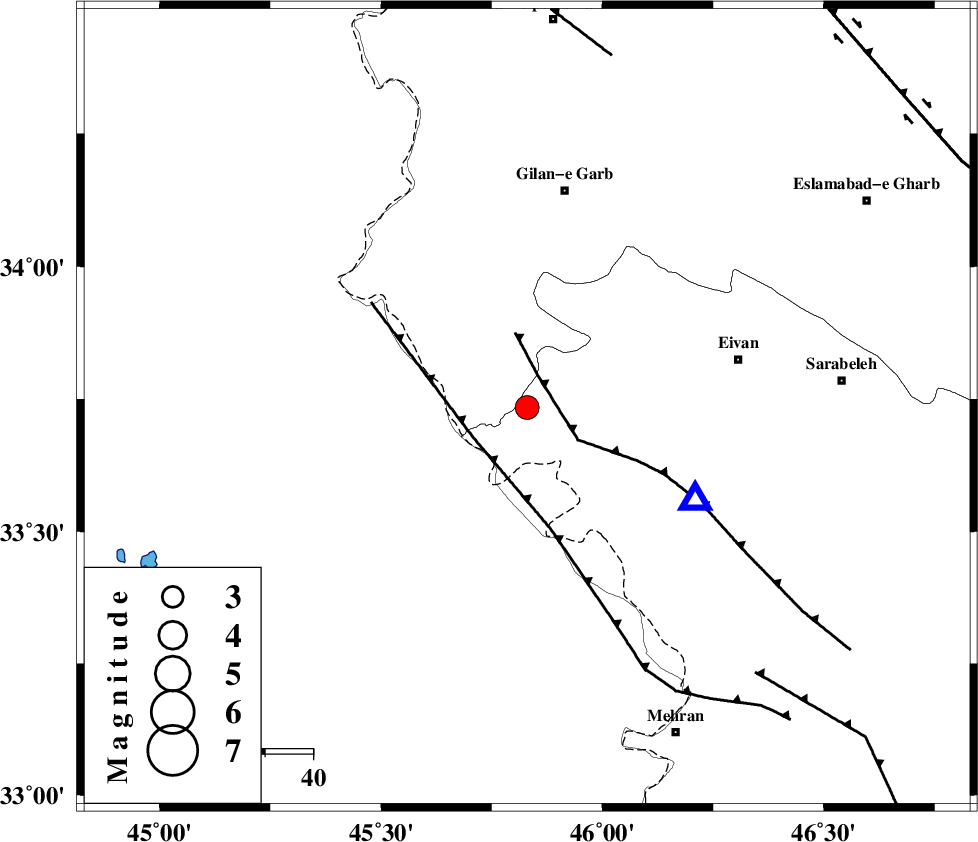

| Location | Lat:33.734 Lon: 45.83 |
| Region | Ilam Province, 46 km South of Gilan-E-Gharb |
Nearest Cities |
|
| 24 km South East of Sumar, Kermanshah Province | |
| 35 km South West of Nian, Kermanshah Province | |
| 37 km South West of Teran, Ilam Province | |
| 39 km South West of Zarneh, Ilam Province | |
| 41 km North West of Chavar, Ilam Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF7 (Length: 99 km) , Distance to epicenter: 7 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 13 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 73 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | 7.2 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129357 | IIEES | SNGE | N | 222.4 | 0.52 | 2018-01-22 12:29:27 | 2018-03-11 08:06:00 | n |
| 129358 | IIEES | SNGE | E | 241.2 | 0.52 | 2018-01-22 12:29:29 | 2018-03-11 08:06:00 | n |
| 129359 | IIEES | SRSL | N | 308.4 | 0.52 | 2018-01-22 12:29:50 | 2018-03-11 08:06:00 | n |
| 129360 | IIEES | SRSL | E | 199.9 | 0.63 | 2018-01-22 12:29:51 | 2018-03-11 08:06:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | SNGE | Z | Pn | E | 2018-01-22 12:28:57 | -0.05 | y | 205 | 42 | |
| IIEES | SRSL | Z | Pn | E | 2018-01-22 12:29:06 | 0.02 | y | 277 | 353 | |
| IIEES | KHMZ | Z | Pn | E | 2018-01-22 12:29:19 | -0.16 | y | 383 | 89 | |
| IIEES | ASAO | Z | Pn | E | 2018-01-22 12:29:22 | 0.25 | y | 397 | 76 | |
| IIEES | ZNJK | Z | Pn | E | 2018-01-22 12:29:24 | -0.05 | y | 417 | 38 | |
| IIEES | GHVR | Z | Pn | E | 2018-01-22 12:29:36 | 1.52 | n | 4 | 506 | 79 |
