Magnitude |
4 |
| Date & Time (UTC) | 2018-03-29 14:08:37.0 |
| Date & Time (Local) | 1397/1/9 18:38:37.0 |

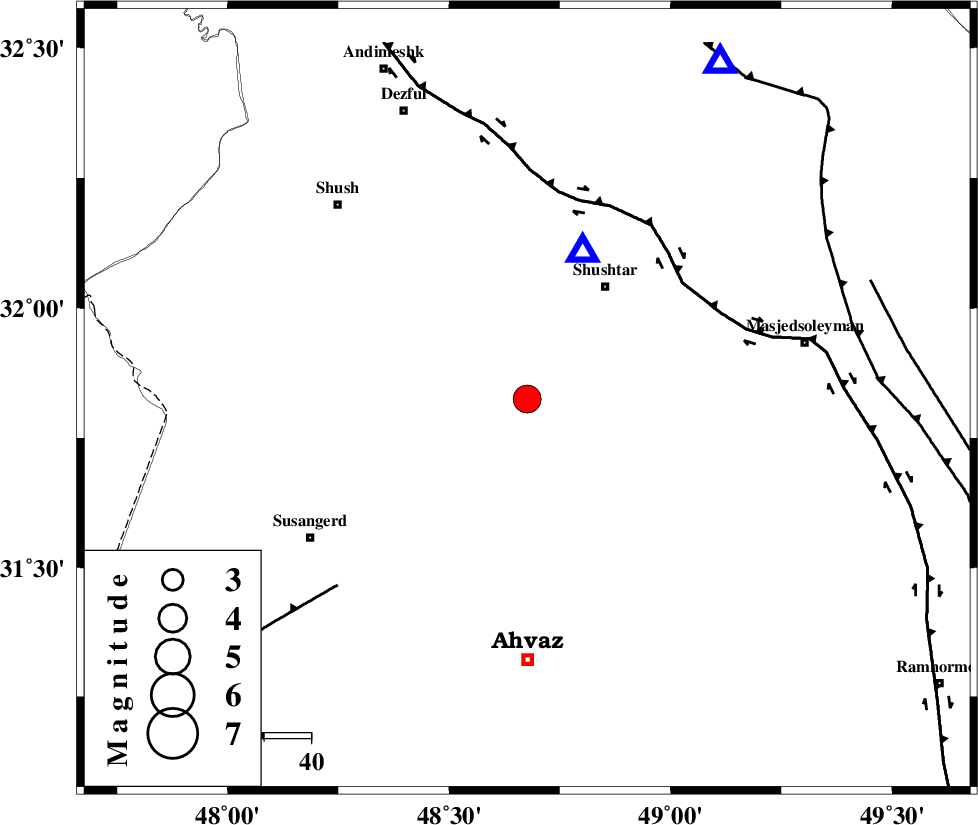

| Location | Lat:31.825 Lon: 48.676 |
| Region | Khoozestan Province, 29 km South-West of Shushtar |
Nearest Cities |
|
| 20 km West of Arabhasan, Khoozestan Province | |
| 21 km South West of Mehdiabad, Khoozestan Province | |
| 24 km South West of Sardarabad, Khoozestan Province | |
| 28 km East of Abdolkhan-eali, Khoozestan Province | |
| 29 km South West of Shushtar, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 40 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 86 km | |
| Number of Phases | 19 |
| RMS | 0.5 |
| Number of Stations | 16 |
| Error in Latitude | 3.6 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 9.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129829 | IIEES | ILBA | N | 558 | 0.65 | 2018-03-29 14:10:22 | 2018-04-03 10:44:00 | n |
| 129830 | IIEES | ILBA | E | 646.1 | 0.65 | 2018-03-29 14:10:23 | 2018-04-03 10:44:00 | n |
| 129831 | IIEES | ASAO | N | 449.7 | 0.83 | 2018-03-29 14:10:21 | 2018-04-03 10:44:00 | n |
| 129832 | IIEES | GHVR | E | 190.2 | 0.21 | 2018-03-29 14:10:26 | 2018-04-03 10:44:00 | n |
| 129833 | IIEES | AHRM | N | 147.1 | 0.6 | 2018-03-29 14:10:24 | 2018-04-03 10:44:00 | n |
| 129834 | IIEES | AHRM | E | 149.3 | 0.4 | 2018-03-29 14:10:56 | 2018-04-03 10:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-03-29 14:09:15 | -0.02 | y | 244 | 29 | |
| IIEES | KHMZ | E | Sg | E | 2018-03-29 14:09:45 | -0.54 | y | 244 | 29 | |
| IIEES | ILBA | Z | Pn | E | 2018-03-29 14:09:22 | -0.56 | y | 306 | 311 | |
| IIEES | ASAO | Z | Pn | E | 2018-03-29 14:09:26 | 0.85 | y | 327 | 22 | |
| IIEES | ASAO | E | S | E | 2018-03-29 14:10:00 | -0.11 | y | 327 | 22 | |
| IIEES | GHVR | Z | Pn | E | 2018-03-29 14:09:32 | 0.96 | y | 380 | 38 | |
| IIEES | SNGE | Z | Pn | E | 2018-03-29 14:09:32 | 0.39 | y | 383 | 342 | |
| IIEES | NASN | Z | Pn | E | 2018-03-29 14:09:35 | 0.47 | y | 404 | 73 | |
| IIEES | AHRM | Z | Pn | E | 2018-03-29 14:09:36 | 0 | y | 414 | 142 | |
| IIEES | CHTH | Z | Pn | E | 2018-03-29 14:09:47 | -0.23 | y | 506 | 26 | |
| IIEES | DAMV | Z | Pn | E | 2018-03-29 14:09:49 | -0.42 | y | 521 | 35 | |
| IIEES | YZKH | Z | Pn | E | 2018-03-29 14:09:54 | -0.02 | y | 562 | 82 | |
| IIEES | GHIR | Z | Pn | E | 2018-03-29 14:09:55 | -0.56 | y | 571 | 132 | |
| IIEES | KRBR | Z | Pn | E | 2018-03-29 14:10:23 | -0.35 | y | 799 | 103 | |
| IIEES | TABS | Z | Pn | E | 2018-03-29 14:10:26 | 0 | y | 817 | 73 | |
| IIEES | SHRO | Z | Pn | E | 2018-03-29 14:10:26 | -0.2 | y | 822 | 54 | |
| IIEES | BNDS | Z | Pn | E | 2018-03-29 14:10:31 | -1.93 | n | 4 | 876 | 122 |
| IIEES | BSRN | Z | Pn | E | 2018-03-29 14:10:47 | -0.58 | y | 988 | 86 | |
| IIEES | ZHSF | Z | Pn | E | 2018-03-29 14:11:12 | 0.13 | y | 1184 | 99 |
