Magnitude |
3.8 |
| Date & Time (UTC) | 2018-03-31 12:53:39.0 |
| Date & Time (Local) | 1397/1/11 17:23:39.0 |

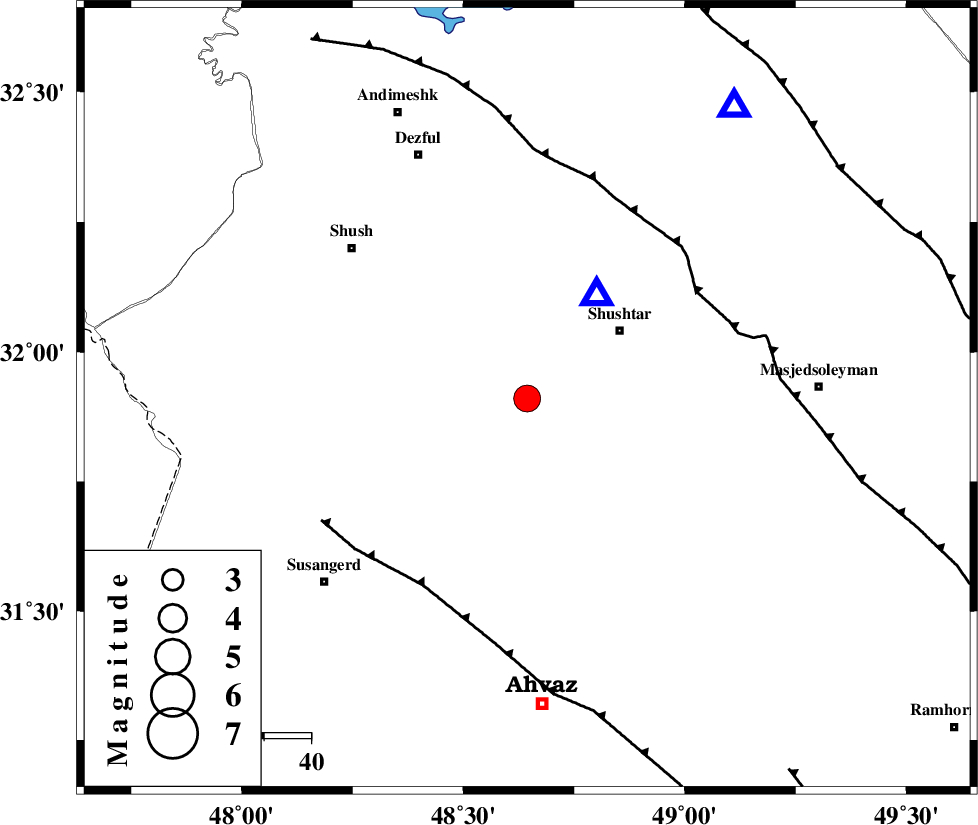

| Location | Lat:31.91 Lon: 48.644 |
| Region | Khoozestan Province, 25 km South-West of Shushtar |
Nearest Cities |
|
| 18 km South West of Sardarabad, Khoozestan Province | |
| 19 km West of Mehdiabad, Khoozestan Province | |
| 25 km South West of Shushtar, Khoozestan Province | |
| 25 km North West of Arabhasan, Khoozestan Province | |
| 26 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 43 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 46 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 83 km | |
| Number of Phases | 19 |
| RMS | 0.4 |
| Number of Stations | 17 |
| Error in Latitude | 4.7 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129846 | IIEES | KHMZ | N | 559.2 | 0.91 | 2018-03-31 12:54:52 | 2018-04-03 10:44:00 | n |
| 129847 | IIEES | ASAO | N | 299.6 | 0.43 | 2018-03-31 12:55:13 | 2018-04-03 10:44:00 | n |
| 129848 | IIEES | ASAO | E | 219.4 | 0.48 | 2018-03-31 12:55:14 | 2018-04-03 10:44:00 | n |
| 129849 | IIEES | GHVR | E | 111.6 | 0.46 | 2018-03-31 12:55:44 | 2018-04-03 10:44:00 | n |
| 129850 | IIEES | AHRM | N | 57.4 | 0.54 | 2018-03-31 12:55:49 | 2018-04-03 10:44:00 | n |
| 129851 | IIEES | GIDE | N | 88.9 | 0.8 | 2018-03-31 12:56:35 | 2018-04-03 10:44:00 | n |
| 129852 | IIEES | GIDE | E | 45.8 | 0.69 | 2018-03-31 12:56:45 | 2018-04-03 10:44:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-03-31 12:54:16 | 0.2 | y | 238 | 31 | |
| IIEES | KHMZ | E | Sg | E | 2018-03-31 12:54:45 | -0.51 | y | 238 | 31 | |
| IIEES | ILBA | Z | Pn | E | 2018-03-31 12:54:23 | -0.44 | y | 297 | 310 | |
| IIEES | ILBA | N | Sg | E | 2018-03-31 12:55:02 | -0.09 | y | 297 | 310 | |
| IIEES | ASAO | Z | Pn | E | 2018-03-31 12:54:27 | 0.54 | y | 320 | 23 | |
| IIEES | SNGE | Z | Pn | E | 2018-03-31 12:54:33 | 0.17 | y | 373 | 341 | |
| IIEES | GHVR | Z | Pn | E | 2018-03-31 12:54:34 | 0.83 | y | 374 | 40 | |
| IIEES | NASN | Z | Pn | E | 2018-03-31 12:54:37 | 0.1 | y | 404 | 75 | |
| IIEES | AHRM | Z | Pn | E | 2018-03-31 12:54:39 | 0.01 | y | 423 | 142 | |
| IIEES | THKV | Z | Pn | E | 2018-03-31 12:54:47 | 0.13 | y | 490 | 24 | |
| IIEES | CHTH | Z | Pn | E | 2018-03-31 12:54:48 | -0.32 | y | 499 | 27 | |
| IIEES | DAMV | Z | Pn | E | 2018-03-31 12:54:51 | 0.16 | y | 515 | 36 | |
| IIEES | YZKH | Z | Pn | E | 2018-03-31 12:54:56 | -0.74 | y | 564 | 83 | |
| IIEES | GIDE | Z | Pn | E | 2018-03-31 12:54:57 | 0.15 | y | 568 | 11 | |
| IIEES | GRMI | Z | Pn | E | 2018-03-31 12:55:22 | 0.06 | y | 768 | 355 | |
| IIEES | TABS | Z | Pn | E | 2018-03-31 12:55:27 | -0.84 | y | 817 | 74 | |
| IIEES | SHRO | Z | Pn | E | 2018-03-31 12:55:28 | 0.46 | y | 819 | 54 | |
| IIEES | MAKU | Z | Pn | E | 2018-03-31 12:55:38 | -0.01 | y | 900 | 338 | |
| IIEES | BSRN | Z | Pn | E | 2018-03-31 12:55:49 | -0.54 | y | 991 | 87 |
