Magnitude |
3.2 |
| Date & Time (UTC) | 2018-04-06 19:14:13.5 |
| Date & Time (Local) | 1397/1/17 23:44:13.5 |
| Location | Lat:38.845 Lon: 44.043 |
| Region | Turkey, 40 km South-West of Seyah Cheshmah |
Nearest Cities |
|
| 29 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 33 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 40 km South West of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| 42 km South West of Zavieh, Azarbaijan Gharbi Province | |
| 44 km North West of Zarabad, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |

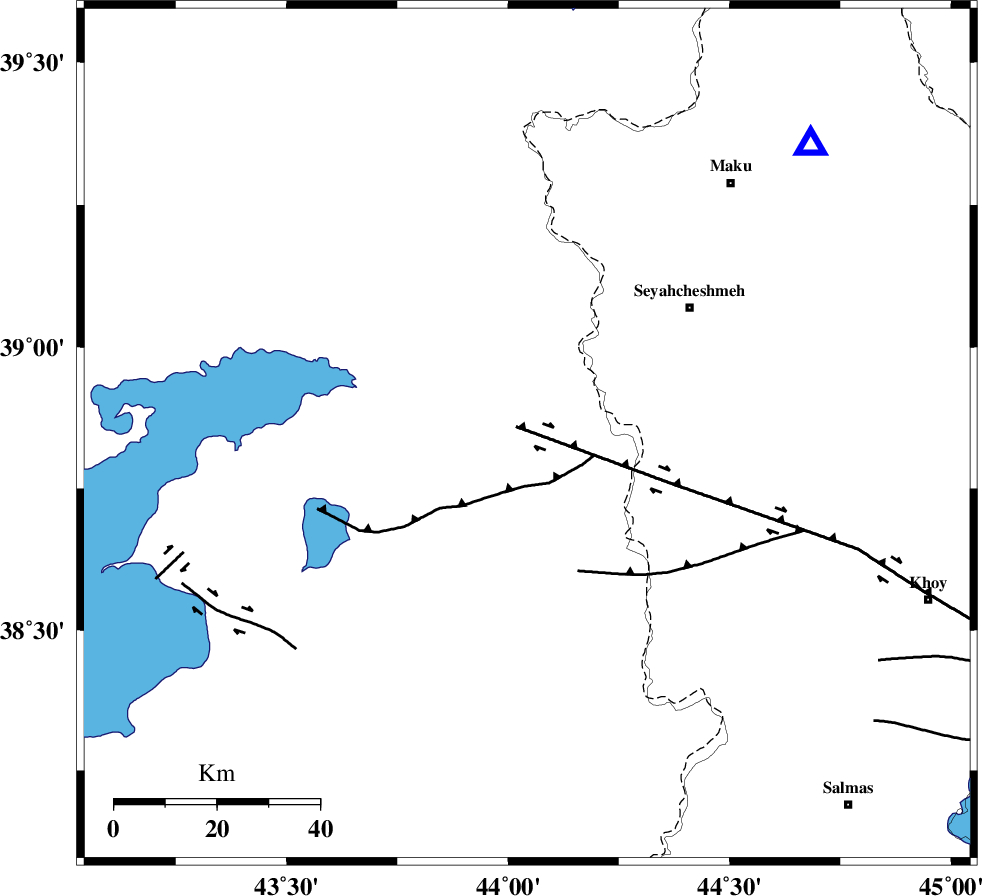

Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 23 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 83 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 94 km | |
| Number of Phases | 9 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | 2 km |
| Error in Longitude | 9 km |
| Error in Depth | 5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129975 | IIEES | GIDE | N | 10.6 | 0.76 | 2018-04-06 19:16:29 | 2018-04-07 06:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | MAKU | Z | Pg | E | 2018-04-06 19:14:26 | -0.38 | y | 79.2 | 44 | |
| IIEES | MAKU | N | Sg | E | 2018-04-06 19:14:37 | 0.18 | y | 79.2 | 44 | |
| IIEES | SRSL | Z | Pn | E | 2018-04-06 19:15:00 | 0.18 | y | 317 | 157 | |
| IIEES | SRSL | E | Sg | E | 2018-04-06 19:15:42 | -0.13 | y | 317 | 157 | |
| IIEES | GRMI | Z | Pn | E | 2018-04-06 19:15:03 | 0.18 | y | 334 | 89 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-06 19:15:24 | 0 | y | 510 | 144 | |
| IIEES | GIDE | Z | Pn | E | 2018-04-06 19:15:30 | 0 | y | 558 | 111 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-06 19:15:37 | 0.16 | y | 611 | 161 | |
| IIEES | CHTH | Z | Pn | E | 2018-04-06 19:15:49 | -0.2 | y | 707 | 115 |
