Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-06 20:36:34.7 |
| Date & Time (Local) | 1397/1/18 01:06:34.7 |
| Location | Lat:38.188 Lon: 46.463 |
| Region | Azarbaijan Sharghi Province, 20 km North-East of Tabriz |
Nearest Cities |
|
| 11 km North West of Khvajeh, Azarbaijan Sharghi Province | |
| 14 km East of Yangi esperan, Azarbaijan Sharghi Province | |
| 18 km South West of Sarand, Azarbaijan Sharghi Province | |
| 20 km North East of Tabriz, Azarbaijan Sharghi Province | |
| 22 km North of Basmanj, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |

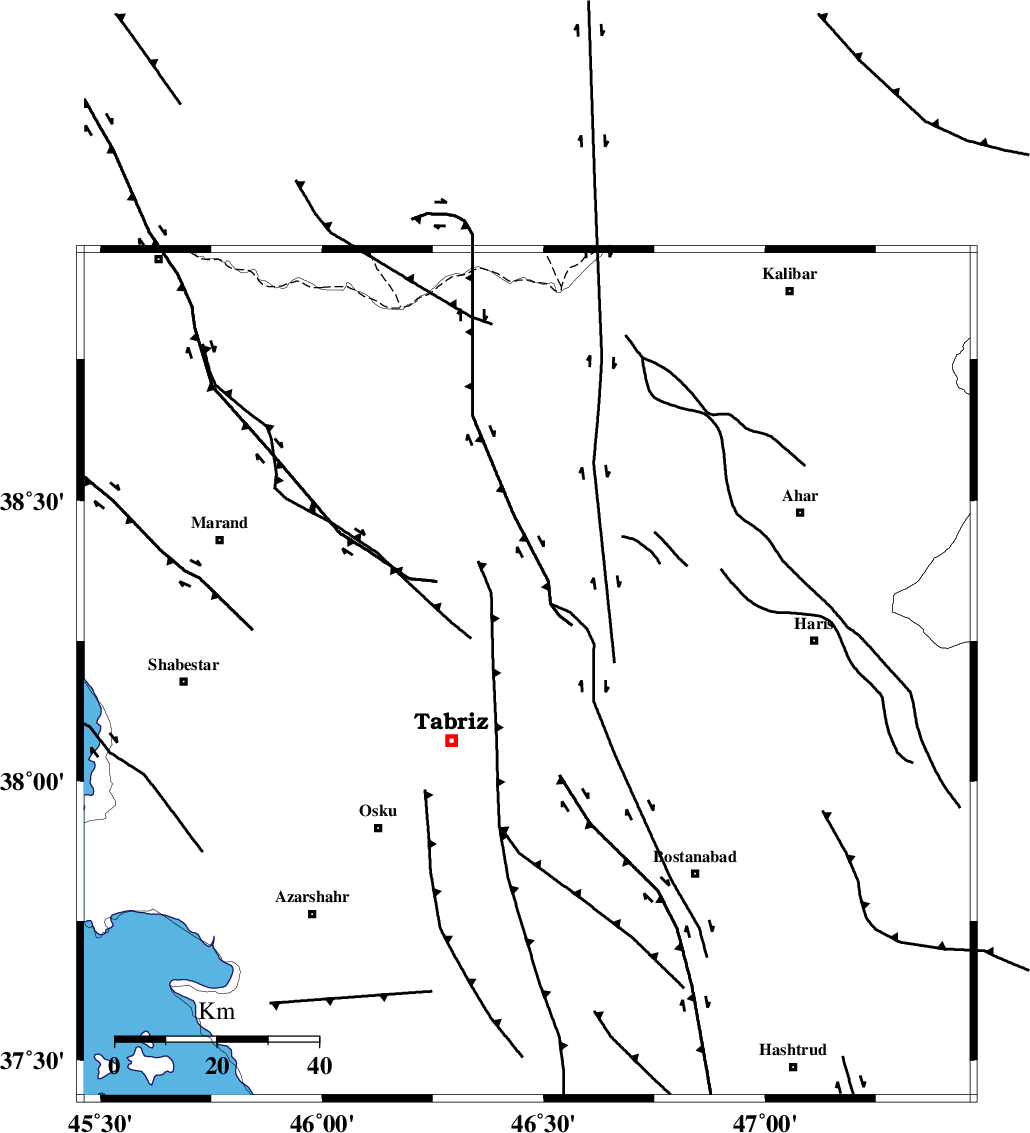

Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 16 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 43 km | |
| BOZQUSH (Length: 70 km) , Distance to epicenter: 82 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 3 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 129976 | IIEES | GRMI | E | 155.8 | 0.38 | 2018-04-06 20:37:19 | 2018-04-07 06:38:00 | n |
| 129977 | IIEES | MAKU | N | 78.2 | 0.57 | 2018-04-06 20:37:36 | 2018-04-07 06:38:00 | n |
| 129978 | IIEES | SRSL | E | 153.6 | 0.38 | 2018-04-06 20:37:44 | 2018-04-07 06:38:00 | n |
| 129979 | IIEES | SRSL | N | 166.6 | 0.54 | 2018-04-06 20:37:44 | 2018-04-07 06:38:00 | n |
| 129980 | IIEES | GIDE | E | 45 | 0.54 | 2018-04-06 20:38:14 | 2018-04-07 06:38:00 | n |
| 129981 | IIEES | GIDE | N | 51 | 0.62 | 2018-04-06 20:38:18 | 2018-04-07 06:38:00 | n |
| 129982 | IIEES | THKV | E | 28.3 | 0.57 | 2018-04-06 20:38:54 | 2018-04-07 06:38:00 | n |
| 129983 | IIEES | THKV | N | 20.3 | 0.75 | 2018-04-06 20:38:56 | 2018-04-07 06:38:00 | n |
| 129984 | IIEES | CHTH | N | 6.9 | 0.62 | 2018-04-06 20:38:59 | 2018-04-07 06:38:00 | n |
| 129985 | IIEES | ILBA | N | 9.3 | 0.8 | 2018-04-06 20:39:14 | 2018-04-07 06:38:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GRMI | Z | Pg | E | 2018-04-06 20:36:57 | -0.66 | y | 143 | 61 | |
| IIEES | GRMI | N | Sg | E | 2018-04-06 20:37:15 | 0.13 | y | 143 | 61 | |
| IIEES | MAKU | Z | Pn | E | 2018-04-06 20:37:07 | 0.1 | y | 202 | 311 | |
| IIEES | SRSL | Z | Pn | E | 2018-04-06 20:37:12 | 0.28 | y | 237 | 203 | |
| IIEES | SRSL | N | Sg | E | 2018-04-06 20:37:41 | -0.48 | y | 237 | 203 | |
| IIEES | GIDE | Z | Pn | E | 2018-04-06 20:37:24 | -0.02 | y | 335 | 114 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-06 20:37:26 | 0.19 | y | 352 | 167 | |
| IIEES | THKV | Z | Pn | E | 2018-04-06 20:37:46 | 5.51 | n | 4 | 467 | 121 |
| IIEES | CHTH | Z | Pn | E | 2018-04-06 20:37:43 | 0.22 | y | 486 | 120 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-06 20:37:45 | 0.25 | y | 507 | 183 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-06 20:37:46 | 0.26 | y | 515 | 141 |
