Magnitude |
2.7 |
| Date & Time (UTC) | 2018-04-04 20:16:36.5 |
| Date & Time (Local) | 1397/1/16 00:46:36.5 |

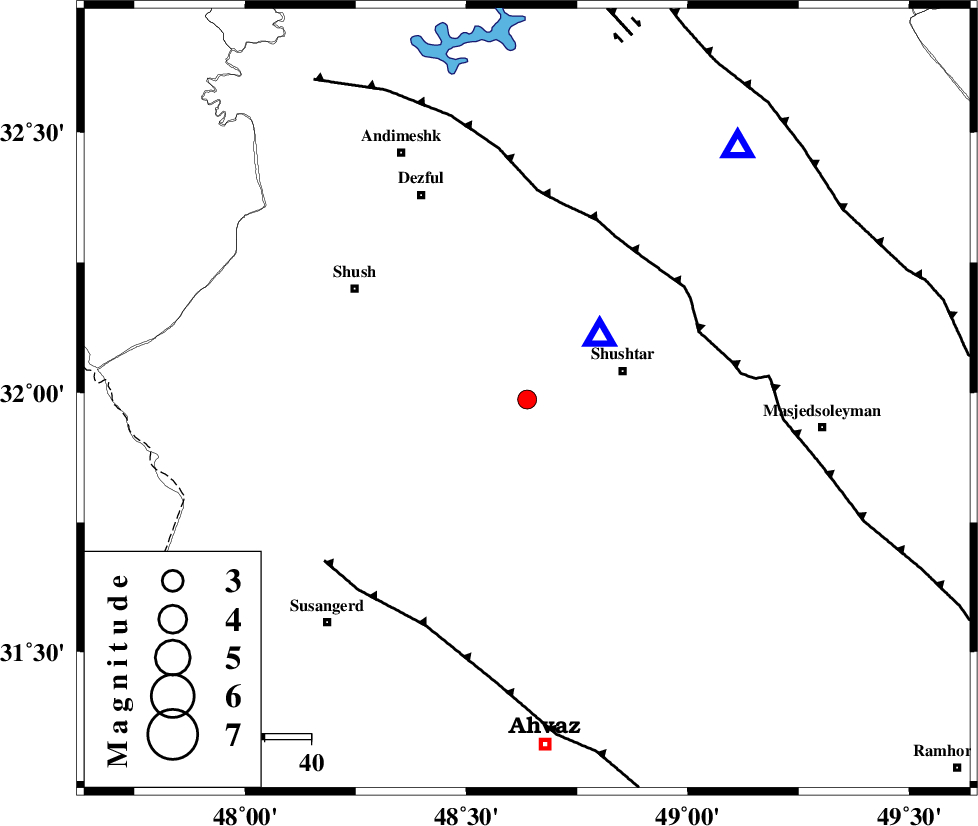

| Location | Lat:31.987 Lon: 48.637 |
| Region | Khoozestan Province, 21 km -West of Shushtar |
Nearest Cities |
|
| 15 km West of Sardarabad, Khoozestan Province | |
| 20 km North West of Mehdiabad, Khoozestan Province | |
| 21 km West of Shushtar, Khoozestan Province | |
| 30 km North West of Arabhasan, Khoozestan Province | |
| 30 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 39 km | |
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 53 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 78 km | |
| Number of Phases | 11 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 5.2 km |
| Error in Longitude | 3 km |
| Error in Depth | 9.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 130003 | IIEES | KHMZ | E | 36.8 | 0.57 | 2018-04-04 20:17:53 | 2018-04-07 08:22:00 | n |
| 130004 | IIEES | ILBA | E | 24.1 | 0.26 | 2018-04-04 20:18:06 | 2018-04-07 08:22:00 | n |
| 130005 | IIEES | ILBA | N | 33.2 | 0.52 | 2018-04-04 20:18:11 | 2018-04-07 08:22:00 | n |
| 130006 | IIEES | ASAO | N | 23.6 | 0.71 | 2018-04-04 20:18:12 | 2018-04-07 08:22:00 | n |
| 130007 | IIEES | ASAO | E | 17.3 | 0.5 | 2018-04-04 20:18:17 | 2018-04-07 08:22:00 | n |
| 130008 | IIEES | GHVR | E | 12.4 | 0.92 | 2018-04-04 20:18:34 | 2018-04-07 08:22:00 | n |
| 130009 | IIEES | SRSL | E | 2.8 | 0.39 | 2018-04-04 20:18:53 | 2018-04-07 08:22:00 | n |
| 130010 | IIEES | SRSL | N | 6.3 | 0.39 | 2018-04-04 20:18:54 | 2018-04-07 08:22:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-04-04 20:17:13 | 0.55 | y | 231 | 32 | |
| IIEES | KHMZ | E | Sg | E | 2018-04-04 20:17:41 | -0.27 | y | 231 | 32 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-04 20:17:20 | 0.07 | y | 291 | 309 | |
| IIEES | ILBA | N | Sg | E | 2018-04-04 20:17:58 | -0.09 | y | 291 | 309 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-04 20:17:23 | 0.16 | y | 312 | 24 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-04 20:17:29 | -0.01 | y | 365 | 341 | |
| IIEES | GHVR | Z | Pn | E | 2018-04-04 20:17:30 | 0.17 | y | 368 | 41 | |
| IIEES | NASN | Z | Pn | E | 2018-04-04 20:17:33 | -0.62 | y | 403 | 76 | |
| IIEES | SRSL | Z | Pn | E | 2018-04-04 20:17:52 | -0.28 | y | 554 | 329 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-04 20:17:54 | 0.47 | y | 563 | 84 | |
| IIEES | GHIR | Z | Pn | E | 2018-04-04 20:17:56 | -0.29 | y | 586 | 133 |
