Magnitude |
3.3 |
| Date & Time (UTC) | 2018-04-16 19:13:32.7 |
| Date & Time (Local) | 1397/1/27 23:43:32.7 |

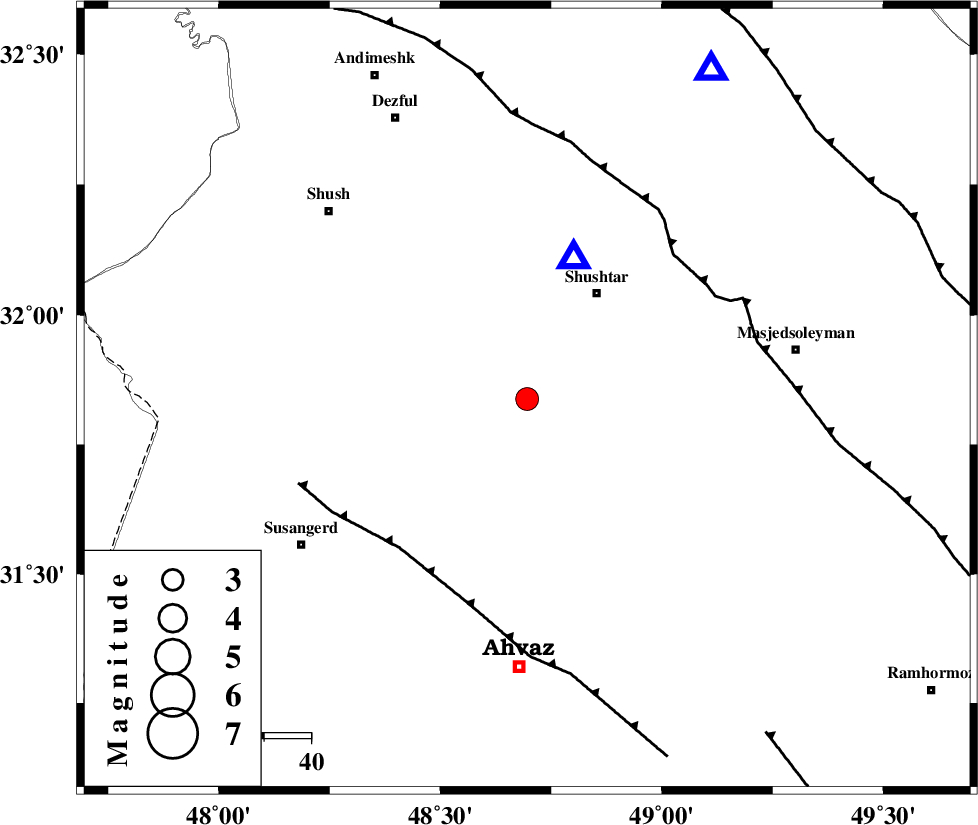

| Location | Lat:31.838 Lon: 48.696 |
| Region | Khoozestan Province, 27 km South-West of Shushtar |
Nearest Cities |
|
| 18 km South West of Mehdiabad, Khoozestan Province | |
| 19 km North West of Arabhasan, Khoozestan Province | |
| 22 km South of Sardarabad, Khoozestan Province | |
| 27 km South West of Shushtar, Khoozestan Province | |
| 30 km North East of Abdolkhan-eali, Khoozestan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| AHVAZ_F (Length: 99 km) , Distance to epicenter: 42 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 44 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 84 km | |
| Number of Phases | 9 |
| RMS | 0.3 |
| Number of Stations | 9 |
| Error in Latitude | 3.7 km |
| Error in Longitude | 2.3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 130372 | IIEES | ILBA | E | 105.4 | 0.73 | 2018-04-16 19:15:13 | 2018-04-17 04:05:00 | n |
| 130373 | IIEES | ILBA | N | 126.3 | 0.41 | 2018-04-16 19:15:16 | 2018-04-17 04:05:00 | n |
| 130374 | IIEES | ASAO | E | 53.9 | 0.5 | 2018-04-16 19:15:23 | 2018-04-17 04:05:00 | n |
| 130375 | IIEES | GHVR | E | 40.8 | 0.77 | 2018-04-16 19:15:33 | 2018-04-17 04:05:00 | n |
| 130376 | IIEES | SNGE | N | 32.4 | 0.41 | 2018-04-16 19:15:14 | 2018-04-17 04:05:00 | n |
| 130377 | IIEES | AHRM | E | 31.4 | 0.45 | 2018-04-16 19:15:36 | 2018-04-17 04:05:00 | n |
| 130378 | IIEES | AHRM | N | 24.9 | 0.64 | 2018-04-16 19:15:55 | 2018-04-17 04:05:00 | n |
| 130379 | IIEES | DAMV | E | 11 | 0.67 | 2018-04-16 19:15:40 | 2018-04-17 04:05:00 | n |
| 130380 | IIEES | SRSL | N | 24.7 | 0.39 | 2018-04-16 19:15:52 | 2018-04-17 04:05:00 | n |
| 130381 | IIEES | SRSL | E | 21.9 | 0.45 | 2018-04-16 19:15:52 | 2018-04-17 04:05:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | KHMZ | Z | Pn | E | 2018-04-16 19:14:10 | 0.11 | y | 242 | 29 | |
| IIEES | ILBA | Z | Pn | E | 2018-04-16 19:14:18 | -0.06 | y | 306 | 311 | |
| IIEES | ASAO | Z | Pn | E | 2018-04-16 19:14:21 | 0.25 | y | 325 | 22 | |
| IIEES | GHVR | Z | Pn | E | 2018-04-16 19:14:27 | 0.2 | y | 377 | 38 | |
| IIEES | SNGE | Z | Pn | E | 2018-04-16 19:14:28 | 0.29 | y | 382 | 341 | |
| IIEES | AHRM | Z | Pn | E | 2018-04-16 19:14:31 | 0.09 | y | 414 | 142 | |
| IIEES | DAMV | Z | Pn | E | 2018-04-16 19:14:44 | -0.72 | y | 519 | 35 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-16 19:14:49 | -0.14 | y | 560 | 82 | |
| IIEES | SRSL | Z | Pn | E | 2018-04-16 19:14:51 | -0.34 | y | 571 | 329 |
