Magnitude |
3.1 |
| Date & Time (UTC) | 2018-04-23 01:00:31.6 |
| Date & Time (Local) | 1397/2/3 05:30:31.6 |

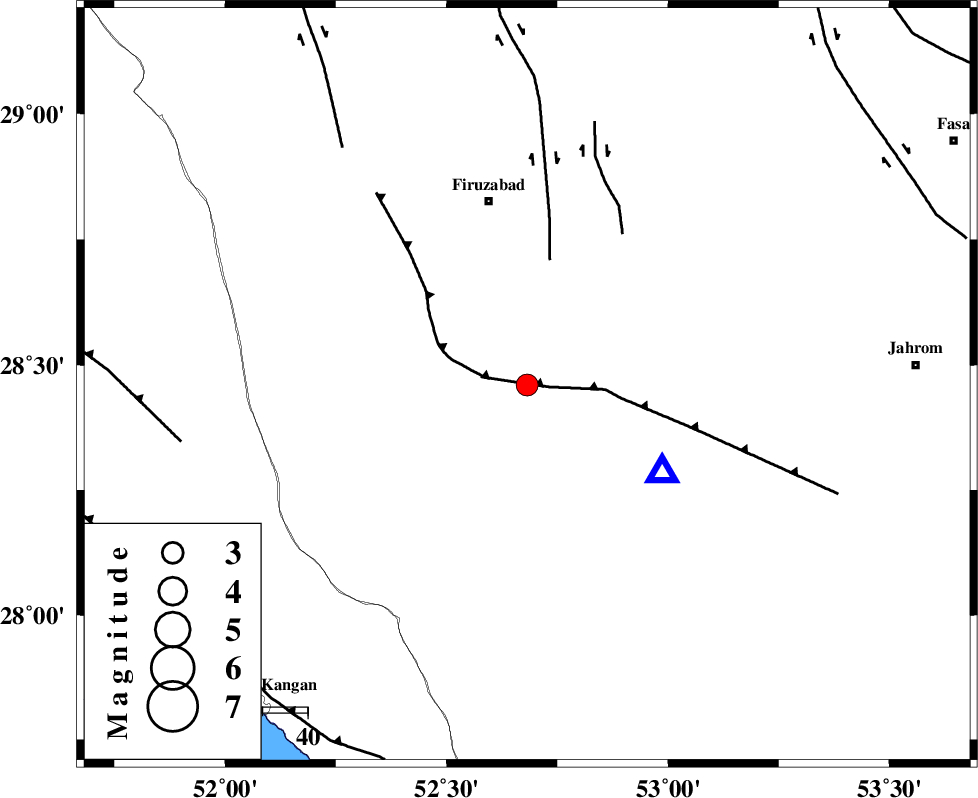

| Location | Lat:28.46 Lon: 52.682 |
| Region | Fars Province, 34 km -West of Qir va Karzin |
Nearest Cities |
|
| 11 km North of Hengam, Fars Province | |
| 33 km South of Jaydasht, Fars Province | |
| 34 km West of Qir va Karzin, Fars Province | |
| 37 km East of Dahrom, Fars Province | |
| 38 km South West of Duzeh, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 5 km | |
| SABZ_PUSHAN_F_Z1 (Length: 69 km) , Distance to epicenter: 28 km | |
| SABZ_PUSHAN_F_Z2 (Length: 24 km) , Distance to epicenter: 39 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | 5.6 km |
| Error in Longitude | 2.4 km |
| Error in Depth | 8.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
|---|---|---|---|---|---|---|---|---|
| 130652 | IIEES | AHRM | N | 371.1 | 0.66 | 2018-04-23 01:01:16 | 2018-04-23 05:40:00 | n |
| 130653 | IIEES | AHRM | E | 260 | 0.33 | 2018-04-23 01:01:18 | 2018-04-23 05:40:00 | n |
Phase
| Agency | Station | Component | Phase Type | Phase Quality | Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth |
|---|---|---|---|---|---|---|---|---|---|---|
| IIEES | GHIR | Z | Pg | E | 2018-04-23 01:00:38 | -0.15 | y | 35.6 | 123 | |
| IIEES | AHRM | Z | Pg | E | 2018-04-23 01:00:55 | 0.36 | y | 143 | 289 | |
| IIEES | AHRM | N | Sg | E | 2018-04-23 01:01:12 | -0.34 | y | 143 | 289 | |
| IIEES | KRBR | Z | Pn | E | 2018-04-23 01:01:33 | 0.47 | y | 431 | 66 | |
| IIEES | KRBR | E | Sg | E | 2018-04-23 01:02:31 | -0.34 | y | 431 | 66 | |
| IIEES | YZKH | Z | Pn | E | 2018-04-23 01:01:38 | 0.06 | y | 473 | 22 |
